XPON 4GE AC WIFI USB ONU Manufacturing Company
Overview
● 4G+WIFI+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
● 4G+WIFI+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 4G+WIFI+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 4G+WIFI+USB are compliant with IEEE802.11n STD, adopts with 4x4 MIMO, the highest rate up to 1200Mbps.
● 4G+WIFI+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+USB with EasyMesh function can easily realize the whole house network.
● 4G+WIFI+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 4G+WIFI+USB are designed by Realtek chipset 9607C.
Product Feature and model list
|
ONU Model |
CX51141R07C |
CX51041R07C |
CX50141R07C |
CX50041R07C |
|
Feature |
4G CATV VOIP 2.4/5GWIFI USB |
4G CATV 2.4/5GWIFI USB |
4G VOIP 2.4/5GWIFI USB |
4G 2.4/5GWIFI USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management..
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
| USB Interface |
standard USB2.0 |
| WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| LED |
10 LED, PWR, LOS,PON, LAN1~LAN4, 5G,2.4G |
| Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance

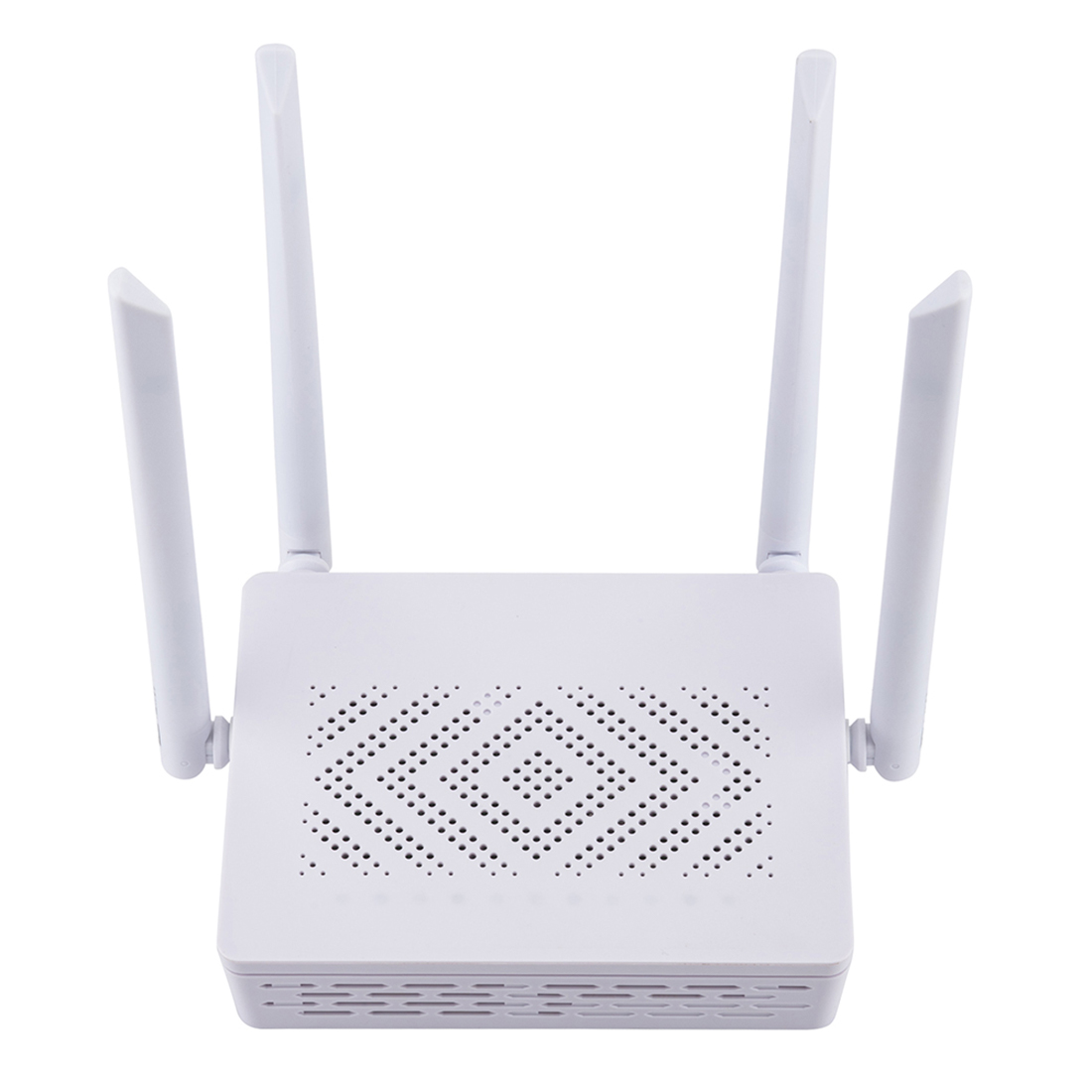

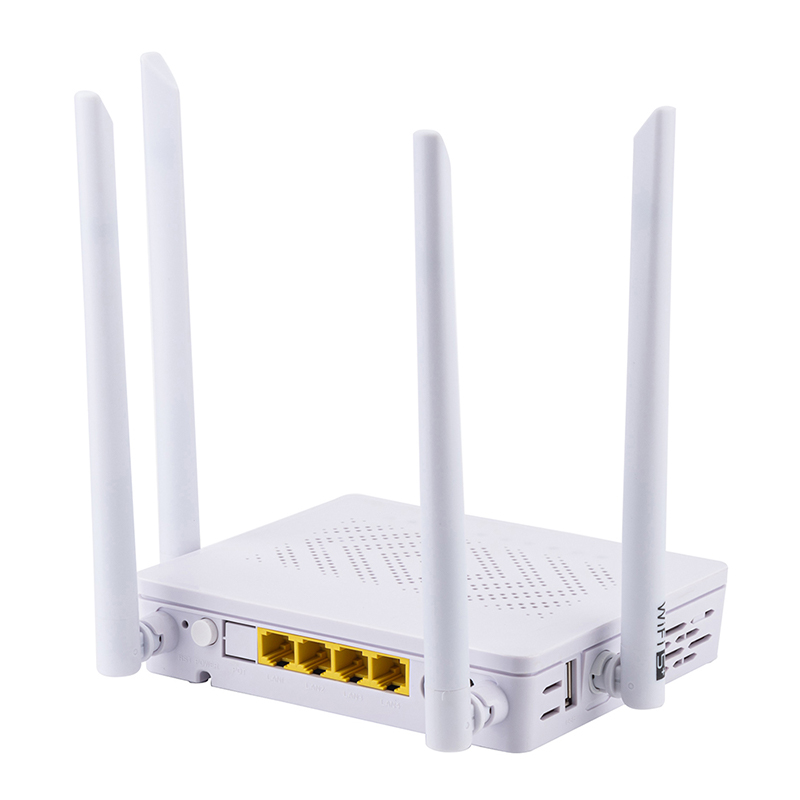

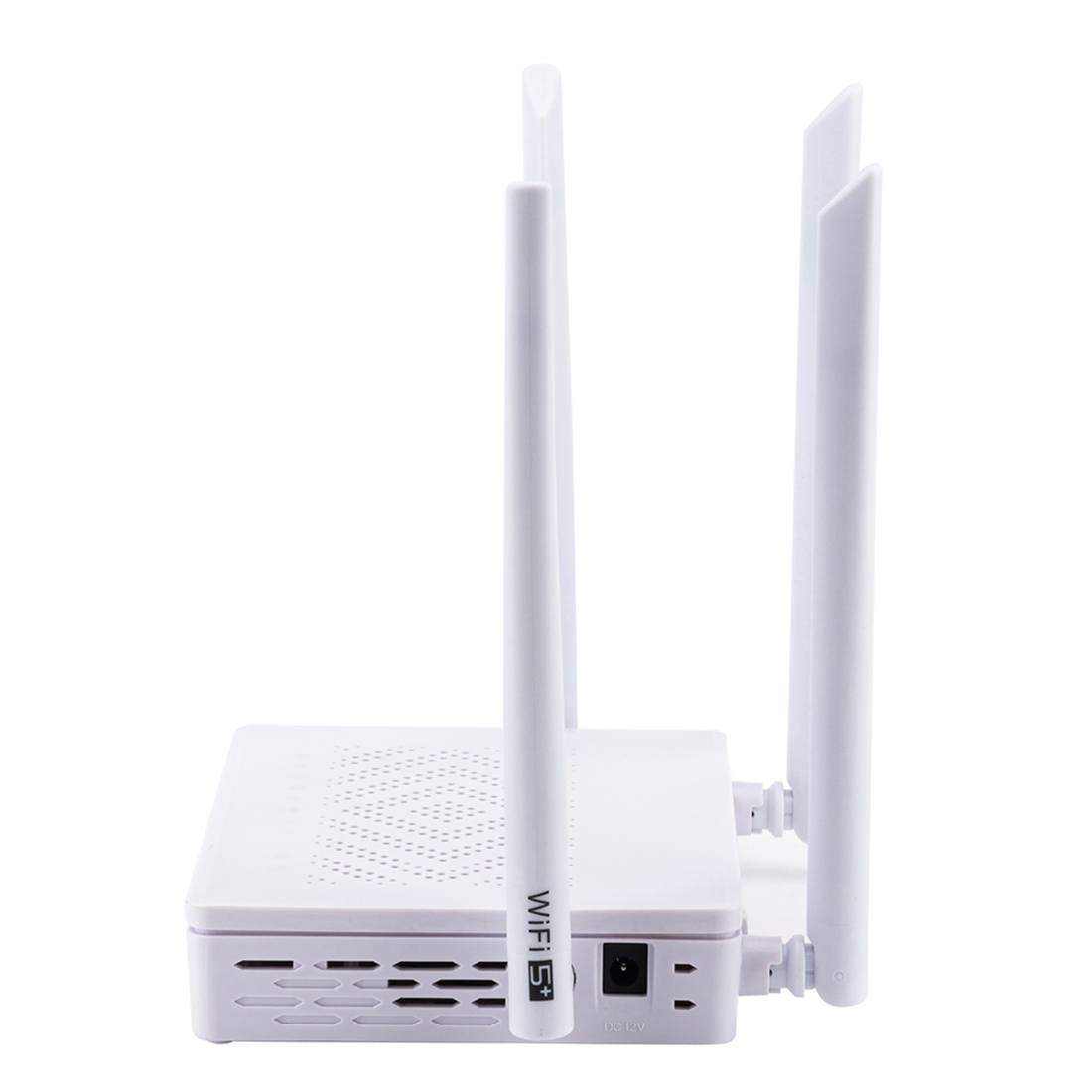

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 4GE AC WIFI USB ONU |
CX50041R07C |
4*10/100/1000M, 1 PON interface, , built-in FWDM, 1 RF interface,1 USB port, support WIFI 5G&2.4G, plastic casing, external power supply adapter |
FAQ
Q1. Can XPON ONU perform NAT public network conversion?
A: Yes, XPON ONU can perform NAT public network translation. This feature allows seamless integration between private and public networks, enabling smooth communication between devices.
Q2. What protocols does XPON ONU support?
A: XPON ONU supports various protocols, such as IGMP, Telnet, HTTP, HTTPS and IEEE802.3ah, etc. These protocols ensure efficient and secure communication and network traffic management.
Q3. What are the firewall levels provided by XPON ONU?
A: XPON ONU provides three firewall levels: L1, L2 and L3. These levels provide varying degrees of security and can be configured according to specific network requirements. Firewalls prevent unauthorized access and help maintain network integrity.
Q4. How to use XPON ONU as a router?
A: The ETH WAN port of XPON ONU can be used as a router function, allowing a secure and stable Internet connection to be established. This feature enables users to connect multiple devices to a network and share an internet connection.
Q5. What are the Wi-Fi functions of XPON ONU?
A: XPON ONU is equipped with dual-band Wi-Fi, providing 2.4GHz and 5.8GHz frequency bands. The 2.4GHz band provides a Wi-Fi rate of up to 300Mbps, while the 5.8GHz band provides a Wi-Fi rate of up to 1200Mbps. This ensures high-speed, reliable wireless connectivity for a wide variety of devices.
