Overview
●4GE+WIFI+CATV+POTs+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
●4GE+WIFI+CATV+POTs+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
●4GE+WIFI+CATV+POTs+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 4GE+WIFI+CATV+POTs+USB are compliant with IEEE802.11n STD, adopts with 4x4 MIMO, the highest rate up to 1200Mbps.
● 4GE+WIFI+CATV+POTs+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+CATV+POTs+USB are designed by ZTE chip set 279128S.
Product Feature and model list
|
ONU Model |
CX51141Z28S |
CX51041Z28S |
CX50141Z28S |
CX50041Z28S |
|
Feature |
4G CATV VOIP 2.4/5GWIFI USB |
4G CATV 2.4/5GWIFI USB |
4G VOIP 2.4/5GWIFI USB |
4G 2.4/5GWIFI USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support CATV interface for Video Service and remote control by Major OLT
> Support SIP Protocol for VoIP Service
> Integrated line testing compliant with GR-909 on POTS
> Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
> Support IPv4/IPv6 dual stack
> Support IGMP transparent/snooping/proxy
> In compliant with IEEE802.3ah standard
> Compatible with popular OLT(HW, ZTE, FiberHome...)
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
|
USB Interface |
Standard USB2.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
|
CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
12 LED, PWR, LOS,PON, LAN1~LAN4, 5G,2.4G, normal (CATV), FXS |
|
Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<6W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
|
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

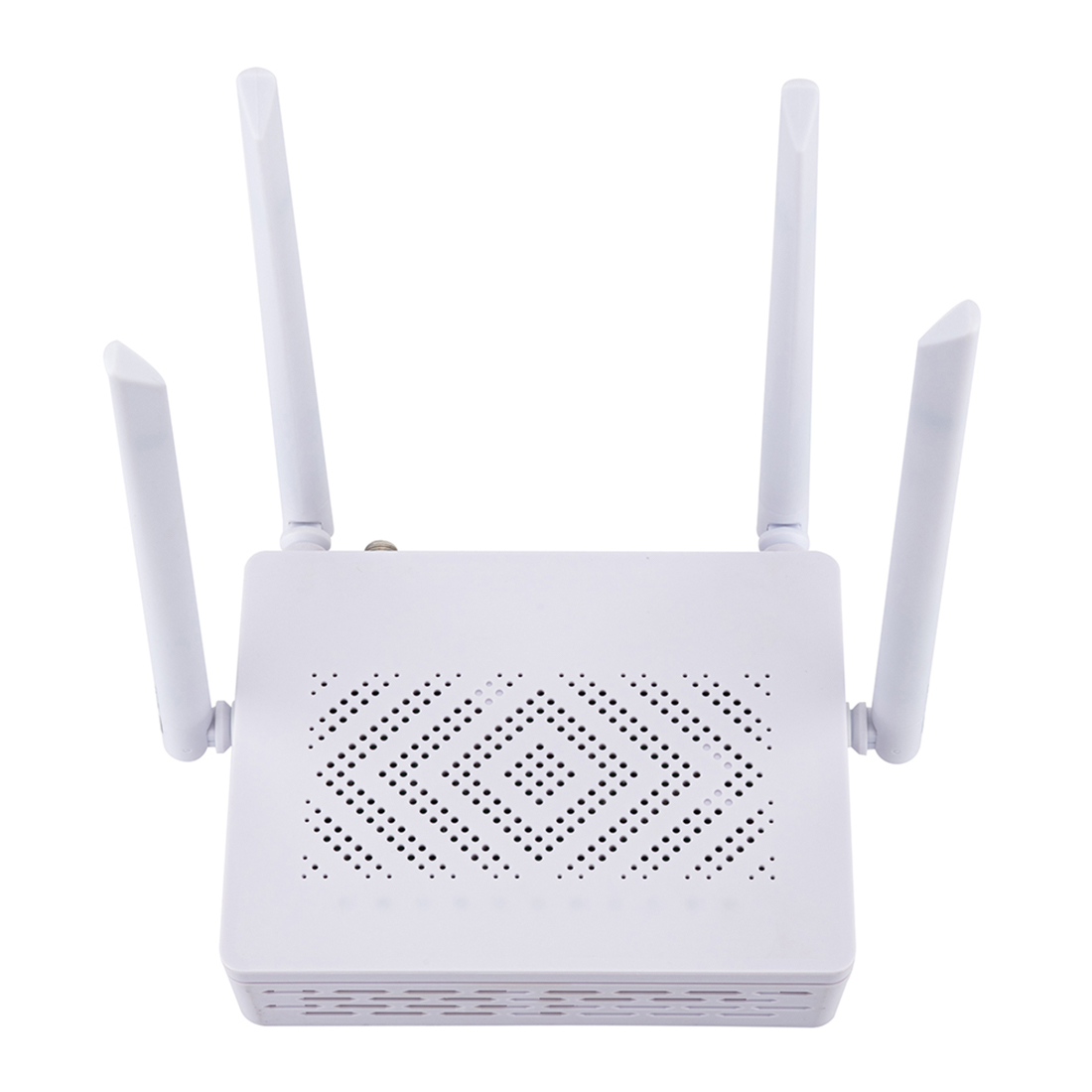

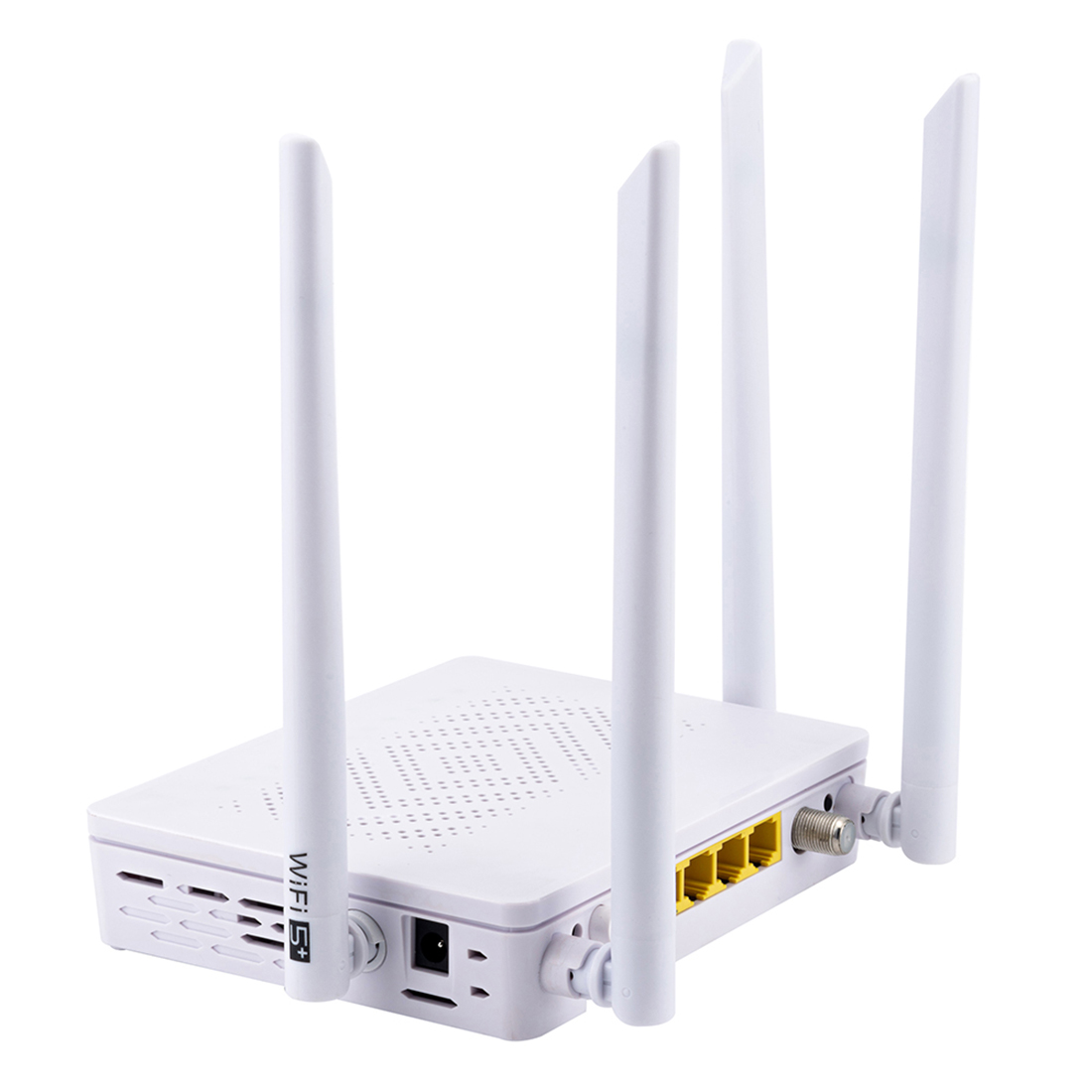

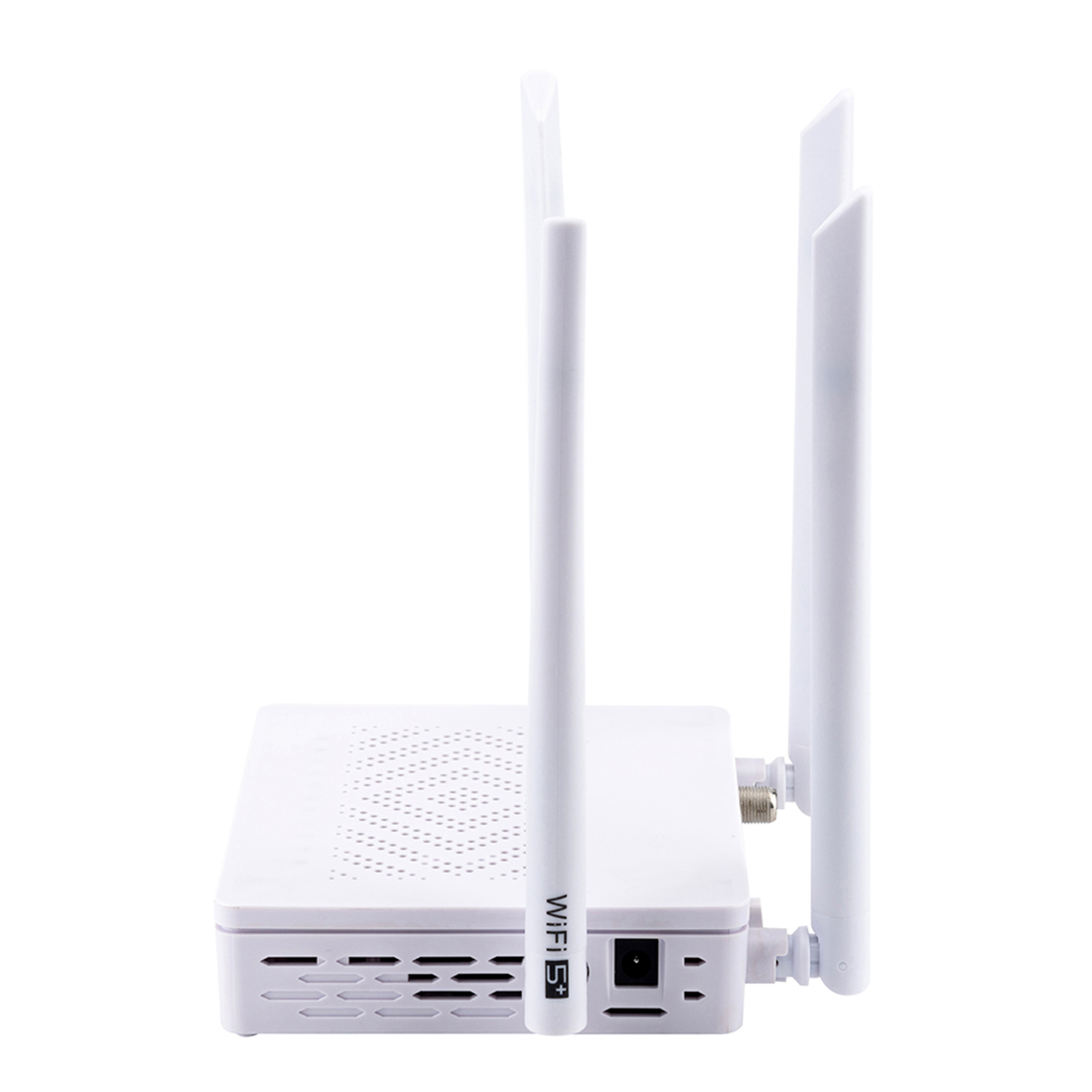

Product Appearance
Product Advantage
» XPON 4GE AC WIFI POT USB ONU adopts the latest 4G, WIFI, POT and USB technology, based on mature and stable XPON technology, ensuring cost-effectiveness without compromising performance. This multifunctional device can be easily switched between EPON and GPON modes, which allows easy integration with EPON OLT or GPON OLT.
» XPON 4GE AC WIFI POT USB ONU provides excellent Quality of Service (QoS) guarantee with its high reliability, easy management and configuration flexibility. This ensures you experience an uninterrupted data connection and optimal performance during all your online activities.
» The device's 4G capability enables fast mobile data access, ideal for users who require a reliable mobile internet connection. Built-in WIFI functionality allows you to easily connect wireless devices to your network, providing seamless Internet access throughout your home or office.
» In addition, XPON 4GE AC WIFI POTs USB ONU is equipped with POT and USB ports, which further expands its functions. The POT port lets you connect an analog phone for voice communication, while the USB port provides a convenient way to connect and share files with compatible devices.
