XPON 4G AC WIFI CATV USB ONU
Overview
● 4G+WIFI+CATV+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
● 4G+WIFI+CATV+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 4G+WIFI+CATV+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 4G+WIFI+CATV+USB are compliant with IEEE802.11n STD, adopts with 4x4 MIMO, the highest rate up to 1200Mbps.
● 4G+WIFI+CATV+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+CATV+USB with EasyMesh function can easily realize the whole house network.
● 4G+WIFI+CATV+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 4G+WIFI+CATV+USB are designed by Realtek chipset 9607C.
Product Feature and model list
|
ONU Model |
CX51141R07C |
CX51041R07C |
CX50141R07C |
CX50041R07C |
|
Feature |
4G CATV VOIP 2.4/5GWIFI USB |
4G CATV 2.4/5GWIFI USB |
4G VOIP 2.4/5GWIFI USB |
4G 2.4/5GWIFI USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support CATV interface for Video Service and remote control by Major OLT
> Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
> Support IGMP transparent/snooping/proxy.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
| USB Interface |
standard USB2.0 |
| WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED |
11 LED, PWR, LOS,PON, LAN1~LAN4, 5G,2.4G, normal (CATV), |
| Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV etc.

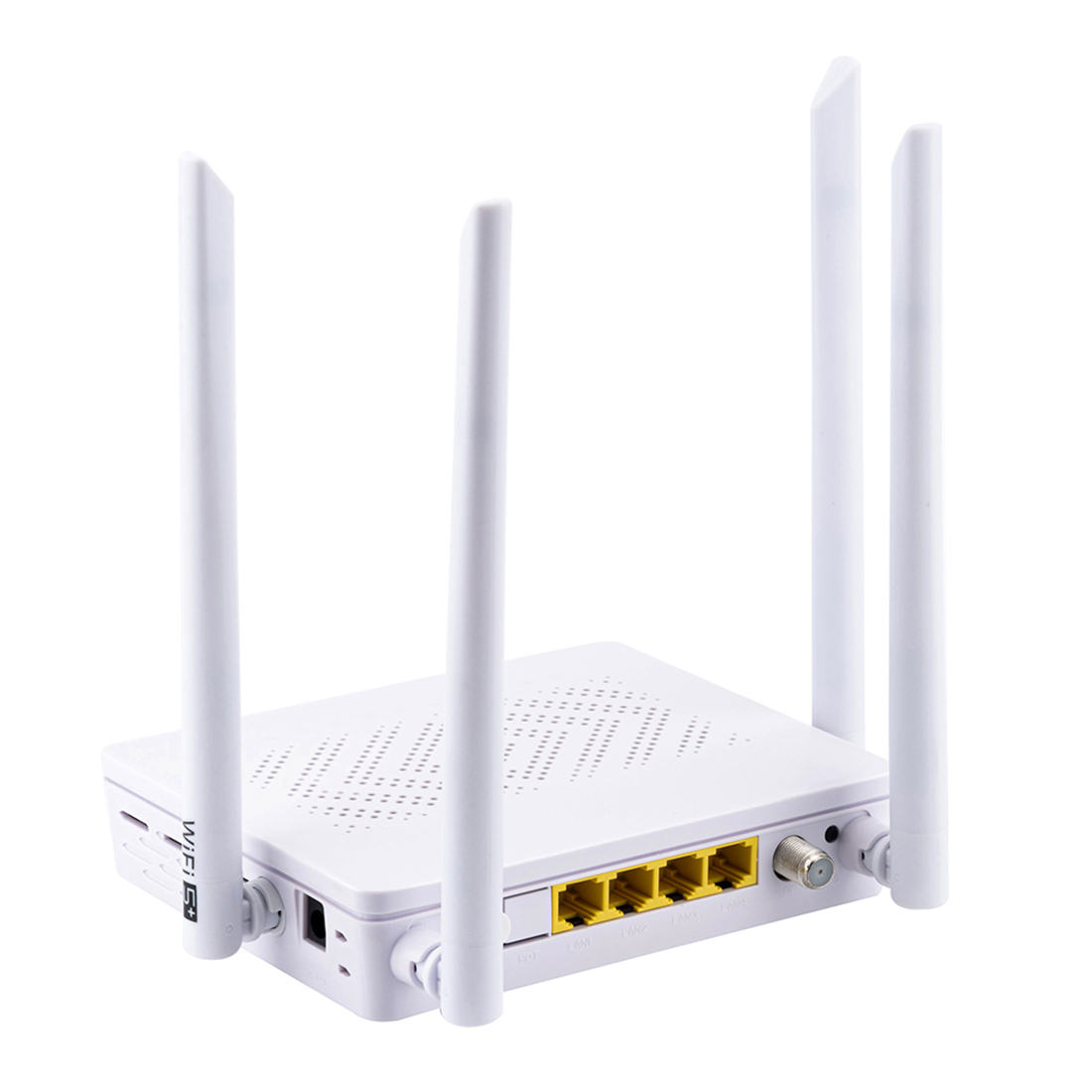

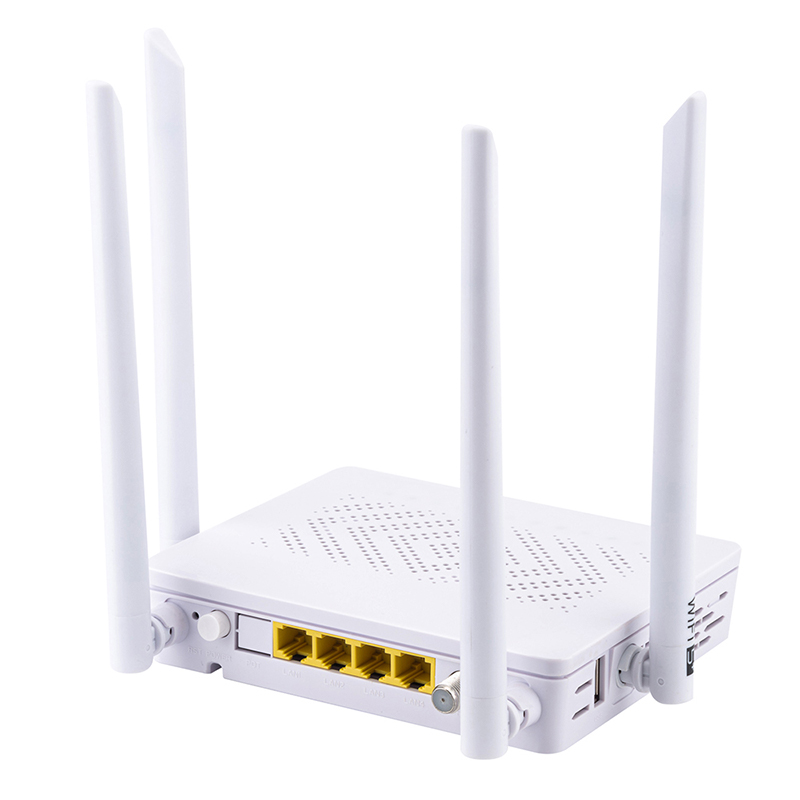

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 4GE AC WIFI CATV USB ONU |
CX51041R07C |
4*10/100/1000M RJ45 interface, USB interface,1 PON interface, built-in FWDM, 1 RF interface, support WIFI 5G&2.4G, support CATV AGC, plastic casing, external power supply adapter |
Internet phone settings
You need to collect some basic information including credentials like user's sip phone number, SIP username, sip password, SIP domain, proxy server and outbound proxy. You can obtain this information from your VoIP provider.
FAQ
Q1. What are the main features of this product?
A: The product has 4 Gigabit ports, provides 2.4 and 5.8GHz dual-band WIFI support, and adopts a high-performance, low-power Realtek chipset design. It also supports dual mode, automatically switches between EPON and GPON mode when connected to the respective OLT. In addition, it complies with GPON G.984/G.988 and IEEE802.3ah standards, and includes CATV AGC automatic gain control, NAT public network conversion, GOOGIE platform game server support, firewall functions, etc.
Q2. How many Gigabit ports does this product have?
A: The product has a total of 4 Gigabit ports, providing multiple high-speed connections for various devices.
Q3. What are the benefits of supporting dual-band WIFI?
A: This product supports 2.4 and 5.8 GHz dual-band WIFI, providing flexibility of wireless connection. The 2.4 GHz band offers better coverage and can penetrate obstacles more effectively, while the 5.8 GHz band offers higher data rates and is less susceptible to interference.
Q4. Can this product automatically switch between EPON and GPON mode?
A: Yes, this product is capable of automatically switching between EPON and GPON modes when connected to a corresponding OLT (Optical Line Terminal). This ensures seamless compatibility with different network infrastructures.
Q5. Which standards does this product meet?
A: The product complies with GPON G.984/G.988 and IEEE802.3ah standards, ensuring interoperability and compatibility with industry standard protocols and equipment.
