XPON 1GE 3FE WIFI POTs USB ONU ONT Manufacturing Factory
Overview
● 1G3F+WIFI+POTs+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G3F+WIFI+POTs+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G3F+WIFI+POTs+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 1G3F+WIFI+POTs+USB are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
● 1G3F+WIFI+POTs+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 1G3F+WIFI+POTs+USB are designed by Realtek chipset 9603C.
Product Feature and model list
|
ONU Model |
CX21141R03C |
CX21041R03C |
CX20141R03C |
CX20041R03C |
|
Feature |
1G3F CATV VOIP 2.4GWIFI USB |
1G3F CATV 2.4GWIFI USB |
1G3F VOIP 2.4GWIFI USB |
1G3F 2.4GWIFI USB |
|
ONU Model |
CX21140R03C |
CX21040R03C |
CX20140R03C |
CX20040R03C |
|
Feature |
1G3F CATV VOIP 2.4GWIFI |
1G3F CATV 2.4GWIFI
|
1G3F VOIP 2.4GWIFI
|
1G3F 2.4GWIFI
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support SIP Protocol for VoIP Service
> Integrated line testing compliant with GR-909 on POTS
> Support 802.11n WIFI (2x2 MIMO) function
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
> Support IPv4/IPv6 dual stack
> Support IGMP transparent/snooping/proxy
> In compliant with IEEE802.3ah standard
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| PON Interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN Interface |
1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| USB Interface |
The standards USB2.0 |
| WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED |
9 LED, For Status of WIFI、WPS、PWR、LOS/PON、LAN1~LAN4、 , FXS |
| Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, VoIP etc.

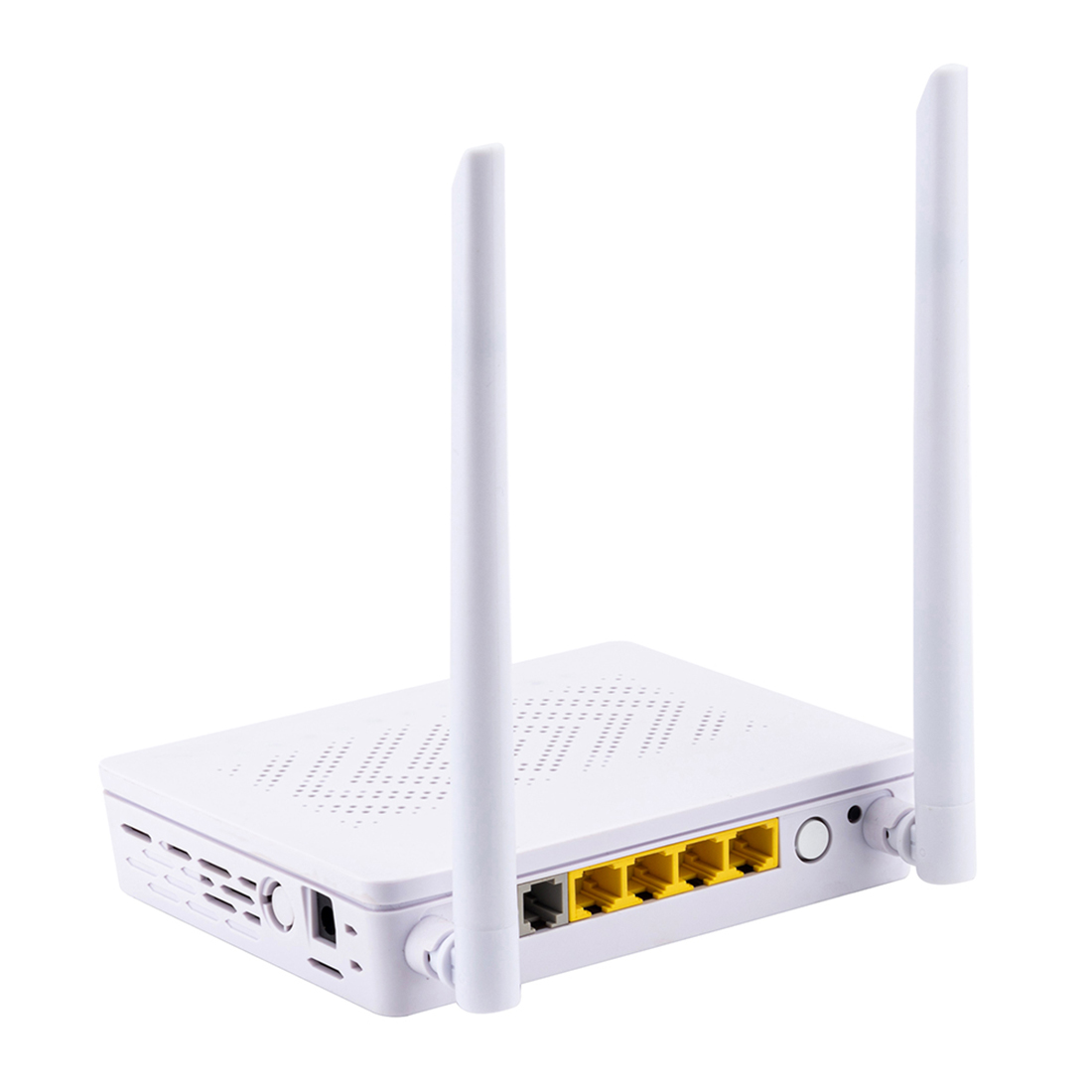

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
1G3F+WIFI+POTs +USB XPON |
CX20141R03C |
1*10/100/1000M and 3*10/100M Ethernet interface,USB interface,1 PON interface,, 1 POTS interface, support Wi-Fi function, Plastic casing, external power supply adapter |
Firmware upgrade
Let's find out how our firmware is upgraded！
Operating on this page can upgrade the firmware to a new version. Click the "Select File" button to select the software, and click the "Upgrade" button to update.Note: During the upgrade process, do not turn off the power of the device. Otherwise it will crash the system.
FAQ
Q1. What are the characteristics of XPON ONT?
A: XPON ONT is equipped with 1 Gigabit port, 3 10M/100M ports, 1 POTS and 1 USB port.
- Designed for carrier-grade FTTH data application service access.
Q2. Which OLTs are XPON ONTs compatible with?
A: XPON ONT is compatible with various OLTs, including SMATR OLT, UP2000, Huawei, ZTE, FiberHome, CDATA, VSOL, HSGQ, BDCOM, etc.
Q3. Can XPON ONT intelligently manage ONT?
A: Yes, XPON ONT is designed to intelligently manage ONTs and reduce the maintenance workload of service providers.
Q4. Does XPON ONT support specific protocols?
A: Yes, XPON ONT supports popular protocols like TR369 and TR098.
- It also supports super management functions reserved for future smart homes and smart furniture.
Q5. Does the XPON ONT comply with any technical specifications?
A: Yes, XPON ONT complies with China Telecom EPON CTC3.0 and other technical specifications.
- It is designed to meet the requirements and standards set by telecommunication agencies.
