Overview
● 1G3F+WIFI+CATV is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G3F+WIFI+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G3F+WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunications EPON CTC3.0 .
● 1G3F+WIFI+CATV is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
● 1G3F+WIFI+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 1G3F+WIFI+CATV is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 1G3F+WIFI+CATV is designed by ZTE chip set 279127.
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards
> Support CATV interface for Video Service and remote control by Major OLT
> Support 802.11n WIFI (2x2 MIMO) function
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and maintenance.
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support PON and routing compatibility function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLT (HW, ZTE, FiberHome...)
Specification
|
Technical Item |
Details |
| PON interface |
1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+4dBm Transmission distance: 20KM |
| LAN interface |
1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED |
10 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、 NORMAL(CATV) |
| Push-Button |
3, for Function of Power on/off, Reset, WPS |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
Panel lights and Introduction
|
PilotLamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
Normal (CATV) |
On |
Input optical power is between -18dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -18dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, CATV etc.

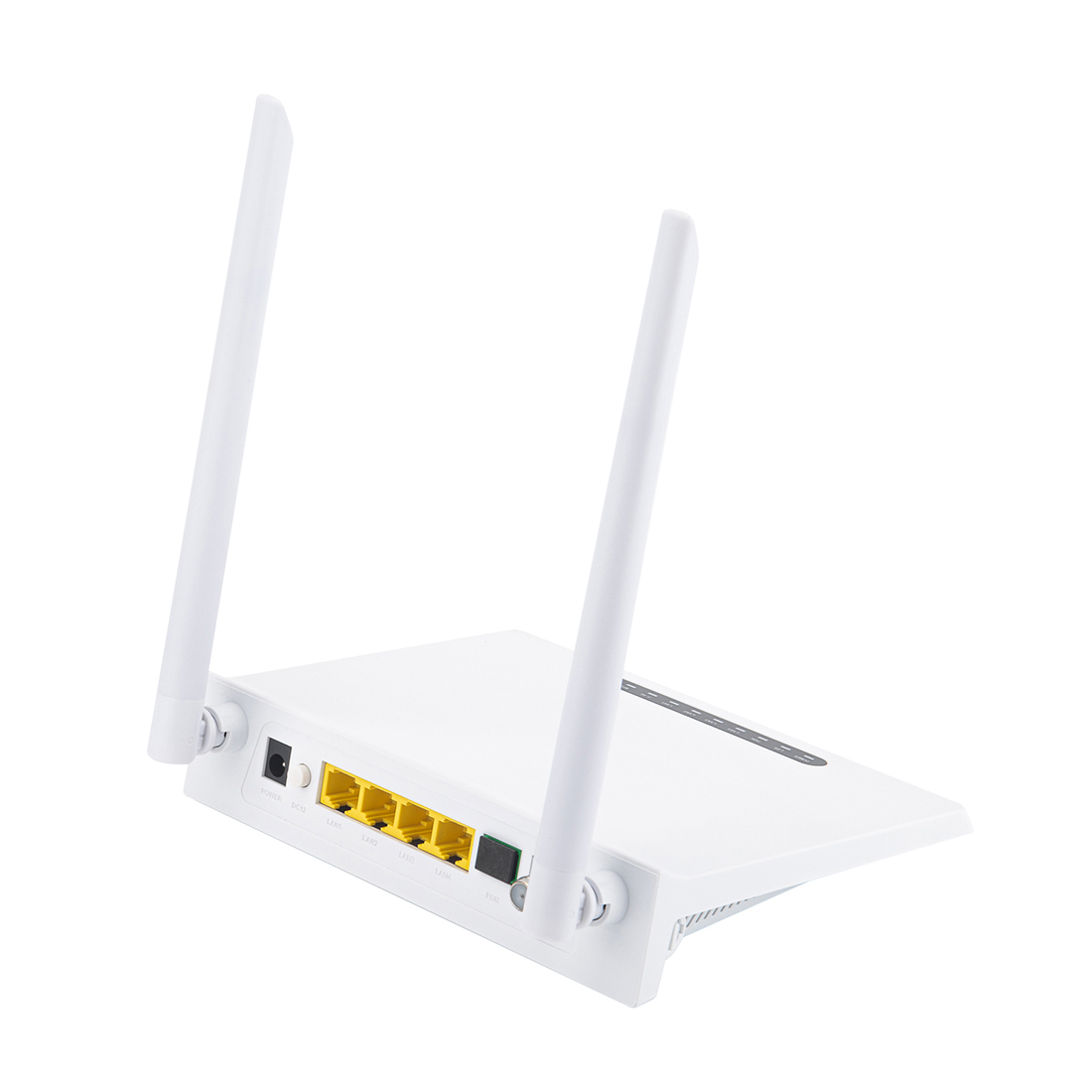

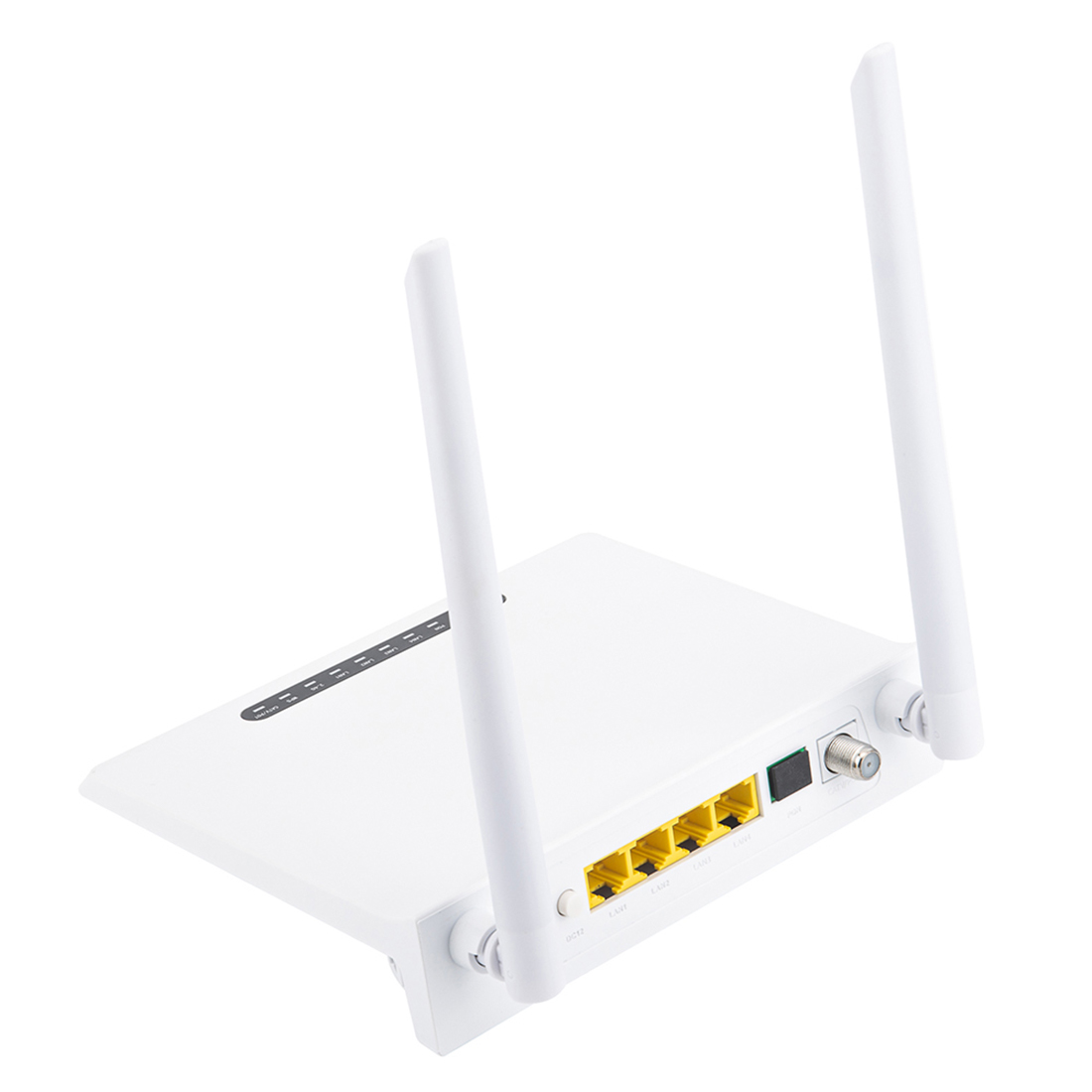

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 1G3F WIFI CATV ONU |
ZX21040Z127 |
1*10/100/1000M and 3*10/100M Ethernet interface, 1 PON interface, built-in FWDM, 1 RF interface, support Wi-Fi function, support AGC, plastic casing, external power supply adapter |
FAQ
Q1. How many ports does XPON ONU have?
A: XPON ONU has 1 Gigabit port and 3 100M ports.
Q2. What standards does XPON ONU meet?
A: XPON ONU complies with IEEE802.11b/g/n standard.
Q3. What is the WiFi frequency range of XPON ONU?
A: The WiFi frequency of XPON ONU is 2.4-2.4835GHz.
Q4. What technology does the WiFi of XPON ONU use?
A: The WiFi of XPON ONU adopts MIMO (Multiple Input Multiple Output) technology.
Q5. Does XPON ONU support XGSPON environment?
A: Yes, XPON ONU supports XGSPON environment.
Q6. What is the optical receiving wavelength of XPON ONU?
A: The light receiving wavelength of XPON ONU is 1550nm.
Q7. What is the warranty period of the products sold by your company?
A: The products sold by our company are guaranteed for 1-3 years.
Q8. Can the software of XPON ONU be upgraded for free?
A: Yes, the software of XPON ONU can be upgraded for free for life.
