XGSPON AX3000 2.5G 4GE WIFI POTs 2USB ONU Manufacturer
Overview
● XGSPON 2.5G+4G+WIFI+POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
● XGSPON 2.5G+4G+WIFI+POTs+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
● XGSPON 2.5G+4G+WIFI+POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.
● XGSPON 2.5G+4G+WIFI+POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● XGSPON 2.5G+4G+WIFI+POTs+2USB are designed by Realtek chipset 9617C.
Product Feature and model list
|
ONU Model |
CS62152R17C |
CS61152R17C |
CS62052R17C |
CS61052R17C |
|
Feature |
2.5G+4G 2CATV VOIP WIFI6 2USB |
2.5G+4G CATV VOIP WIFI6 2USB |
2.5G+4G 2CATV WIFI6 2USB |
2.5G+4G 1CATV WIFI6 2USB |
|
ONU Model |
CS60152R17C |
CS60052R17C |
|
|
|
Feature |
2.5G+4G VOIP WIFI6 2USB |
2.5G+4G WIFI6 2USB
|
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Comply with GPON G.987/G.9807.1 and IEEE 802.3av standards
> Support SIP Protocol for VoIP Service
> Integrated line testing compliant with GR-909 on POTS
> Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support power-off alarm function ,easy for link problem detection
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
> Support IPv4/IPv6 dual stack
> Support IGMP transparent/snooping/proxy
> Support ACL and SNMP to configure data packet filter flexibly
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)，supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
1 0G GPON Class B+) Upstream: 1270nm; Downstream: 1577nm single mode，SC/APC connector Receiving sensitivity: ≤-29dBm Transmitting optical power: 2~+8dBm Overload optical power: - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000M/2500Mbps auto adaptive Ethernet interfaces Full/Half, 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0、Stamdard USB3.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID |
|
VOIP Port |
1×VOIP RJ11 Connector |
|
LED |
15 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS1/2.5GLAN |
|
Push-Button |
3, for Function of Power on/off, Reset, WPS |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1.5A |
|
Power Consumption |
<18W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
|
INTERNET |
On | The light is on when the device business configuration is normal. |
| Off | The light does not light up when the device service configuration is blocked. | |
|
PWR |
On | The device is powered up. |
| Off | The device is powered down. | |
|
LOS |
Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
|
PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
LAN1~LAN5 |
On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
|
FXS |
On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. | |
|
USB |
On | USB device communication detected |
| Off | No USB device detected or communicating |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, VoIP etc.

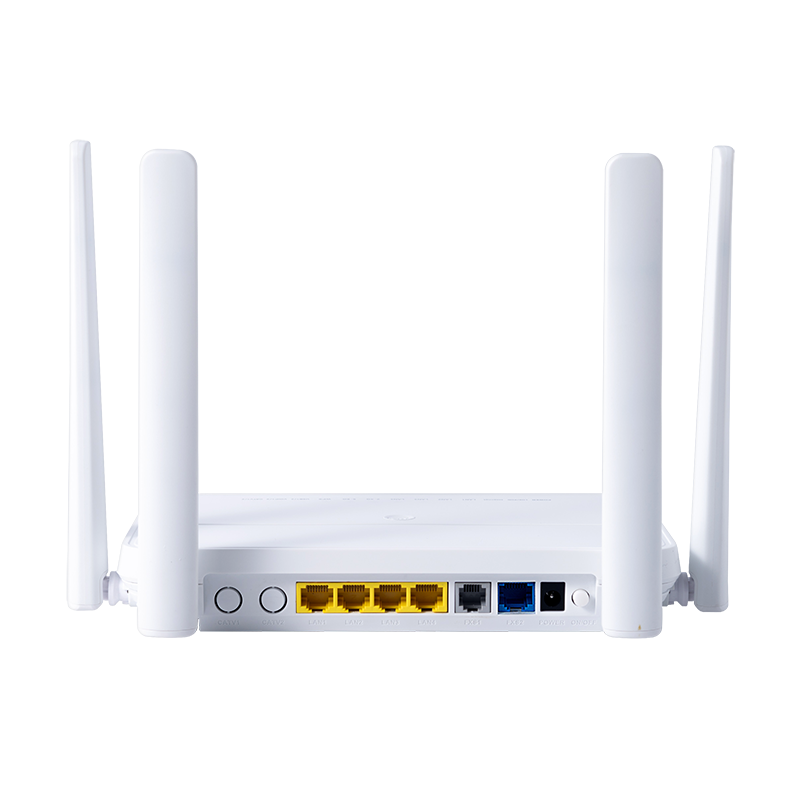

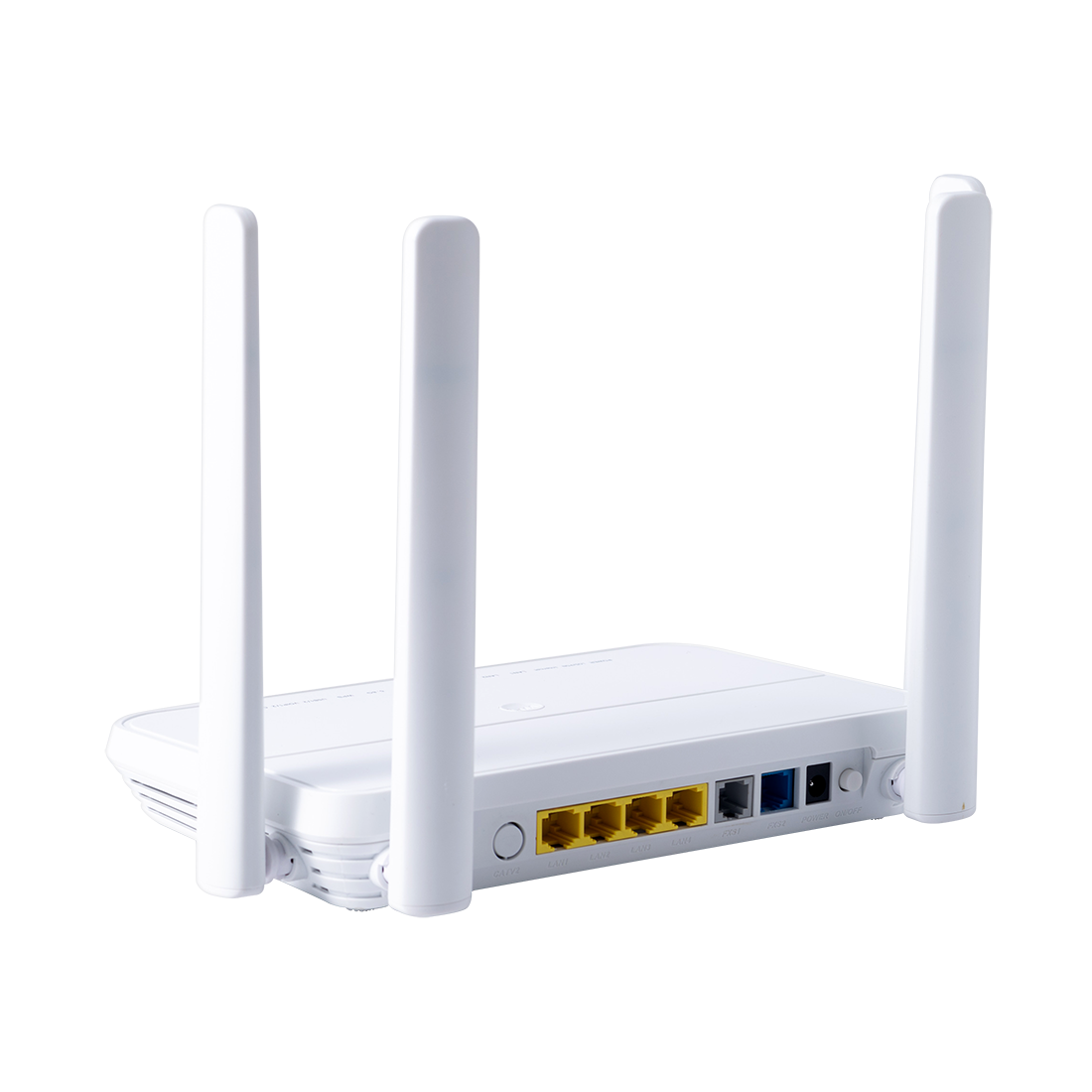

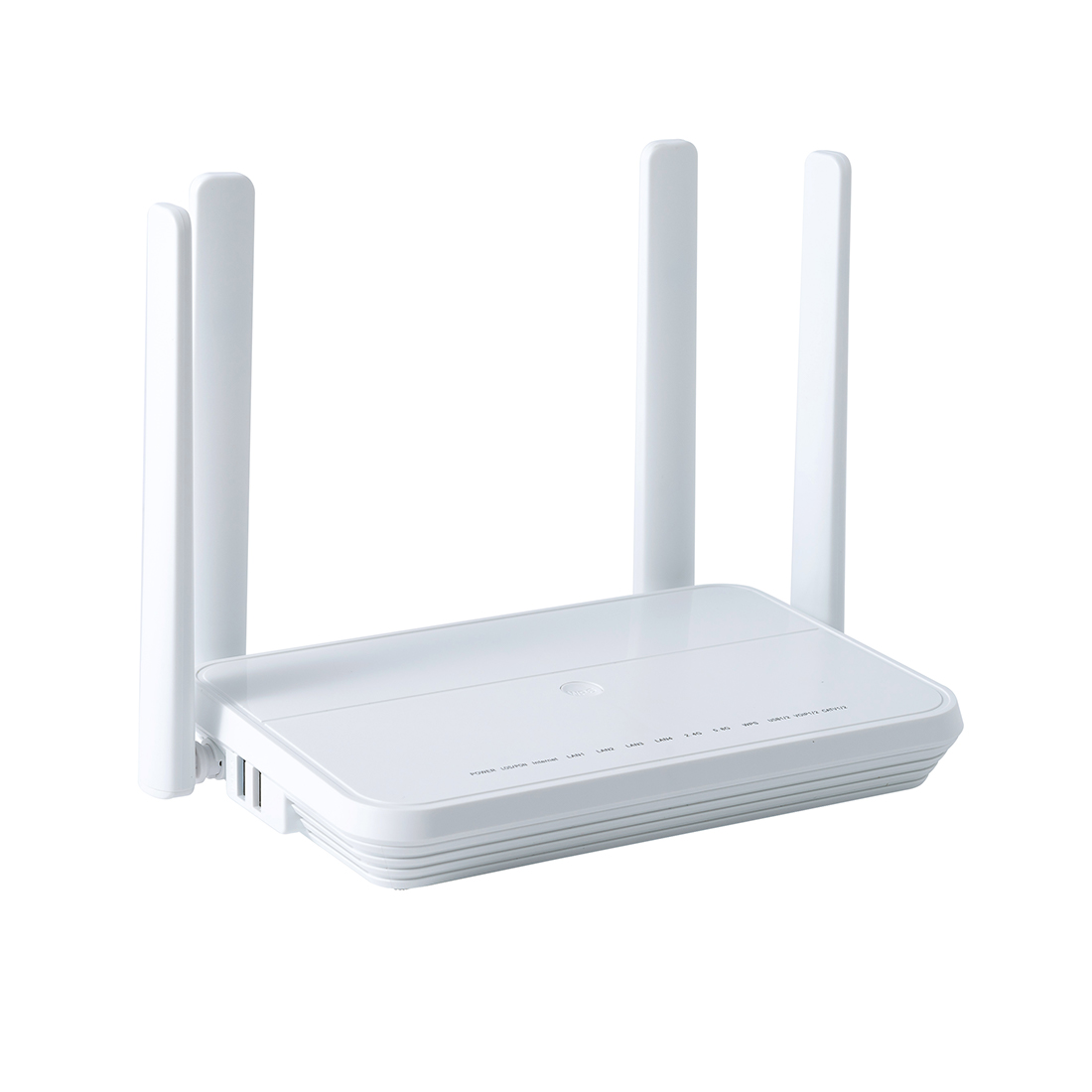

Product Appearance
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
XGSPON 2.5G+4GE+WIFI+POTs+2USB
|
CS60152R17C |
4*10/100/1000M and 1*10/100/1000/2500M network ports, built-in FWDM, 2 USB ports, 1 POTS interface, 1 PON interface, supports Wi-Fi function, supports AGC, plastic Shell, external power adapter |
Regular Power Adapter
