WIFI Fiber Optic Router XGPON AX3000 4GE WIFI CATV POTs 2USB ONU
Overview
● XGPON 4GE+WIFI+CATV+POTs+2USB Utilizing the latest WiFi 6 (AX3000) technology, equipped with IEEE 802.3av (10G-EPON) / ITU-T G.987 (XG-PON) / ITU-TG.9807.1 (XGS-PON) PON interface and IEEE802.11ax (WiFi 6) interface, it supports complete triple-play services, enabling data, voice and video services through Ethernet, Wi-Fi, FXS and USB standard interfaces, helping Internet service providers to provide 2.5Gbps Internet services that exceed the GPON limit.
● XGPON 4GE+WIFI+CATV+POTs+2USB Built-in Ethernet LAN port, and 4x1GE BASE-T ports support ultra-fast device connections and include a powerful enhanced WLAN interface based on MU-MIMO OFDMA 4x4 2.4GHz MIMO and 5Ghz 4x4 MIMO Wi-Fi antennas, supporting 802.11a/b/g/n/ac/ax standards in both 2.4GHz and 5GHz wireless bands for Internet applications such as video, email, web browsing, file upload/download, and online gaming, as well as VoIP services via the POTS port.
● XGPON 4GE+WIFI+CATV+POTs+2USB with EasyMesh function can easily realize the whole house network.
● XGPON 4GE+WIFI+CATV+POTs+2USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● XGPON 4GE+WIFI+CATV+POTs+2USB are designed by Realtek chipset 9617C.
Product Feature and model list
|
ONU Model |
CG61242R17C |
CG61142R17C |
CG60242R17C |
CG60142R17C |
|
Feature |
4G CATV 2VOIP 2.4/5G 2USB |
4G CATV VOIP 2.4/5G 2USB |
4G 2VOIP 2.4/5G 2USB |
4G VOIP 2.4/5G 2USB |
|
ONU Model |
CG61240R17C |
CG61140R17C |
CG60240R17C |
CG60140R17C |
|
Feature |
4G CATV 2VOIP 2.4/5G |
4G CATV VOIP 2.4/5G |
4G 2VOIP 2.4/5G
|
4G VOIP 2.4/5G
|
|
ONU Model |
CG60042R17C |
CG60040R17C |
CG61040R17C |
CG61042R17C |
|
Feature
|
4G 2.4/5G USB
|
4G 2.4/5G
|
4G CATV 2.4/5G |
4G CATV 2.4/5G 2USB |
Feature
> Supports Dual Mode (can access XGPON/10GEPON OLT).
> Supports ITU-T G.987 (XG-PON) / ITU-TG.9807.1 standards and IEEE802.3av.
> Support CATV (with AGC) interface to provide video services, which can be remotely controlled through mainstream OLT.
> Support SIP Protocol for VoIP Service.
> Integrated line testing compliant with GR-909 on POTS.
> Support IEEE 802.11b/g/n/ac/ax WIFI (4x4 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.
> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> Support VPN function.
> Support NTP (network time synchronization), device scheduled restart, Ping and Traceroute diagnosis.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
XG_PON (Class B+) Upstream: 1270nm; Downstream: 1577nm single mode，SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 5dBm Overload optical power: - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
1*2.5GE, Auto-negotiation,RJ45 ports,4*1GE, Auto-negotiation,RJ45 ports |
|
USB Interface |
Stamdard USB2.0、Stamdard USB3.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 6dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: TX power: 16--21dBm |
|
CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
13 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、FXS1、Normal 1(CATV1) |
|
Push-Button |
3. For power on/off, reset, WPS function |
|
Operating condition |
Temperature : -10℃～+55℃ Humidity :5%～95%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+70℃ Humidity :5%～95%（non-condensing） |
|
Power supply |
DC 12V/2A |
|
Power Consumption |
≤24W |
|
Net Weight |
<0.5kg |
|
Product size |
210mm×135mm×35mm(L×W×H) |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. | |
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. | |
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. | |
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. | |
|
Off |
The device registration is incorrect. | |
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). | |
|
Off |
Port (LANx) connection exception or not connected. | |
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). | |
|
Off |
Telephone registration is incorrect. | |
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

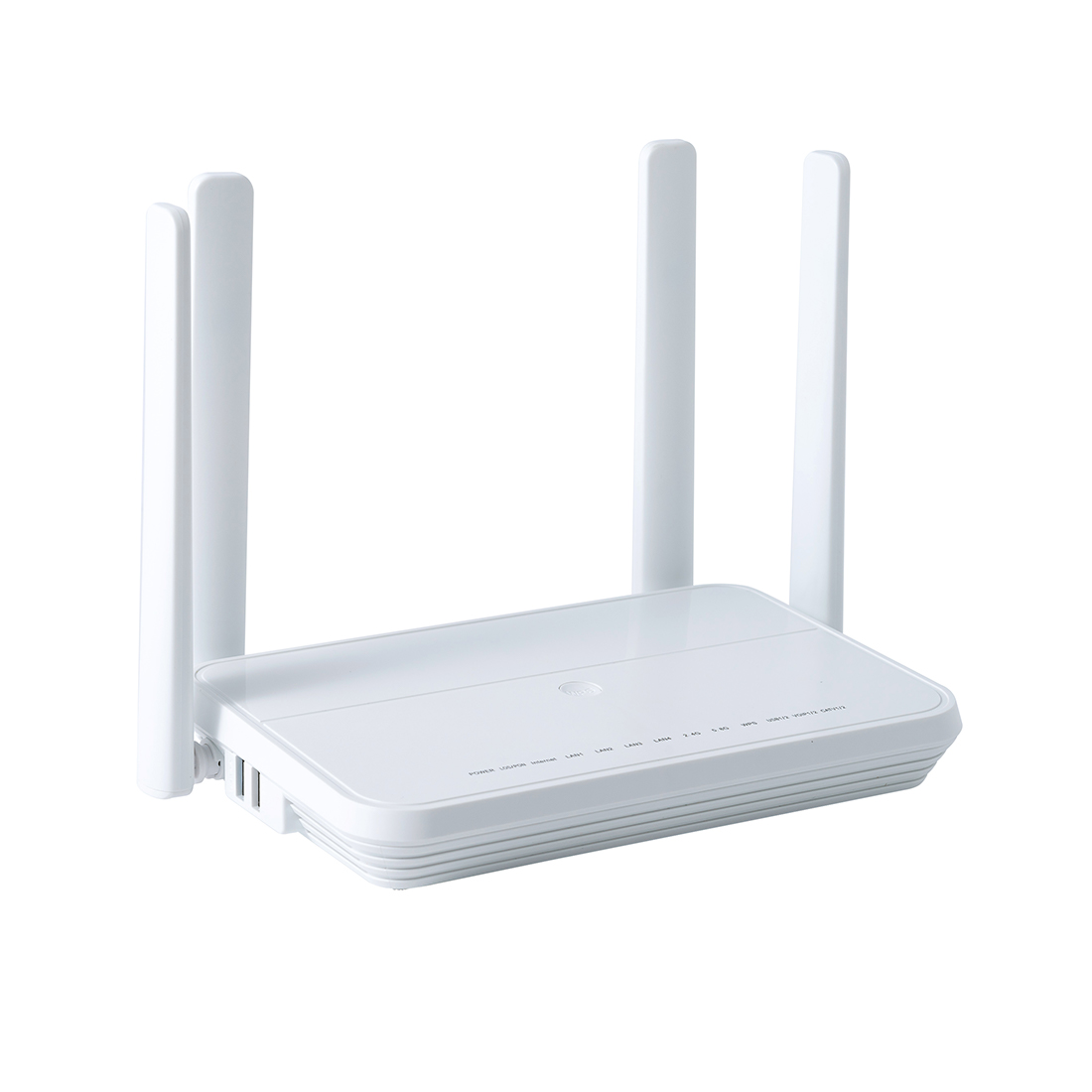

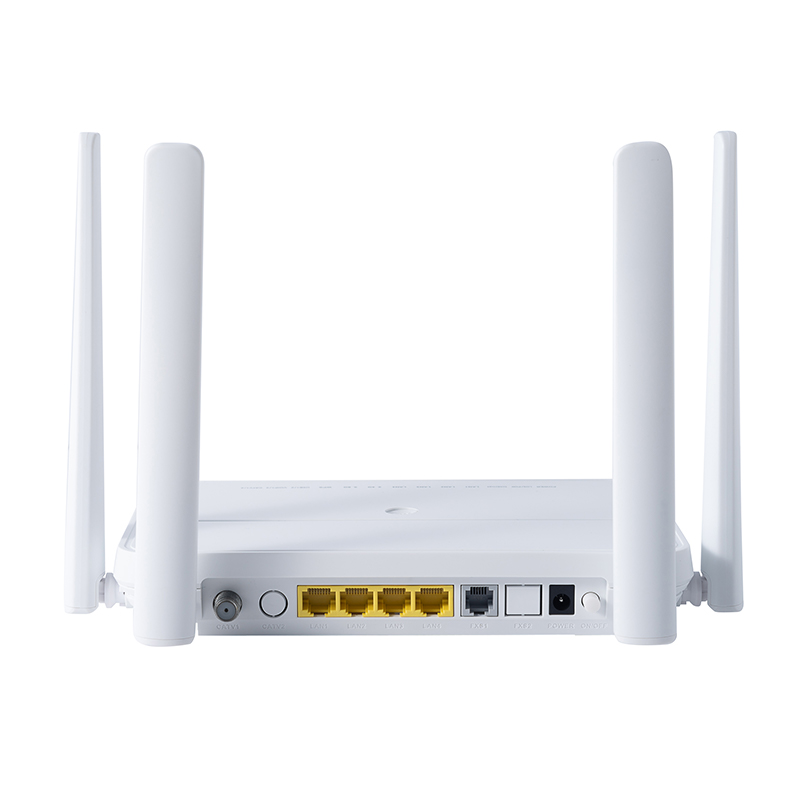

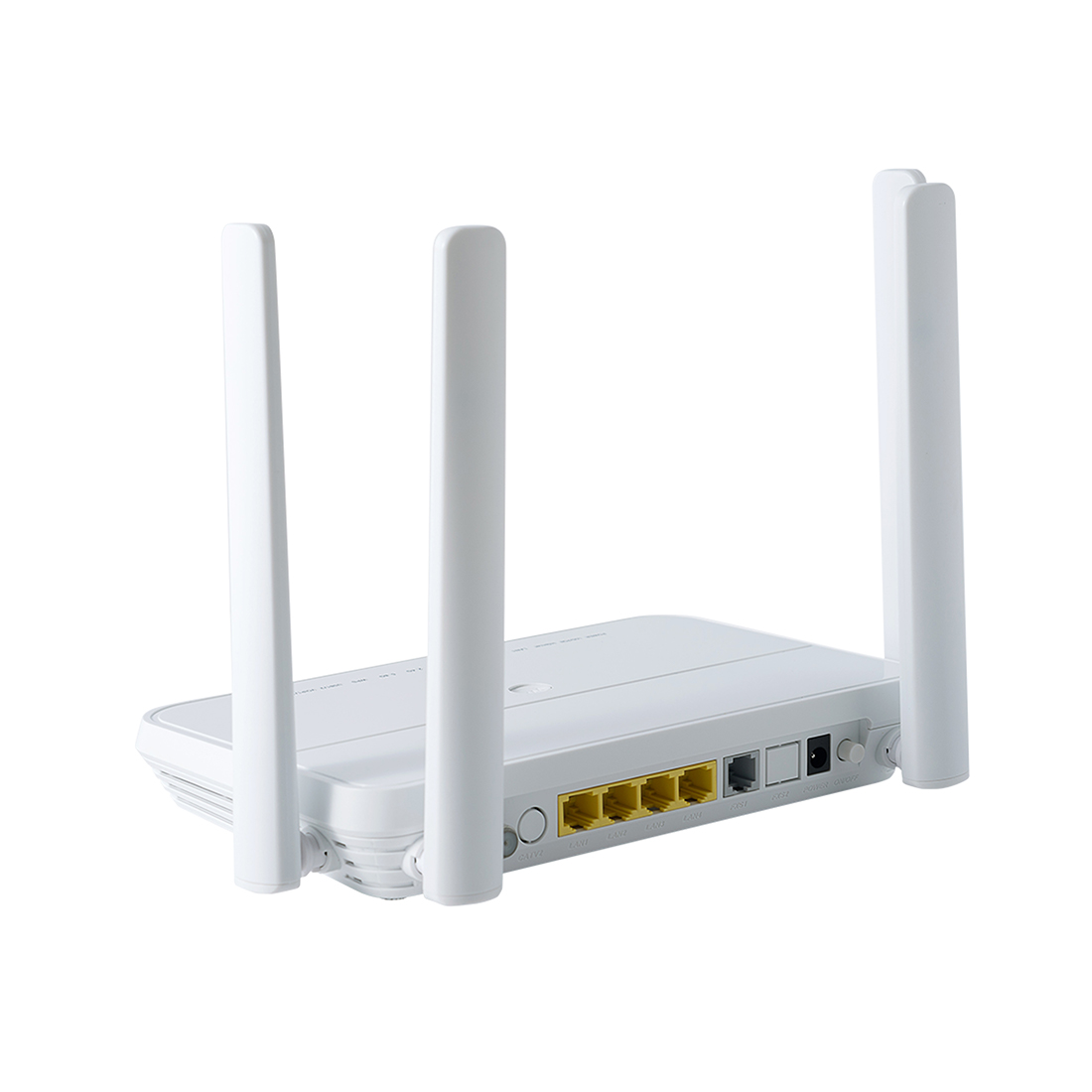

Product Appearance
