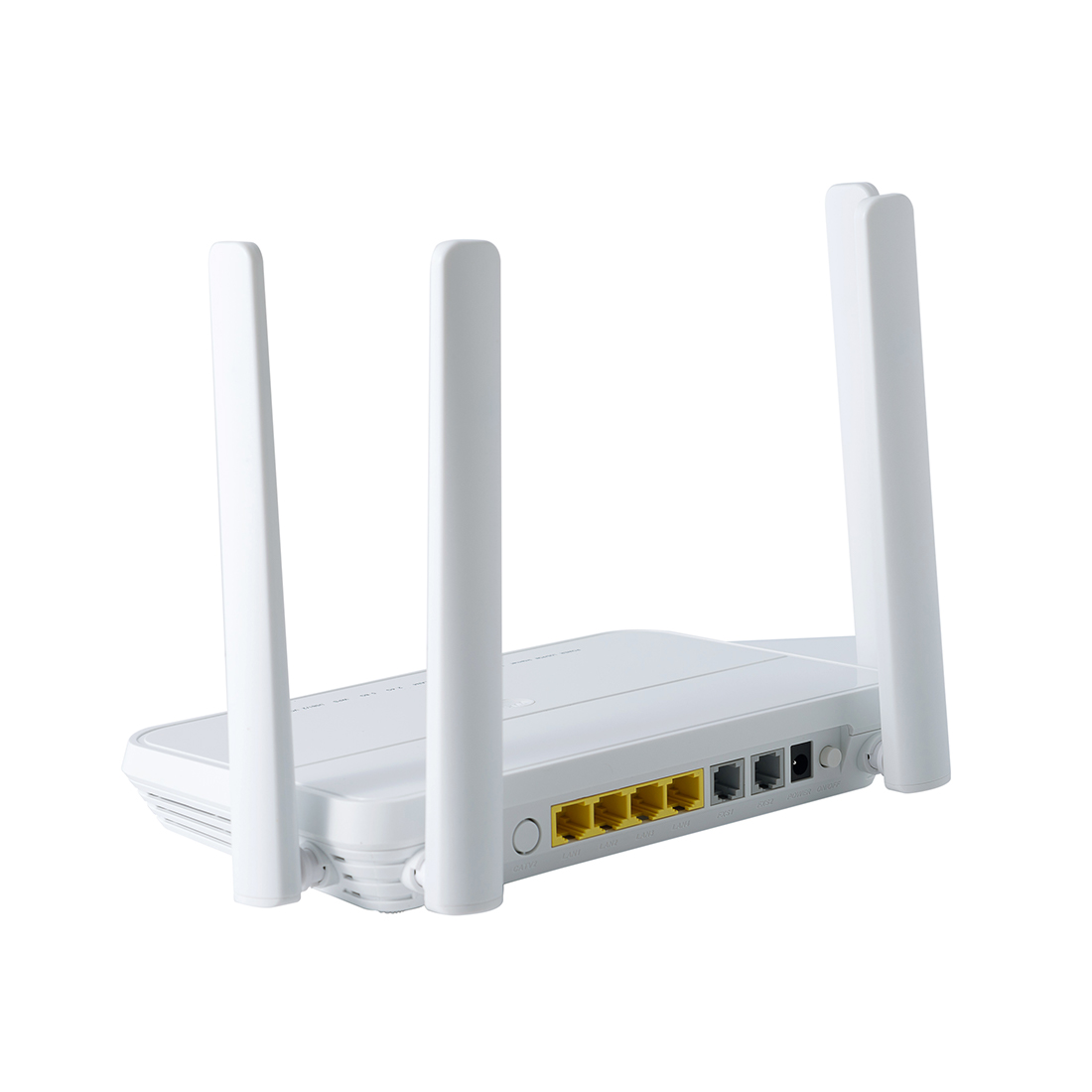

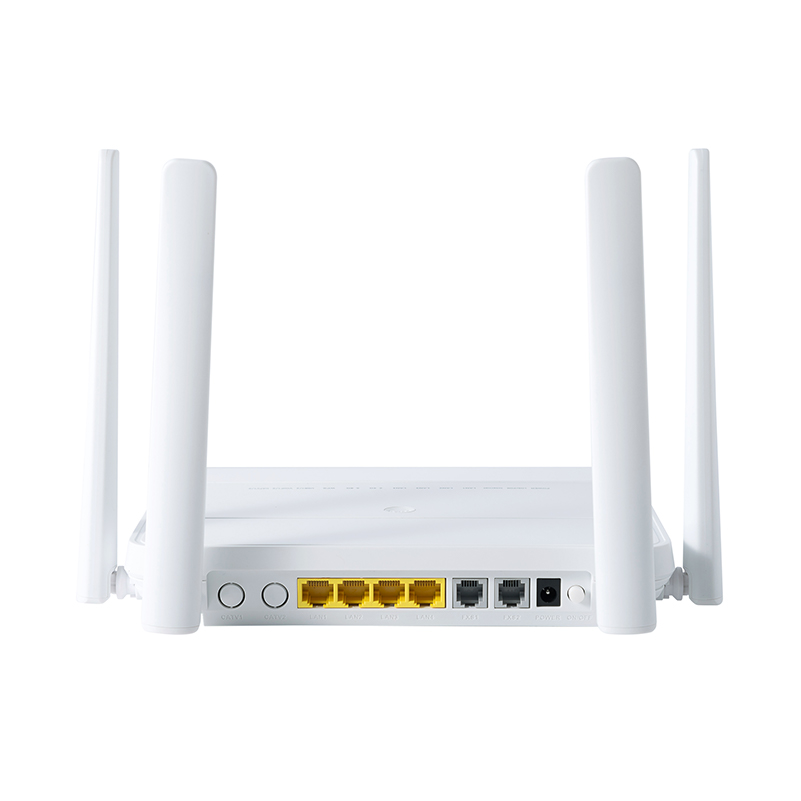

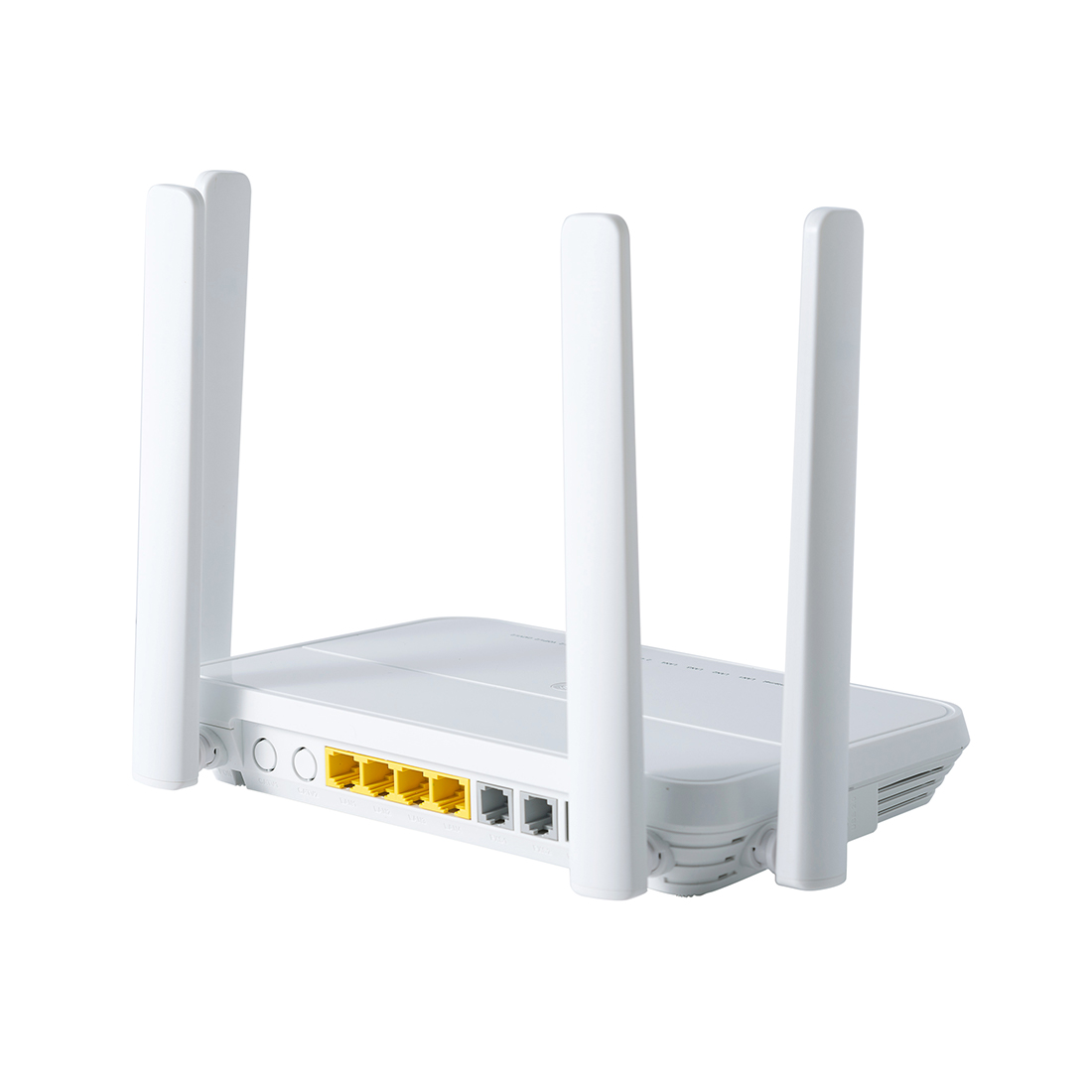

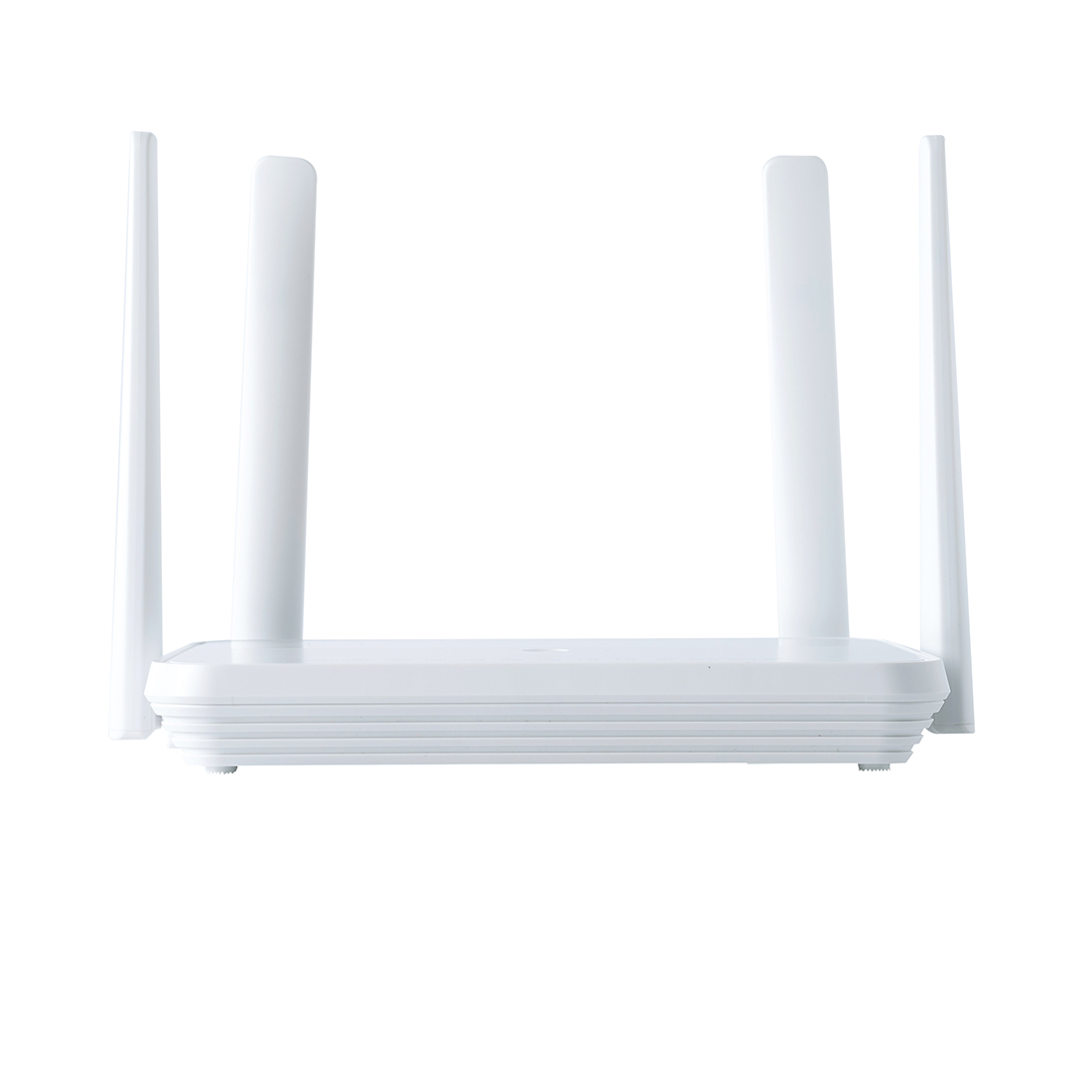

Gpon Onu Router XGPON AX3000 4GE WIFI 2POTs 2USB ONU

Short Description:

XGPON ONU WIFI6 AX3000 4GE+WIFI+2POTS+2USB, supports G.987 OMCI management configuration, compatible with mainstream OLT, supports firewall L1, L2, L3, supports Web interface upgrade, online multicast, multicast upgrade, and supports two-level user management. 2.4G WIFI speed is up to 574Mbps, 5G WIFI speed is up to 2402Mbps. Support VPN over the wall, 1 year warranty, free lifetime software upgrade.

Single Size: 285x283x46mm

Carton Size: 500x300x310mm

Product Model: CG60242R17C

Send email to us

Product Detail

Product Tags

Overview

● XGPON 4GE+WIFI+2POTs+2USB Utilizing the latest WiFi 6 (AX3000) technology, equipped with IEEE 802.3av (10G-EPON) / ITU-T G.987 (XG-PON) / ITU-TG.9807.1 (XGS-PON) PON interface and IEEE802.11ax (WiFi 6) interface, it supports complete triple-play services, enabling data, voice and video services through Ethernet, Wi-Fi, FXS and USB standard interfaces, helping Internet service providers to provide 2.5Gbps Internet services that exceed the GPON limit.

● XGPON 4GE+WIFI+2POTs+2USB Built-in Ethernet LAN port, and 4x1GE BASE-T ports support ultra-fast device connections and include a powerful enhanced WLAN interface based on MU-MIMO OFDMA 4x4 2.4GHz MIMO and 5Ghz 4x4 MIMO Wi-Fi antennas, supporting 802.11a/b/g/n/ac/ax standards in both 2.4GHz and 5GHz wireless bands for Internet applications such as video, email, web browsing, file upload/download, and online gaming, as well as VoIP services via the POTS port.

● XGPON 4GE+WIFI+2POTs+2USB with EasyMesh function can easily realize the whole house network.

● XGPON 4GE+WIFI+2POTs+2USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.

● XGPON 4GE+WIFI+2POTs+2USB are designed by Realtek chipset 9617C.

Product Feature and model list

ONU Model	CG61242R17C	CG61142R17C	CG60242R17C	CG60142R17C
Feature	4G CATV 2VOIP 2.4/5G 2USB	4G CATV VOIP 2.4/5G 2USB	4G 2VOIP 2.4/5G 2USB	4G VOIP 2.4/5G 2USB
ONU Model	CG61240R17C	CG61140R17C	CG60240R17C	CG60140R17C
Feature	4G CATV 2VOIP 2.4/5G	4G CATV VOIP 2.4/5G	4G 2VOIP 2.4/5G	4G VOIP 2.4/5G
ONU Model	CG60042R17C	CG60040R17C	CG61040R17C	CG61042R17C
Feature	4G 2.4/5G USB	4G 2.4/5G	4G CATV 2.4/5G	4G CATV 2.4/5G 2USB

Feature

XGPON 4GE AX3000 2POTS 2USB ONU CG60242R17C

> Supports Dual Mode (can access XGPON/10GEPON OLT).

> Supports ITU-T G.987 (XG-PON) / ITU-TG.9807.1 standards and IEEE802.3av.

> Support SIP Protocol for VoIP Service.

> Integrated line testing compliant with GR-909 on POTS.

> Support IEEE 802.11b/g/n/ac/ax WIFI (4x4 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.

> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.

> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

> Support port mode of VLAN configuration.

> Support LAN IP and DHCP Server configuration.

> Support TR069 Remote Configuration and WEB Management.

> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

> Support IPv4/IPv6 dual stack.

> Support IGMP transparent/snooping/proxy.

> Support EasyMesh function.

> Support PON and routing compatibility function.

> Support VPN function.

> Support NTP (network time synchronization), device scheduled restart, Ping and Traceroute diagnosis.

> In compliant with IEEE802.3ah standard.

> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)

> Supports OAM/OMCI management.

Specification

Technical Item	Details
PON interface	XG_PON (Class B+) Upstream: 1270nm; Downstream: 1577nm single mode，SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 5dBm Overload optical power: - 8dBm(GPON) Transmission distance: 20KM
LAN interface	12.5GE, Auto-negotiation,RJ45 ports,41GE, Auto-negotiation,RJ45 ports
USB Interface	Stamdard USB2.0、Stamdard USB3.0
WIFI Interface	Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 6dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: TX power: 16--21dBm
POTS Port	RJ11 Max 1km distance Balanced Ring, 50V RMS
LED	12 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、FXS1
Push-Button	3. For power on/off, reset, WPS function
Operating condition	Temperature : -10℃～+55℃ Humidity :5%～95%（non-condensing）
Storing Condition	Temperature : -40℃～+70℃ Humidity :5%～95%（non-condensing）
Power supply	DC 12V/2A
Power Consumption	≤24W
Net Weight	<0.5kg
Product size	210mm×135mm×35mm(L×W×H)

Panel lights and Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
FXS	On	Telephone has registered to the SIP Server.
	Blink	Telephone has registered and data transmission (ACT).
	Off	Telephone registration is incorrect.
