WIFI6 XPON AX1500 4GE WIFI 2POTs 2USB ONU ONT Supplier
Overview
● 4G+WIFI+2POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
● 4G+WIFI+2POTs+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
● 4G+WIFI+2POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 1500Mbps.
● 4G+WIFI+2POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+2POTs+2USB with EasyMesh function can easily realize the whole house network.
● 4G+WIFI+2POTs+2USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 4G+WIFI+2POTs+2USB are designed by Realtek chipset 9607C.
Product Feature and model list
|
ONU Model |
CX61242R07B |
CX61142R07B |
CX60242R07B |
CX60142R07B |
|
Feature |
4G CATV 2VOIP 2.4/5G 2USB |
4G CATV VOIP 2.4/5G 2USB |
4G 2VOIP 2.4/5G 2USB |
4G VOIP 2.4/5G 2USB |
|
ONU Model |
CX61240R07B |
CX61140R07B |
CX60240R07B |
CX60042R07B |
|
Feature |
4G CATV 2VOIP 2.4/5G |
4G CATV VOIP 2.4/5G |
4G 2VOIP 2.4/5G
|
4G 2.4/5G USB
|
|
ONU Model |
CX60140R07B |
CX60040R07B |
CX61040R07B |
CX61042R07B |
|
Feature
|
4G VOIP 2.4/5G |
4G 2.4/5G
|
4G CATV 2.4/5G |
4G CATV 2.4/5G 2USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support SIP Protocol for VoIP Service.
> Integrated line testing compliant with GR-909 on POTS.
> Support IEEE 802.11b/g/n/ac/ax WIFI (4x4 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.
> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> Support VPN function.
> Support NTP (network time synchronization), device scheduled restart, Ping and Traceroute diagnosis.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 6dBi external antenna, rate up to 1500Mbps Support: multiple SSID TX power: TX power: 16--21dBm |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
12 LED, PWR, LOS,PON, LAN1~LAN4, 5G,2.4G, 2*FXS |
|
Push-Button |
3. For power on/off, reset, WPS function |
|
Operating condition |
Temperature : -10℃～+55℃ Humidity :5%～95%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+70℃ Humidity :5%～95%（non-condensing） |
|
Power supply |
DC 12V/1.5A |
|
Power Consumption |
≤12W |
|
Net Weight |
<0.5kg |
|
Product size |
210mm×135mm×35mm(L×W×H) |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
|
INTERNET |
On | The light is on when the device business configuration is normal. |
| Off | The light does not light up when the device service configuration is blocked. | |
|
PWR |
On | The device is powered up. |
| Off | The device is powered down. | |
|
LOS |
Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
|
PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
LAN1~LAN4 |
On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
|
FXS |
On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. | |
|
USB |
On | USB device communication detected |
| Off | No USB device detected or communicating |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home).
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance VoIP etc.

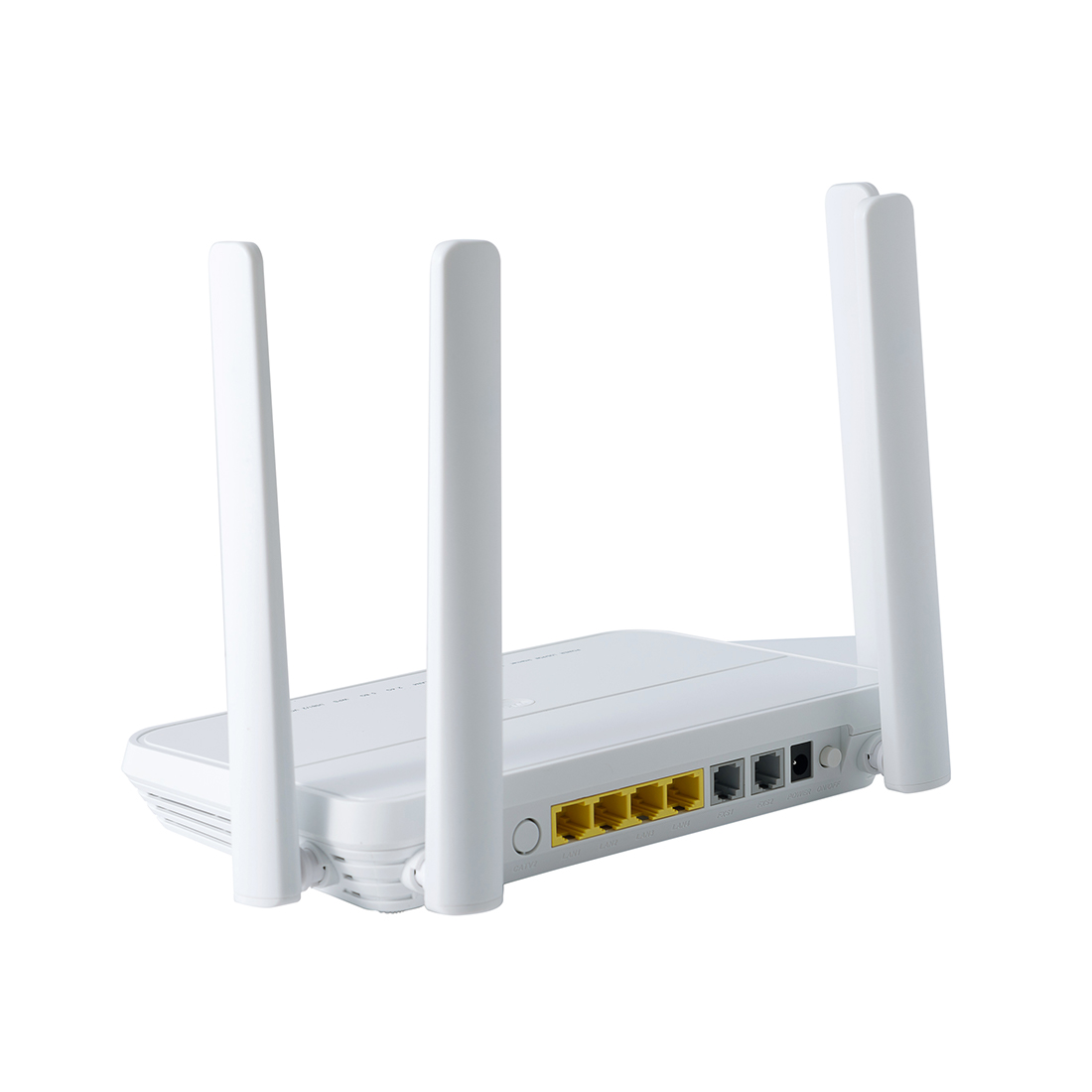

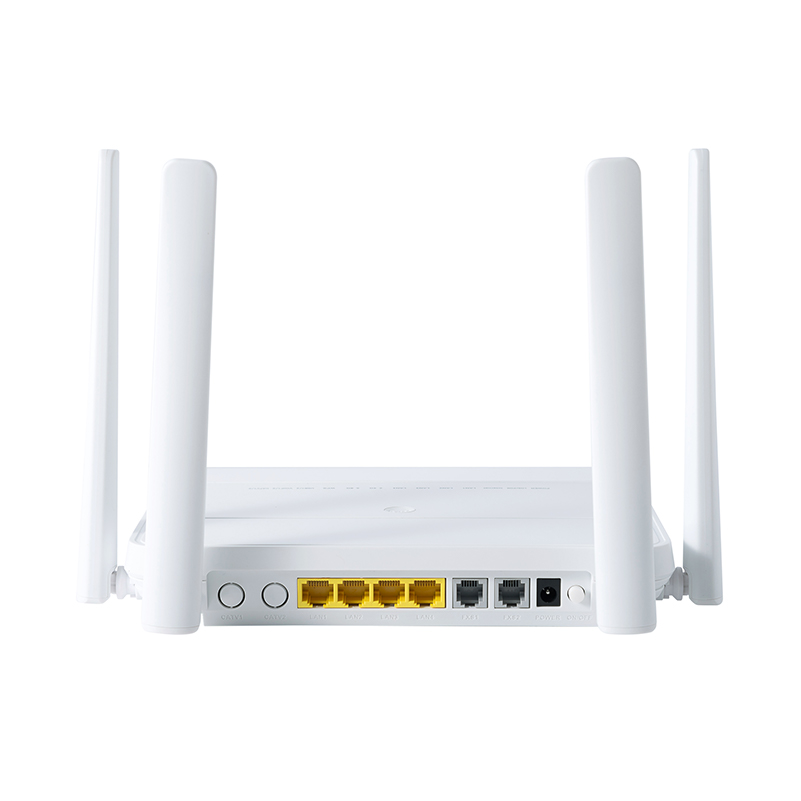

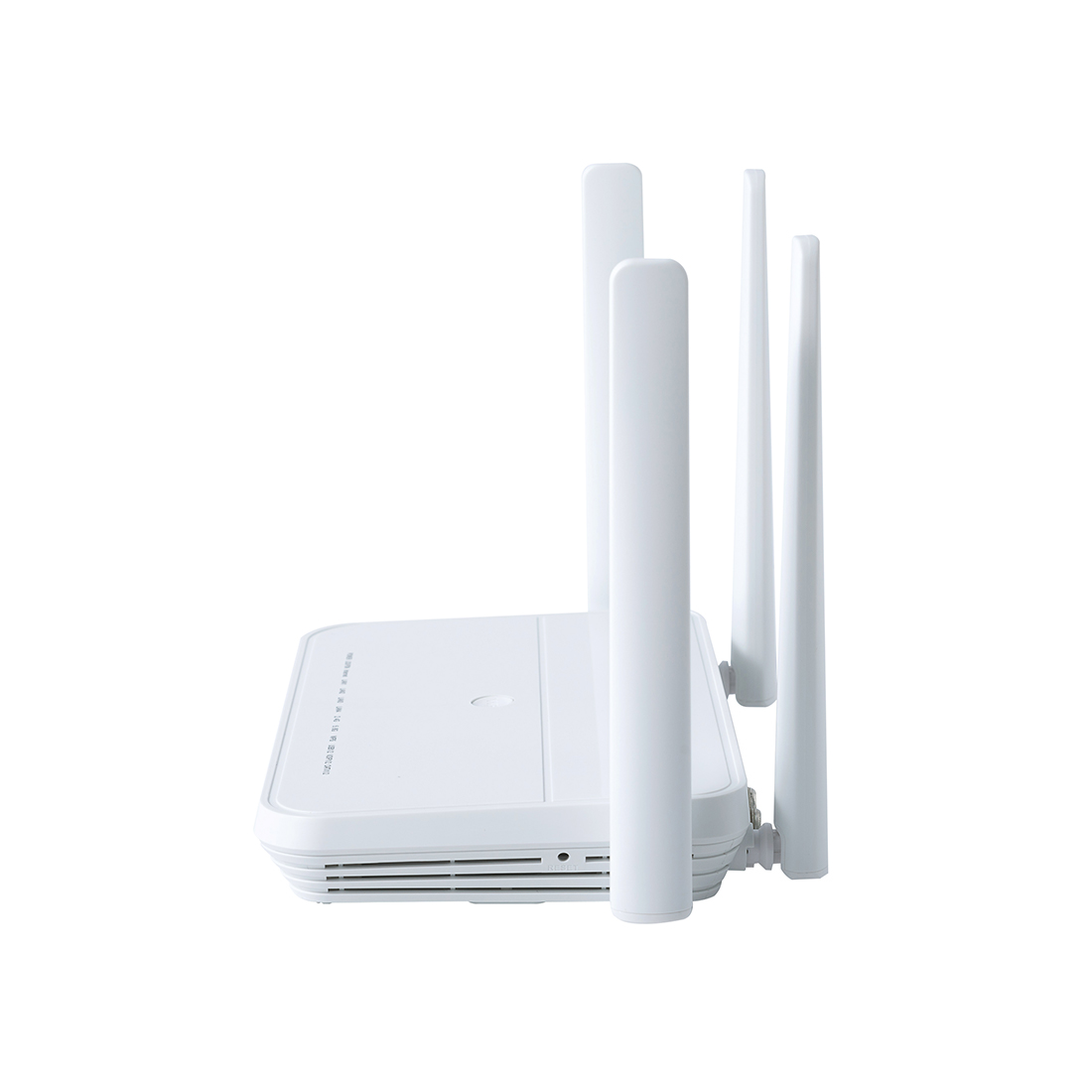

Product Appearance
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
AX1500 WIFI6 4GE+WIFI2POTs+2USB ONU |
CX60242R07B |
4*10/100/1000MNetwork port ; 2POTS ports；2 USB ports；external power supply adapter |
Regular Power Adapter
