Overview
4G+WIFI+2CATV+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
4G+WIFI+2CATV+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
4G+WIFI+2CATV+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.
4G+WIFI+2CATV+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
4G+WIFI+2CATV+2USB are designed by Realtek chip RTL9607D.
Product Feature and model list
| ONU Model | CX62242R07D | CX61242R07D | CX62142R07D | CX61142R07D |
|
Feature |
4G2CATV
2VOIP 2.4/5GWIFI 2USB |
4G1CATV
2VOIP 2.4/5GWIFI 2USB |
4G2CATV
1VOIP 2.4/5GWIFI 2USB |
4G1CATV
1VOIP 2.4/5GWIFI 2USB |
| ONU Model | CX62042R07D | CX61042R07D | CX60242R07D | CX60142R07D |
|
Feature |
4G2CATV
2.4/5GWIFI 2USB |
4G1CATV
2.4/5GWIFI 2USB |
4G2VOIP
2.4/5GWIFI 2USB |
4G1VOIP
2.4/5GWIFI 2USB |
| ONU Model | CX60042R07D | |||
| 4G2.4/5GWIFI
2USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Comply with GPON G.984/G.988 standard and IEEE802.3ah.
> Support CATV interface for Video Service and remote control by Major OLT
> Support 802.11 b/g/n/ac/ax, 802.11ac WIFI6(4x4 MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
> Support IPv4/IPv6 dual stack
> Support IGMP transparent/snooping/proxy
> Support ACL and SNMP to configure data packet filter flexibly
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode，SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0、Stamdard USB3.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
|
CATV Interface |
2xRF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
LED |
15 LED,：PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、Normal 1(CATV1)/Normal 2(CATV2) |
|
Push-Button |
3, for Function of Power on/off, Reset, WPS |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1.5A |
|
Power Consumption |
<18W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
|
PWR |
On | The device is powered up. |
| Off | The device is powered down. | |
|
LOS |
Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
|
PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
LAN1~LAN4 |
On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
|
Normal (CATV) |
On | Input optical power is between -15dBm and 2dBm |
| Off | Input optical power is higher than 2dBm or lower than -15dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, etc.

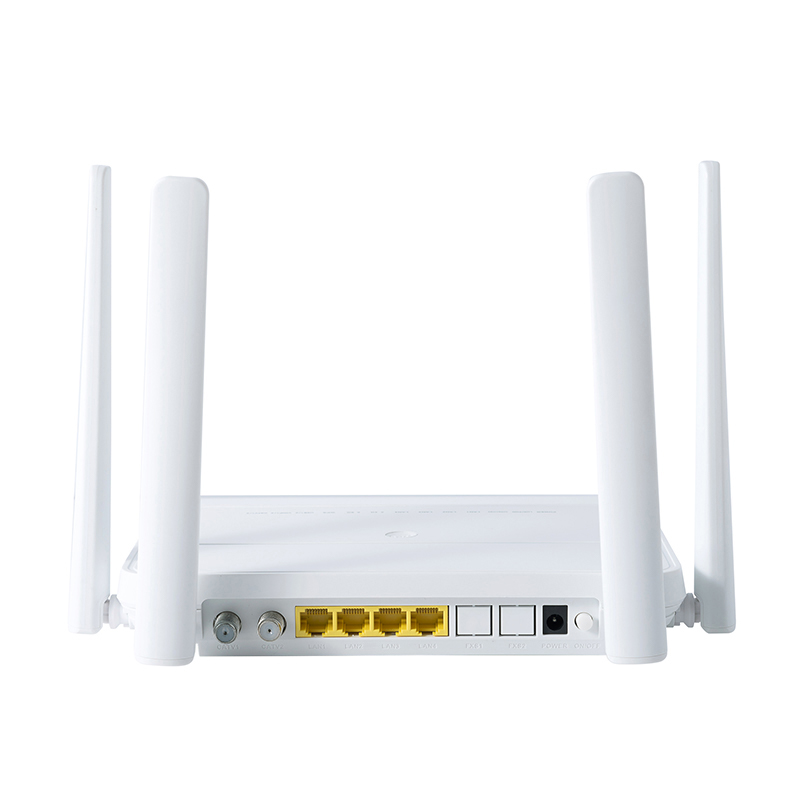

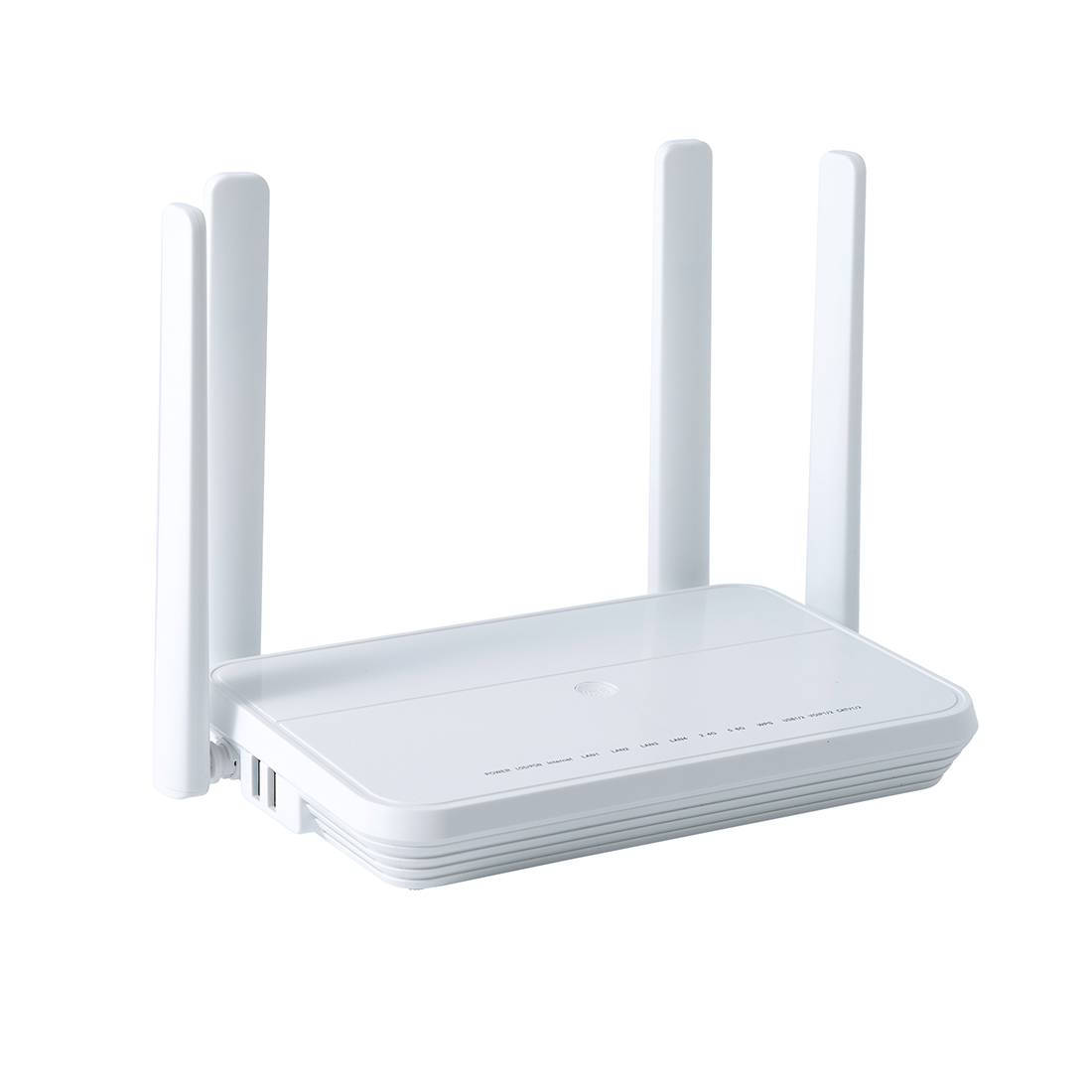

Product Appearance
Ordering Lnformation
|
Product Name |
Product Model |
Descriptions |
|
AX3000 WIFI6 4GE+WIFI+2CATV+2USB ONU |
CX62042R07D |
4*10/100/1000MNetwork port ;2 CATV ports；2 USB ports；external power supply adapter |
Regular Power Adapter
