Single Frequency XPON 1G1F WIFI CATV POTs USB ONU ONT Supplier

Short Description:

HGU (Home Gateway Unit) integrates 1G1F, WIFI, CATV, POTs and USB functions, suitable for a variety of FTTH solutions, and is designed to provide data access services for carrier-level FTTH applications. Single-frequency ONU ONT is based on mature and stable XPON technology, can automatically switch between EPON and GPON modes, and is compatible with EPON OLT or GPON OLT. It is easy to manage, flexible in configuration, and has good QoS guarantee. It uses Realtek 9603C chipset.


  • Single Size: 238x213xx44mm
  • Carton Size: 490x450x441mm
  • Product Model: CX21121R02C
  • Product Detail

    Product Tags

    Overview

    ● 1G1F+WIFI+CATV+VOIP+USB is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.

    ● 1G1F+WIFI+CATV+VOIP+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

    ● 1G1F+WIFI+CATV+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.

    ● 1G1F+WIFI+CATV+VOIP+USB complies with IEEE802.11b/g/n WIFI standards, adopts 2x2 MIMO, and has a maximum rate of up to 300Mbps.

    ● 1G1F+WIFI+CATV+VOIP+USB fully complies with ITU-T  IEEE802.3ah, ITU-T G.984  and other technical specifications.

    ● 1G1F+WIFI+CATV+VOIP+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.

    ● 1G1F+WIFI+CATV+VOIP+USB are designed by Realtek chipset 9603C.



    Product Feature and model list

    ONU Model

    CX21121R03C

    CX21021R03C

    CX20121R03C

    CX20021R03C





    Feature

    1G1F

    CATV

    VOIP

    2.4G

    USB

    1G1F

    CATV

    2.4G

    USB

    1G1F

    VOIP

    2.4G

    USB

    1G1F

    2.4G

    USB

    ONU Model

    CX21120R03C

    CX21020R03C

    CX20120R03C

    CX20020R03C





    Feature

    1G1F

    CATV

    VOIP

    2.4G

    1G1F

    CATV

    2.4G

    1G1F

    VOIP

    2.4G



    1G1F

    2.4/5G





    Feature

    XPON 1G1F WIFI CATV POTS USB ONU CX21121R02C

    > Supports Dual Mode (can access GPON/EPON OLT).

    > Supports GPON G.984/G.988 standards and IEEE802.3ah.

    > Support CATV (with AGC) interface to provide video services, which can be remotely controlled through mainstream OLT.

    > Support SIP Protocol for VoIP Service.

    > Integrated line testing compliant with GR-909 on POTS.

    > Support 802.11 b/g/n,WIFI (2X2 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.

    > Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

    > Support port mode of VLAN configuration.

    > Support LAN IP and DHCP Server configuration.

    > Support TR069 Remote Configuration and WEB Management.

    > Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

    > Support IPv4/IPv6 dual stack.

    > Support IGMP transparent/snooping/proxy.

    > Support PON and routing compatibility function.

    > Support VPN function.

    > In compliant with IEEE802.3ah standard.

    > Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)

    > Supports OAM/OMCI management.





    XPON 1G1F WIFI CATV POTS USB ONU CX21121R02C

    Specification

    Technical Item

    Details

    PON interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm; Downstream: 1490nm

    SC/APC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0.5~+5dBm

    Overload optical power: -3dBm(EPON) or - 8dBm(GPON)

    Transmission distance: 20KM

    LAN interface

    1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

    USB Interface

    Stamdard USB2.0

    WIFI Interface

    Compliant with IEEE802.11b/g/n

    Operating frequency: 2.400-2.4835GHz

    support MIMO, rate up to 300Mbps

    Support: multiple SSID

    TX power: 16--21dBm

    CATV Interface

    RF, optical power : +2~-15dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    POTS Port

    RJ11

    Max 1km distance

    Balanced Ring, 50V RMS

    LED

    8 LED, For Status of WIFI、WPS、PWR、LOS/PON、LAN1~LAN2、 NORMAL(CATV), FXS

    Push-Button

    3. For power on/off, reset, WPS function

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -10℃~+70℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1A

    Power Consumption

    <12W

    Net Weight

    <0.4kg

    Product size

    155mm×115mm×32.5mm(L×W×H)



    Panel lights and Introduction

    Pilot  Lamp

    Status

    Description

    WIFI

    On

    The WIFI interface is up.

    Blink

    The WIFI interface is sending or/and receiving data (ACT).

    Off

    The WIFI interface is down.

    WPS

    Blink

    The WIFI interface is securely establishing a connection.

    Off

    The WIFI interface does not establish a secure connection.

    PWR

    On

    The device is powered up.

    Off

    The device is powered down.

    LOS

    Blink

    The device doses not receive optical signals or with low signals.

    Off

    The device has received optical signal.

    PON

    On

    The device has registered to the PON system.

    Blink

    The device is registering the PON system.

    Off

    The device registration is incorrect.

    LAN1~LAN2

    On

    Port (LANx) is connected properly (LINK).

    Blink

    Port (LANx) is sending or/and receiving data (ACT).

    Off

    Port (LANx) connection exception or not connected.

    FXS

    On

    Telephone has registered to the SIP Server.

    Blink

    Telephone has registered and data transmission (ACT).

    Off

    Telephone registration is incorrect.

    Normal

    (CATV)

    On

    Input optical power is between -15dBm and 2dBm

    Off

    Input optical power is higher than 2dBm or lower than -15dBm

    Schematic diagram

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

    as

    Product Picture

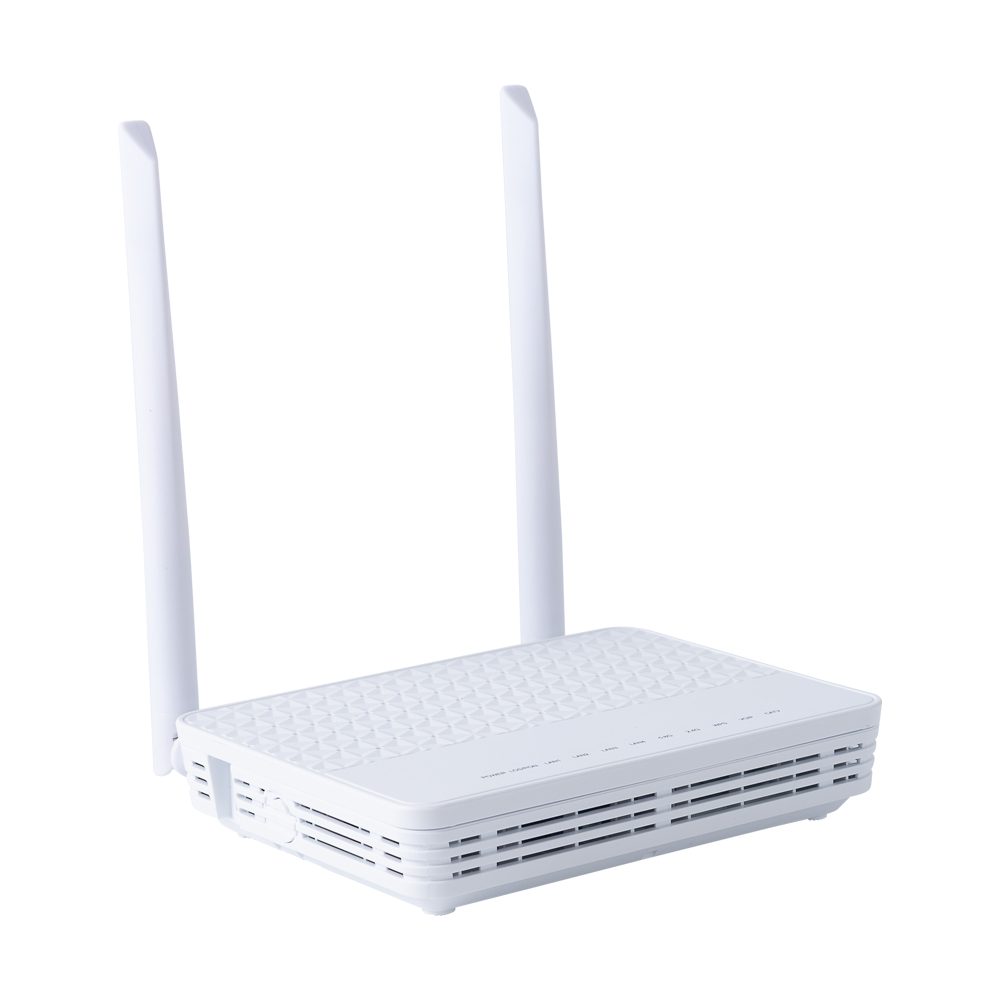

    XPON 1G1F WIFI CATV POTS USB ONU CX21121R02C
    XPON 1G1F WIFI CATV POTS USB ONU CX21121R02C

    Ordering information

    产品名称

    产品型号

    描述

    XPON 1G1F WIFI CATV POT USB ONU

    CX21121R03C

    1x10/100/1000Mbps和1x10/100Mbps 以太网接口,USB接口,1个PON接口,CATV AGS,1个POTS接口,支持Wi-Fi功能,塑料外壳,外置电源适配器
