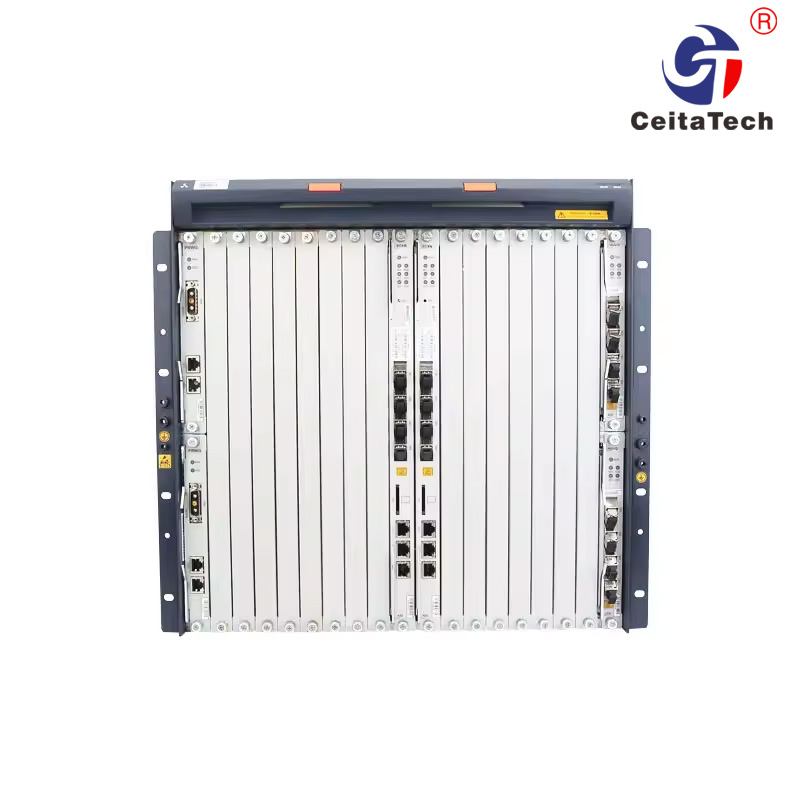

Enable
Password: zxr10
clock set xxxx Set (system time)
config ter
hostname FY_XXXXXXX_OLT_C320 (site name changed to XXXXX)
snmp-server community public view allview rw
snmp-server host xxxxxxxx version 2c public enable NOTIFICATIONS target-addr-name EMS_xxxxxxxxx isnmsserver udp-port 162
trap-report-compatibility v20
snmp-server packetsize 8192
vlan xx (network management VLAN)
ex
interface vlan xx (configure network management VLAN IP) ip address XXXXXXXX
ex
ip route 0.0.0.0 0.0.0.0 XXXX (Configure the default route)
add-rack rackno 1 racktype C320Rack
add-shelf rackno 1 shelfno 1 shelftype C320_SHELF add-card rackno 1 shelfno 1 slotno 1 ETGH
add-card rackno 1 shelfno 1 slotno 3 PRAM
add-subcard rackno 1 shelfno 1 slotno 4 subcardno 1 UCD3C/
interface gei_1/4/1 (determined by the on-site uplink port) no shutdown
switchport mode trunk
switchport vlan X,XX,1000-1999 tag root (configured according to the actual business VLAN)
Service configuration
- Add ONU (model and MAC address) under the PON interface
interface epon-olt_1/1/1
onu 1 type ZTE-D400 mac 0024.6875.7681 ip-cfg static onu 2 type ZTE-D400 mac 0019.130b.a68f ip-cfg static
2. Configure the ONU upstream port
interface epon-onu_1/1/1:1
admin enable
switchport mode trunk vport 1
service-port 1 vport 1 user-vlan 1000 vlan 1000 service-port 2 vport 1 user-vlan 1001 vlan 1001 service-port 3 vport 1 user-vlan 1002 vlan 1002 service-port 4 vport 1 user-vlan 1003 vlan 1003
3.Configure ONU service ports
pon-onu-mng epon-onu_1/1/1:1 auto-config
vlan port eth_0/1 mode tag vlan 1000 priority 0 vlan port eth_0/2 mode tag vlan 1001 priority 0
vlan port eth_0/3 mode tag vlan 1002 priority 0 vlan port eth_0/4 mode tag vlan 1003 priority 0 !
END
Write (Save configuration)
Add NE to the NMS: Select C320V2.0/C300V2.0 NE when adding the NMS.
