Bridge mode and routing mode are two modes of ONU (Optical Network Unit) in network configuration. They each have unique characteristics and applicable scenarios. The professional meaning of these two modes and their role in network communication will be explained in detail below.
First of all, bridge mode is a mode that connects multiple adjacent networks through bridges to form a single logical network. In the bridge mode of the ONU, the device mainly plays the role of a data channel. It does not perform additional processing on the data packets, but simply forwards the data packets from one port to another port. In this mode, the ONU is similar to a transparent bridge, allowing different network devices to communicate with each other on the same logical level. The advantages of bridge mode are its simple configuration and high forwarding efficiency. It is suitable for scenarios that require high network performance and do not require complex network functions.

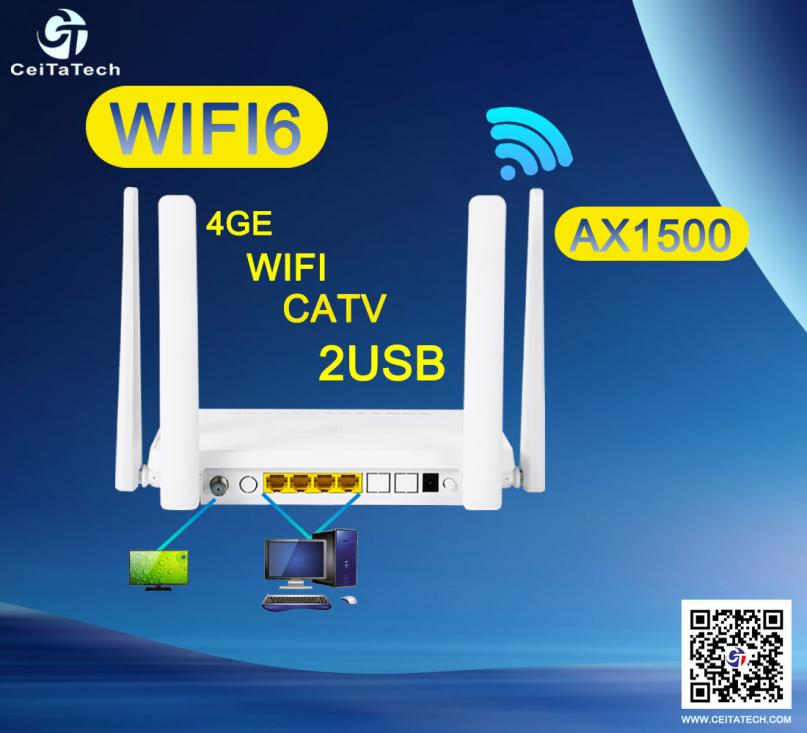

WIFI6 AX1500 4GE WIFI CATV 2USB ONU ONT
However, bridge mode also has some limitations. Since all devices are in the same broadcast domain and lack an effective isolation mechanism, there may be security risks. In addition, when the network scale is large or more complex network functions need to be implemented, the bridge mode may not be able to meet the needs.
In contrast, routing mode provides more flexible and powerful network functions. In routing mode, ONU not only serves as a data channel, but also assumes the routing function. It can forward data packets from one network to another according to a preset routing table to achieve communication between different networks. Routing mode also has network isolation and security protection functions, which can effectively prevent network conflicts and broadcast storms and improve network security.
In addition, routing mode also supports more complex network configuration and management functions. For example, by configuring functions such as routing protocols and access control lists, more refined network traffic control and security policies can be achieved. This makes the routing mode have broad application value in large networks, multi-service bearers, and scenarios that require high security.
However, the configuration of routing mode is relatively complex and requires professional network knowledge and experience. At the same time, due to the need for routing and forwarding operations, the forwarding efficiency of routing mode may be slightly lower than that of bridge mode. Therefore, when choosing to use bridge mode or routing mode, you need to weigh it based on specific network requirements and application scenarios.
