Realtek 9601D production test command setting interface

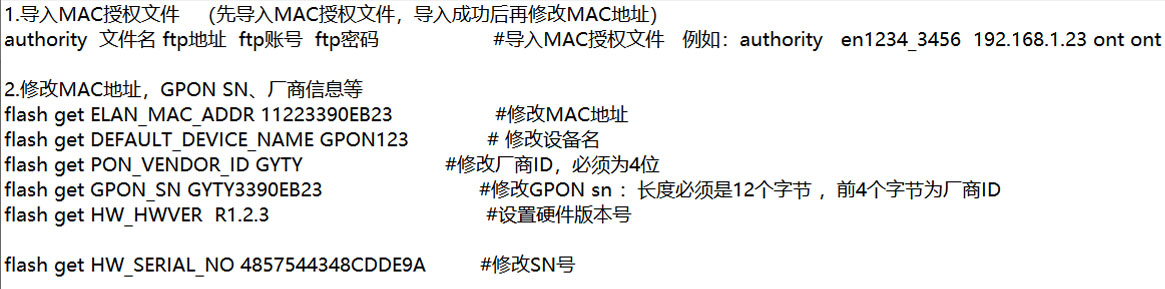

1. Import MAC authorization file (import MAC authorization file first, and then modify MAC address after successful import)

authority file name ftp address ftp account ftp password #Import MAC authorization file For example: authority en1234_3456 192.168.1.23 ont ont.





2. Modify MAC address, GPON SN, manufacturer information, etc.

flash get ELAN_MAC_ADDR 11223390EB23 #Modify MAC address

flash get DEFAULT_DEVICE_NAME GPON123 #Modify device name

flash get PON_VENDOR_ID GYTY #Modify manufacturer ID, must be 4 digits

flash get GPON_SN GYTY3390EB23 #Modify GPON sn: the length must be 12 bytes, the first 4 bytes are the manufacturer ID

flash get HW_HWVER R1.2.3 #Set hardware version number

flash get HW_SERIAL_NO 4857544348CDDE9A #Modify SN number

3. Indicator light and button test

led test start #Enter button detection and indicator light test mode

led test allledon #All indicators are on, except the power light

led test allledoff #All indicators are off, except the power light

cat /proc/led_test #Button detection, press the button for 2~3s, read the command, and return RESET success!, indicating that the button is OK

led test stop #Indicator light returns to normal mode

4. Factory reset

led test reset //Factory reset After executing this command, the device will automatically restart

5. MAC address authorization check.

authority get status #Check whether the MAC address is legal, modify the mac address and restart and query again; MAC Authorize from auth1, Authorize Successfully!



cat etc/vendor
