1. Fault classification and identification
1. Luminous failure: The optical module cannot emit optical signals.
2. Reception failure: The optical module cannot correctly receive optical signals.
3. Temperature is too high: The internal temperature of the optical module is too high and exceeds the normal operating range.
4. Connection problem: The fiber connection is poor or broken.

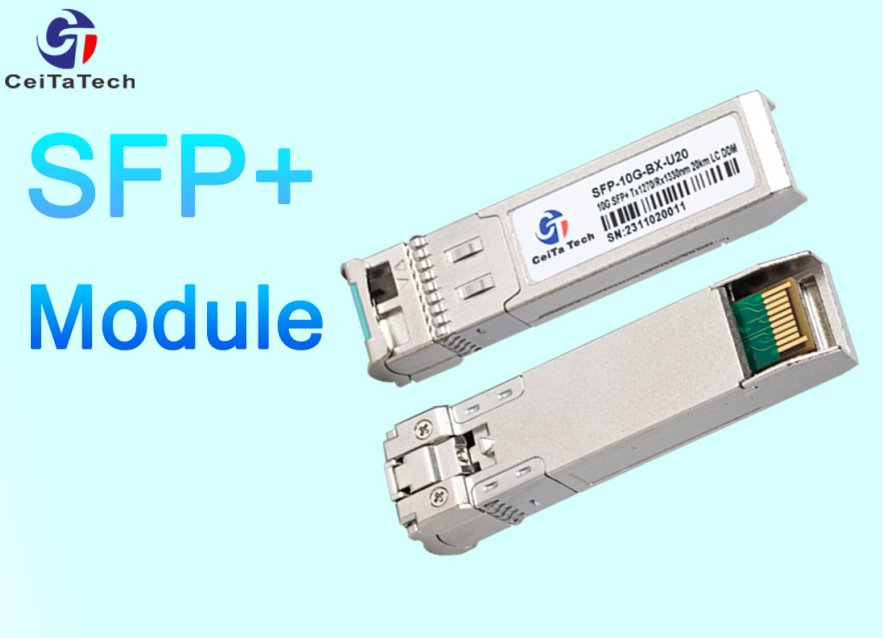

10Gbps SFP+ 1330/1270nm 20/40/60km LC BIDI Module
2. Failure cause analysis
1. The laser is aged or damaged.
2. Receiver sensitivity decreases.
3. Thermal control failure.
4. Environmental factors: such as dust, pollution, etc.
3. Maintenance methods and techniques
1. Cleaning: Use professional cleaner to clean the optical module housing and fiber end face.
2. Restart: Try shutting down and restarting the optical module.
3. Adjust configuration: Check and adjust the configuration parameters of the optical module.
4. Testing and Diagnosis Steps
1. Use an optical power meter to test the luminous power.
2. Use a spectrum analyzer to detect spectral characteristics.
3. Check fiber connections and attenuation.
5. Replace or repair modules
1. If the test results show that the internal components of the optical module are damaged, consider replacing the optical module.
2. If it is a connection problem, check and repair the fiber optic connection.
6. System restart and debugging
1. After replacing or repairing the optical module, restart the system.
2. Check the system log to ensure there are no other failures.
7. Failure prevention measures and maintenance suggestions
1. Clean the optical module and optical fiber regularly.
2. Keep the working environment of the optical module clean and tidy to avoid dust and pollution.
3. Regularly check the fiber optic connection to ensure stability and reliability.
8. Precautions
- During operation, avoid direct contact with the optical components of the optical module to prevent damage.
- When replacing an optical module, make sure the new module is compatible with the system.
- Follow the operating and maintenance instructions provided by the manufacturer.
Summarize
When dealing with optical module faults, you should first identify the fault type, analyze the cause of the fault, and then choose appropriate repair methods and techniques. During the repair process, follow the testing and diagnostic steps to ensure that the replaced or repaired optical module can work properly. At the same time, take preventive measures and maintenance recommendations to reduce the probability of failure. During operation, pay attention to comply with safety regulations to ensure personal and equipment safety.
