>>User name:admin
>>User password:
Username or password invalid.
>>User name:root
>>User password:
Huawei Integrated Access Software (MA5608T).
Copyright(C) Huawei Technologies Co., Ltd. 2002-2013. All rights reserved.
—————————————————————————–
User last login information:
—————————————————————————–
Access Type : Telnet
IP-Address : 10.11.104.100
Login Time : 2021-12-07 09:42:33+08:00
Logout Time : 2021-12-07 09:43:55+08:00
—————————————————————————–
—————————————————————————–
All user fail login information:
—————————————————————————–
Access Type IP-Address Time Login Times
—————————————————————————–
Telnet 192.168.2.211 2021-12-07 09:48:17+08:00 4
Telnet 192.168.2.6 2021-12-06 23:39:31+08:00 3
—————————————————————————–
User root has used a default password. Change the password in time.
MA5608T>enable
MA5608T#config
MA5608T(config)#display ont autofind all
Failure: The automatically found ONTs do not exist

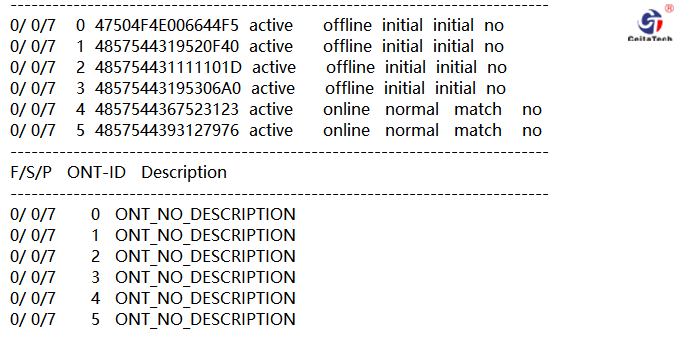

MA5608T(config)#display ont info 0 0 7 all
—————————————————————————–
F/S/P ONT SN Control Run Config Match Protect
ID flag state state state side
—————————————————————————–
0/ 0/7 0 47504F4E006644F5 active offline initial initial no
0/ 0/7 1 4857544319520F40 active offline initial initial no
0/ 0/7 2 485754431111101D active offline initial initial no
0/ 0/7 3 48575443195306A0 active offline initial initial no
0/ 0/7 4 4857544367523123 active online normal match no
0/ 0/7 5 4857544393127976 active online normal match no
—————————————————————————–
F/S/P ONT-ID Description
—————————————————————————–
0/ 0/7 0 ONT_NO_DESCRIPTION
0/ 0/7 1 ONT_NO_DESCRIPTION
0/ 0/7 2 ONT_NO_DESCRIPTION
0/ 0/7 3 ONT_NO_DESCRIPTION
0/ 0/7 4 ONT_NO_DESCRIPTION
0/ 0/7 5 ONT_NO_DESCRIPTION
—————————————————————————–
In port 0/ 0/7 , the total of ONTs are: 6, online: 2
—————————————————————————–
MA5608T(config)#display mac-address all
{ <cr>||<K> }:
Command:
display mac-address all
It will take some time, please wait…
———————————————————————–
SRV-P BUNDLE TYPE MAC MAC TYPE F /S /P VPI VCI VLAN ID
INDEX INDEX
———————————————————————–
- - eth 448a-5b4d-912a dynamic 0 /2 /2 - - 100
- - eth 18f2-2c03-2336 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f646 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f650 dynamic 0 /2 /2 - - 100
- - eth 081f-713a-e55f dynamic 0 /2 /2 - - 100
- - eth 0411-1953-06a0 dynamic 0 /2 /2 - - 100
———————————————————————–
Total: 6
Note: F–Frame, S–Slot, P–Port, F/S/P indicates PW Index for PW,
A–The MAC address is learned or configured on the aggregation port,
VPI indicates CM index for DOCSIS,
v/e–vlan/encap, pritag–priority-tagged,
ppp–pppoe, ip–ipoe, ip4–ipv4oe, ip6–ipv6oe
MA5608T(config)#service-port vlan 10 ?
———————————————
Command of config Mode:
———————————————
adsl ADSL Port
atm ATM Port
epon EPON Port
eth ETH Port
gpon GPON Port
port Xpon end to end access
shdsl SHDSL Port
vdsl VDSL port
MA5608T(config)#service-port vlan 100 ?
———————————————
Command of config Mode:
———————————————
adsl ADSL Port
atm ATM Port
epon EPON Port
eth ETH Port
gpon GPON Port
port Xpon end to end access
shdsl SHDSL Port
vdsl VDSL port
MA5608T(config)#service-port vlan 100 gpon 0/0/7 ont 5 ?
———————————————
Command of config Mode:
———————————————
eth ETH port type
gemport Gem Index
iphost Set by iphost
vdsl VDSL port type
MA5608T(config)#service-port vlan 100 gpon 0/0/7 ont 5 gemport 1 multi-service user-vlan 100 ?
———————————————
Command of config Mode:
———————————————
<cr> Please press ENTER to execute command
bundle Service-port bundle
inbound Inbound (from outside of device to inside of device)
rx-cttr Rx Traffic Index ( from standard port to service port)
tag-transform Set VLAN transform mode
user-encap By user VLAN and encap type
MA5608T(config)#service-port vlan 100 gpon 0/0/7 ont 5 gemport 1 multi-service user-vlan 100 tag-transform translate
{ <cr>|bundle<K>|inbound<K>|rx-cttr<K> }:
Command:
service-port vlan 100 gpon 0/0/7 ont 5 gemport 1 multi-service user-vlan 100 tag-transform translate
MA5608T(config)#
MA5608T(config)#
MA5608T(config)#
MA5608T(config)#quit
MA5608T#display mac-address all
{ <cr>||<K> }:
Command:
display mac-address all
It will take some time, please wait…
———————————————————————–
SRV-P BUNDLE TYPE MAC MAC TYPE F /S /P VPI VCI VLAN ID
INDEX INDEX
———————————————————————–
- - eth 448a-5b4d-912a dynamic 0 /2 /2 - - 100
- - eth 18f2-2c03-2336 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f646 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f650 dynamic 0 /2 /2 - - 100
- - eth 081f-713a-e55f dynamic 0 /2 /2 - - 100
- - eth 0411-1953-06a0 dynamic 0 /2 /2 - - 100
1 - gpon 2494-9312-7977 dynamic 0 /0 /7 5 1 100
———————————————————————–
Total: 7
Note: F–Frame, S–Slot, P–Port, F/S/P indicates PW Index for PW,
A–The MAC address is learned or configured on the aggregation port,
VPI indicates CM index for DOCSIS,
v/e–vlan/encap, pritag–priority-tagged,
ppp–pppoe, ip–ipoe, ip4–ipv4oe, ip6–ipv6oe
MA5608T#
MA5608T#
MA5608T#
MA5608T#
MA5608T#
MA5608T#display mac-address all
{ <cr>||<K> }:
Command:
display mac-address all
It will take some time, please wait…
———————————————————————–
SRV-P BUNDLE TYPE MAC MAC TYPE F /S /P VPI VCI VLAN ID
INDEX INDEX
———————————————————————–
- - eth 448a-5b4d-912a dynamic 0 /2 /2 - - 100
- - eth 18f2-2c03-2336 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f646 dynamic 0 /2 /2 - - 100
- - eth 000c-29b4-f650 dynamic 0 /2 /2 - - 100
- - eth 081f-713a-e55f dynamic 0 /2 /2 - - 100
- - eth 0411-1953-06a0 dynamic 0 /2 /2 - - 100
1 - gpon 2494-9312-7977 dynamic 0 /0 /7 5 1 100
———————————————————————–
Total: 7
Note: F–Frame, S–Slot, P–Port, F/S/P indicates PW Index for PW,
A–The MAC address is learned or configured on the aggregation port,
VPI indicates CM index for DOCSIS,
v/e–vlan/encap, pritag–priority-tagged,
ppp–pppoe, ip–ipoe, ip4–ipv4oe, ip6–ipv6oe
MA5608T#
MA5608T#
