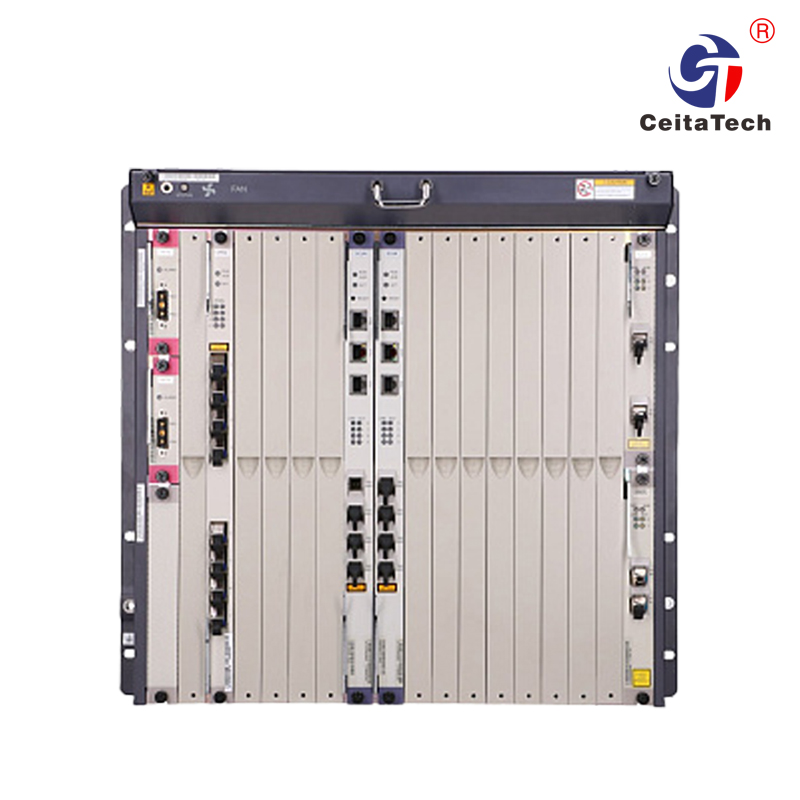

Huawei OLT command
Language switching command: switch language-mode
MA5680T(config)#display version //Check the device configuration version
MA5680T(config)#display board 0 //Check the status of the device board, this command is most commonly used
————————————————————————-
SlotID BoardName Status SubType0 SubType1 Online/Offline
————————————————————————-
0 H806GPBD Normal
1
2 H801MCUD Active_normal CPCA
3
4 H801MPWC Normal
5
————————————————————————-
MA5608T(config)#
MA5608T(config)#board confirm 0//For the automatically discovered board, the board needs to be confirmed before it can be used.
//For the unconfirmed board, the board hardware operation indicator light is normal, but the service port cannot work.
0 frame 0 slot board has been confirmed //0 frame 0 slot board has been confirmed
0 frame 4 slot board has been confirmed //0 frame 4 slot board has been confirmed
MA5608T(config)#
Method 1: Add a new ONU and enable it to obtain IP through VLAN 40. Follow the steps below to configure
① Check the unregistered ONU to see which PON port it is on the OLT and what the SN number of the unregistered ONU is
MA5608T(config)#display ont autofind all
② Enter the GPON board to add and register the ONU;
MA5608T(config)#interface gpon 0/0
(Note: SN should be changed according to the actual situation. The following 7 refers to the PON port number (OLT PON port 7). After adding successfully, it will prompt that ONT x has been added successfully, such as ONU No. 11)
MA5608T(config-if-gpon-0/0)#ont add 7 sn-auth HWTC19507F78 OMCI ont-lineprofile-name line-profile_100 ont-srvprofile-id 100
MA5608T(config-if-gpon-0/0)#ont add 0 sn-auth 485754431955BF96 OMCI ont-lineprofile-name test ont-srvprofile-id 10
ont add 0 sn-auth 485754431952D4C0 omci ont-lineprofile-id 10 ont-srvprofile-id 10
MA5603T(config)#service-port vlan 1000 gpon 0/0/0 ont 13 gemport 1 multi-service user-vlan 1000
Check the GPON DDM value: MA5608T(config-if-gpon-0/0)#display ont optical-info 7 13
Check GPON registration status: MA5608T(config-if-gpon-0/0)#display port state all
F/S/P 0/0/0
Optical Module status Online
Port state Offline
Laser state Normal
Available bandwidth(Kbps) 1238110
Temperature(C) 29
TX Bias current(mA) 23
Supply Voltage(V) 3.22
TX power(dBm) 3.31
Illegal rogue ONT Inexistent
Max Distance(Km) 20
Wave length(nm) 1490
Fiber type Single Mode
Length(9μm)(km) 20.0
—————————————————————————-
F/S/P 0/0/1
Optical Module status Online
Port state Offline
Laser state Normal
Available bandwidth(Kbps) 1238420
Temperature(C) 34
TX Bias current(mA) 30
Supply Voltage(V) 3.22
TX power(dBm) 3.08
Illegal rogue ONT Inexistent
Max Distance(Km) 20
Wave length(nm) 1490
Fiber type Single Mode
Length(9μm)(km) 20.0
—————————————————————————-
F/S/P 0/0/2
Optical Module status Online
Port state Offline
Laser state Normal
Available bandwidth(Kbps) 1239040
Temperature(C) 34
TX Bias current(mA) 27
Supply Voltage(V) 3.24
TX power(dBm) 2.88
Illegal rogue ONT Inexistent
Max Distance(Km) 20
Wave length(nm) 1490
Fiber type Single Mode
Length(9μm)(km) 20.0
—————————————————————————-
F/S/P 0/0/3
Optical Module status Online
Port state Offline
Laser stateNormal
Available bandwidth(Kbps) 1239040
Temperature(C) 35
TX Bias current(mA) 25
Supply Voltage(V) 3.23
TX power(dBm) 3.24
Illegal rogue ONT Inexistent
Max Distance(Km) 20
Wave length(nm) 1490
Fiber type Single Mode
Length(9μm)(km) 20.0
View GPON registration information: MA5608T(config-if-gpon-0/0)#display ont info 7 0
——————————————————————————–
F/S/P : 0/0/7
ONT-ID : 0
Control flag : active
Run state : online
Config state : normal
Match state : match
DBA type : SR
ONT distance(m) : 64
ONT battery state : -
Memory occupation : -
CPU occupation : -
Temperature : -
Authentic type : SN-auth
SN : 48575443B0704FD7 (HWTC-B0704FD7)
Management mode : OMCI
Software work mode : normal
Isolation state : normal
ONT IP 0 address/mask : -
Description : ONT_NO_DESCRIPTION
Last down cause : -
Last up time : 2021-04-27 22:56:47+08:00
Last down time : -
Last dying gasp time : –
ONT online duration : 0 day(s), 0 hour(s), 0 minute(s), 25 second(s)
Type C support : Not support
Interoperability-mode : ITU-T
—————————————————————————–
VoIP configure method : Default
—————————————————————————–
Line profile ID : 10
Line profile name : test
—————————————————————————–
FEC upstream switch: Disable
OMCC encrypt switch: Off
Qos mode: PQ
Mapping mode: VLAN
TR069 management: Disable
TR069 IP index: 0
View GPON registration information: MA5608T(config-if-gpon-0/0)#display ont info 7 0
Frame/slot/port: 0/0/7
ONT number: 0
Control flag: Activated
Run flag: Offline
Configuration status: Initial status
Matching status: Initial status
DBA mode: -
ONT ranging distance (m): -
ONT battery status: -
Memory utilization: -
CPU utilization: -
Temperature: -
Authentication method: SN authentication
Serial number: 72746B6711111111 (rtkg-11111111)
Management mode: OMCI
Working mode: Normal
Isolation status: Normal
Description: ONT_NO_DESCRIPTION
Last offline reason: -
Last online time: -
Last offline time: -
Last power-off time: -
ONT online time: -
Whether Type C is supported: -
ONT intercommunication mode: unknown
—————————————————————————–
VoIP configuration mode: default
—————————————————————————–
Line template number: 10
Line template name: test
Uplink FEC switch: Disable
OMCC encryption switch: Off
QoS mode: PQ
Mapping mode: VLAN
TR069 management mode: Disable
TR069 IP index: 0
—————————————————————————–
Description: * Identifies discrete TCONT (reserved TCONT)
—————————————————————————–
<T-CONT 0> DBA template ID: 1
<T-CONT 1> DBA template ID: 10
<GEM Index 1>
——————————————————————–
| Service type: ETH | Downlink encryption: Off | Cascade attribute: Off | GEM-CAR: – |
| Uplink priority: 0 | Downlink priority: – |
——————————————————————–
Mapping index VLAN Priority Port type Port index Binding group ID Flow-CAR Transparent transmission
——————————————————————–
1 100 – - – - – -
——————————————————————–
Note: Use the display traffic table ip command to view the traffic table configuration
—————————————————————————–
Service template number: 10
Service template name: test
—————————————————————————–
Port type Number of ports
—————————————————————————–
POTS adaptive
ETH adaptive
VDSL 0
TDM 0
MOCA 0
CATV adaptive
—————————————————————————–
TDM type: E1
TDM service type: TDMoGem
MAC address learning function: Enable
ONT transparent transmission function: Disable
Loop detection switch: Disable
Loop port automatic shutdown: Enable
Loop detection sending frequency: 8 (packets/second)
Loop recovery detection cycle: 300 (seconds)
Multicast forwarding mode: not concerned
Multicast forwarding VLAN: -
Multicast mode: not concerned
Upstream IGMP message forwarding mode: not concerned
Upstream IGMP message forwarding VLAN: -
Upstream IGMP message priority: -
Native VLAN option: concerned
Upstream PQ message color policy: -
Downstream PQ message color policy: -
—————————————————————————–
Port type Port ID QinQ mode Priority policy Upstream traffic Downstream traffic
Template ID Template ID
ETH 1 Don’t care Don’t care Don’t care Don’t care
ETH 2 Don’t care Don’t care Don’t care
ETH 3 Don’t care Don’t care Don’t care Don’t care
ETH 4 Don’t care Don’t care Don’t care Don’t care
ETH 5 Don’t care Don’t care Don’t care Don’t care
ETH 6 Don’t care Don’t care Don’t care Don’t care
ETH 7 Don’t care Don’t care Don’t care Don’t care
ETH 8 Don’t care Don’t care Don’t care
—————————————————————————–
Note: * The port traffic template that indicates this ONT is configured by discrete commands.
Use the display traffic table ip command to view the traffic table configuration.
—————————————————————————–
Port Type Port ID Downstream Processing Method Unmatched Message Policy
—————————————————————————–
ETH 1 Processing Discard
ETH 2 Processing Discard
ETH 3 Process Discard
ETH 4 Process Discard
ETH 5 Process Discard
ETH 6 Process Discard
ETH 7 Process Discard
ETH 8 Process Discard
—————————————————————————–
Port Type Port ID DSCP Mapping Template Index
—————————————————————————–
ETH 1 0
ETH 2 0
ETH 3 0
ETH 4 0
ETH 5 0
ETH 6 0
ETH 7 0
ETH 8 0
IPHOST 1 0
—————————————————————————–
Port Type Port ID IGMP Message IGMP Message IGMP Message MAC Address
Forwarding Mode Forwarding VLAN Priority Maximum Learning Number
—————————————————————————–
ETH 1 – - – Unlimited
ETH 2 – - – Unlimited
ETH 3 – - – Unlimited
ETH 4 – - – Unlimited
ETH 5 – - – Unlimited
ETH 6 – - – Unlimited
ETH 7 – - – Unlimited
ETH 8 – - – Unlimited
—————————————————————————–
Alarm policy template number: 0
Alarm policy template name: alarm-policy_0
③Configure VLAN for the network port (SFU needs to be configured; HGU can be configured or not)
(Note: 7 1 eth 1 means OLT’s PON 7 port, 11th ONU, the number of ONUs should be changed according to the actual situation, and the number of newly added ONUs will be prompted when adding)
MA5608T(config-if-gpon-0/0)#ont port native-vlan 7 11 eth 1 vlan 40
④Configure service port service-port (both SFU and HGU need to be configured)
MA5608T(config-if-gpon-0/0)#quit
(Note: gpon 0/0/7 ont 11 PON 7 port, 11th ONU. Change according to the actual situation, as above.)
MA5608T(config)#service-port vlan 40 gpon 0/0/7 ont 11 gemport 1 multi-service user-vlan 40 tag-transform translate
Method 2: Replace the existing ONU and enable it to obtain IP through VLAN 40
① Check the unregistered ONU to see which PON port of the OLT it is on and what the SN number of the unregistered ONU is
MA5608T(config)#display ont autofind all
② Enter the GPON board gpon 0/0 to replace the ONU;
MA5608T(config)#interface gpon 0/0
(Note: SN should be changed according to the actual situation. The following 7 refers to the PON port number (OLT PON 7 port), which ONU to replace, for example, replace ONU No. 1 below)
MA5608T(config-if-gpon-0/0)#ont modify 0 12 sn-auth 485754431952D4C0
