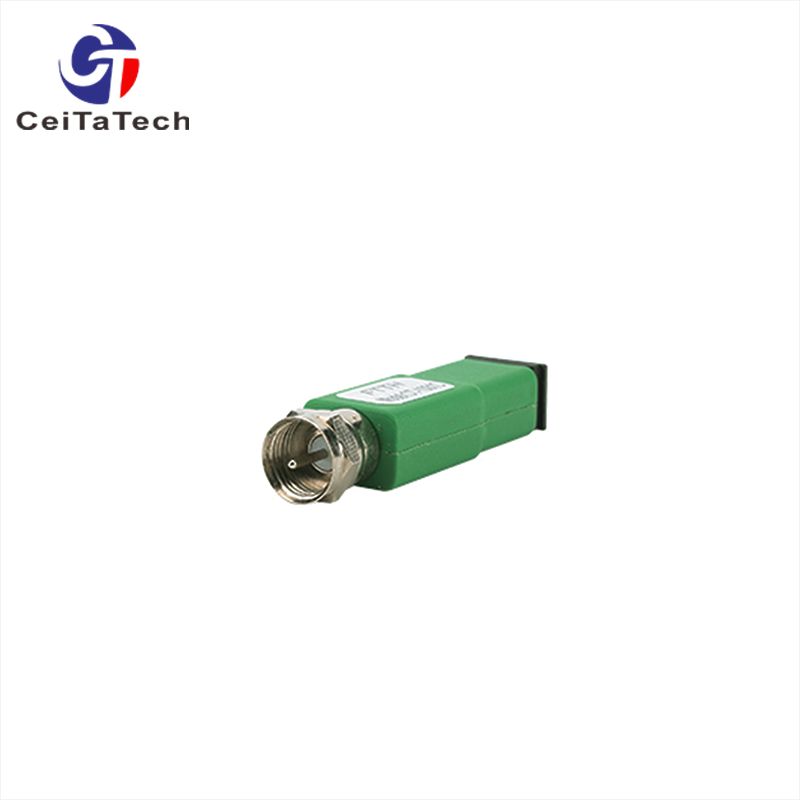

CeiTa’s CT1001C series CATV photoelectric converter is specially designed for digital TV optical fiber to the home. This device uses a high-performance optical receiver, which not only requires no additional power supply, but also achieves zero power consumption. When the input optical power Pin is -1dBm, its output level Vo can still be maintained at 68dBμV, which makes it extremely economical and flexible in triple-network integration and fiber-to-the-home network applications. In addition, the appearance of CT1001C is made of enamel material, showing nobility and elegance. There are two options for its optical port mode:
CT-1001C( 47~ 1050MHz) FTTH CATV O/E Converter
1. CT1001C: CATV working wavelength is 1260~1620nm.
2.CT1001C/WF: Built-in 1310/1490nm filter, suitable for single-fiber four-wavelength system, CATV working wavelength 1550nm.
Features
1.No power supply required, no power consumption
2.45~1050MHz working bandwidth
3.Output level=68dBμV (Pin=-1dBm)
Applications
1.CATV FTTH
2.TRIPLE PLAY
3.FTTH PON
Post time: Jan-26-2024
