Fiber Optic Internet Modem XPON ONU ONT 1G3F WIFI CATV POTs USB
Overview
● 1G3F+WIFI+CATV+VOIP+USB is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G3F+WIFI+CATV+VOIP+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G3F+WIFI+CATV+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
● 1G3F+WIFI+CATV+VOIP+USB complies with IEEE802.11b/g/n WIFI standards, adopts 2x2 MIMO, and has a maximum rate of up to 300Mbps.
● 1G3F+WIFI+CATV+VOIP+USB fully complies with ITU-T IEEE802.3ah, ITU-T G.984 and other technical specifications.
● 1G3F+WIFI+CATV+VOIP+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 1G3F+WIFI+CATV+VOIP+USB are designed by Realtek chipset 9603C.
Product Feature and model list
|
ONU Model |
CX21141R03C |
CX21041R03C |
CX20141R03C |
CX20041R03C |
|
Feature |
1G3F CATV VOIP 2.4GWIFI USB |
1G3F CATV 2.4GWIFI USB |
1G3F VOIP 2.4GWIFI USB |
1G3F 2.4GWIFI USB |
|
ONU Model |
CX21140R03C |
CX21040R03C |
CX20140R03C |
CX20040R03C |
|
Feature |
1G3F CATV VOIP 2.4GWIFI |
1G3F CATV 2.4GWIFI
|
1G3F VOIP 2.4GWIFI
|
1G3F 2.4GWIFI
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support CATV (with AGC) interface to provide video services, which can be remotely controlled through mainstream OLT.
> Support SIP Protocol for VoIP Service.
> Integrated line testing compliant with GR-909 on POTS.
> Support 802.11 b/g/n,WIFI (2X2 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.
> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support PON and routing compatibility function.
> Support VPN function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps Support: multiple SSID TX power: 16--21dBm |
|
CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
10 LED, For Status of WIFI、WPS、PWR、LOS/PON、LAN1~LAN4、 NORMAL(CATV), FXS |
|
Push-Button |
3. For power on/off, reset, WPS function |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -10℃～+70℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<12W |
|
Net Weight |
<0.4kg |
|
Product size |
155mm×115mm×32.5mm(L×W×H) |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
|
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

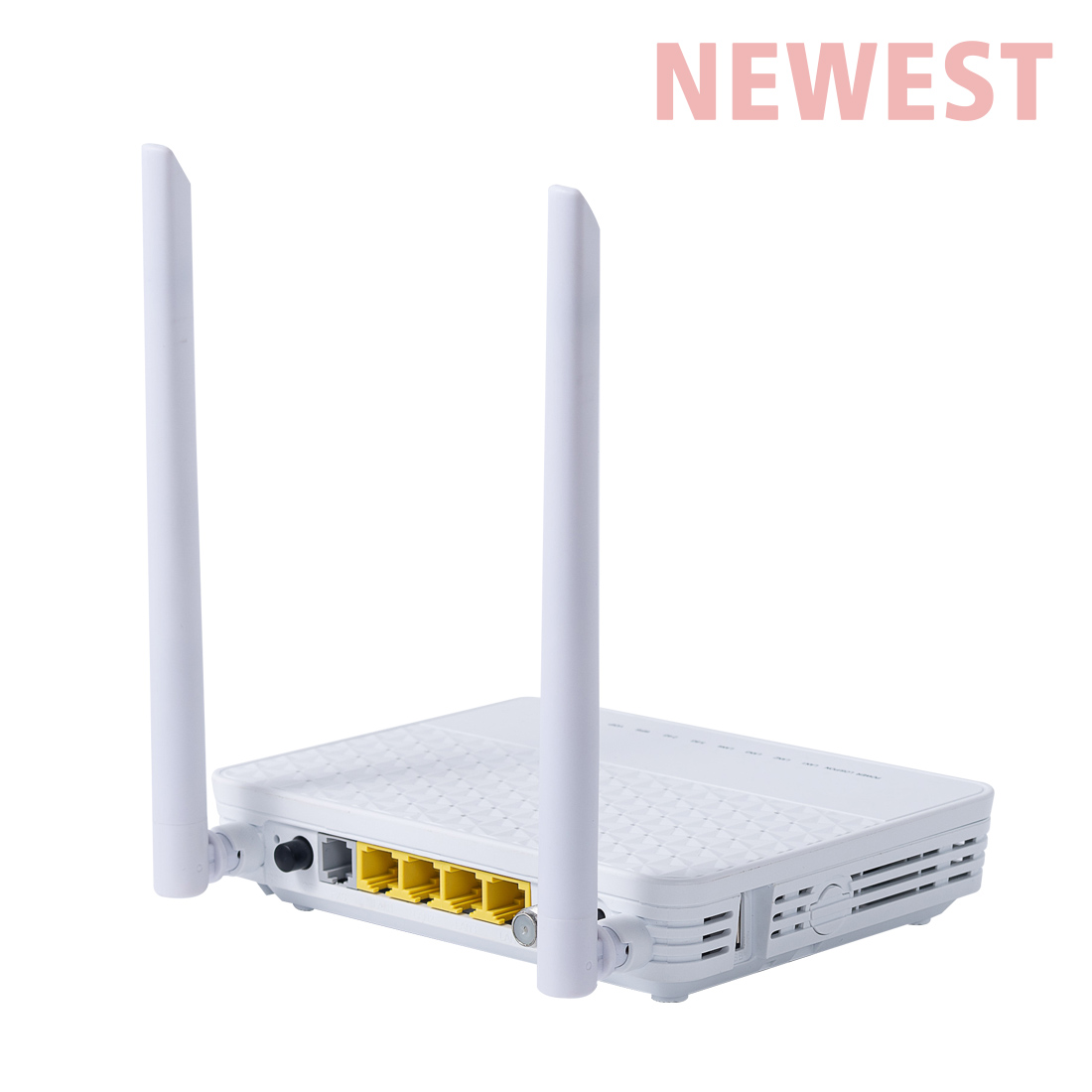

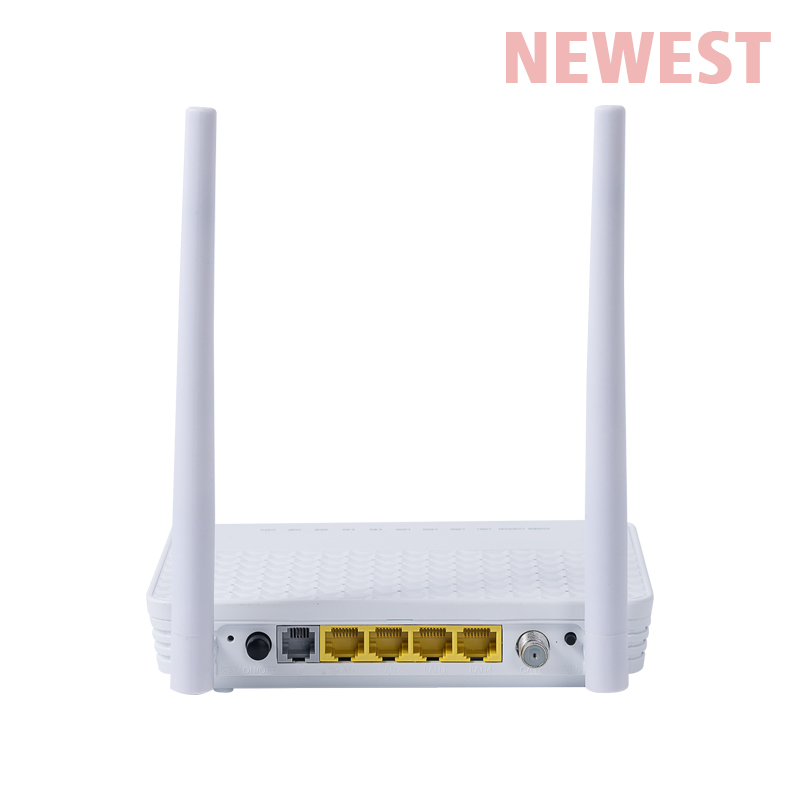

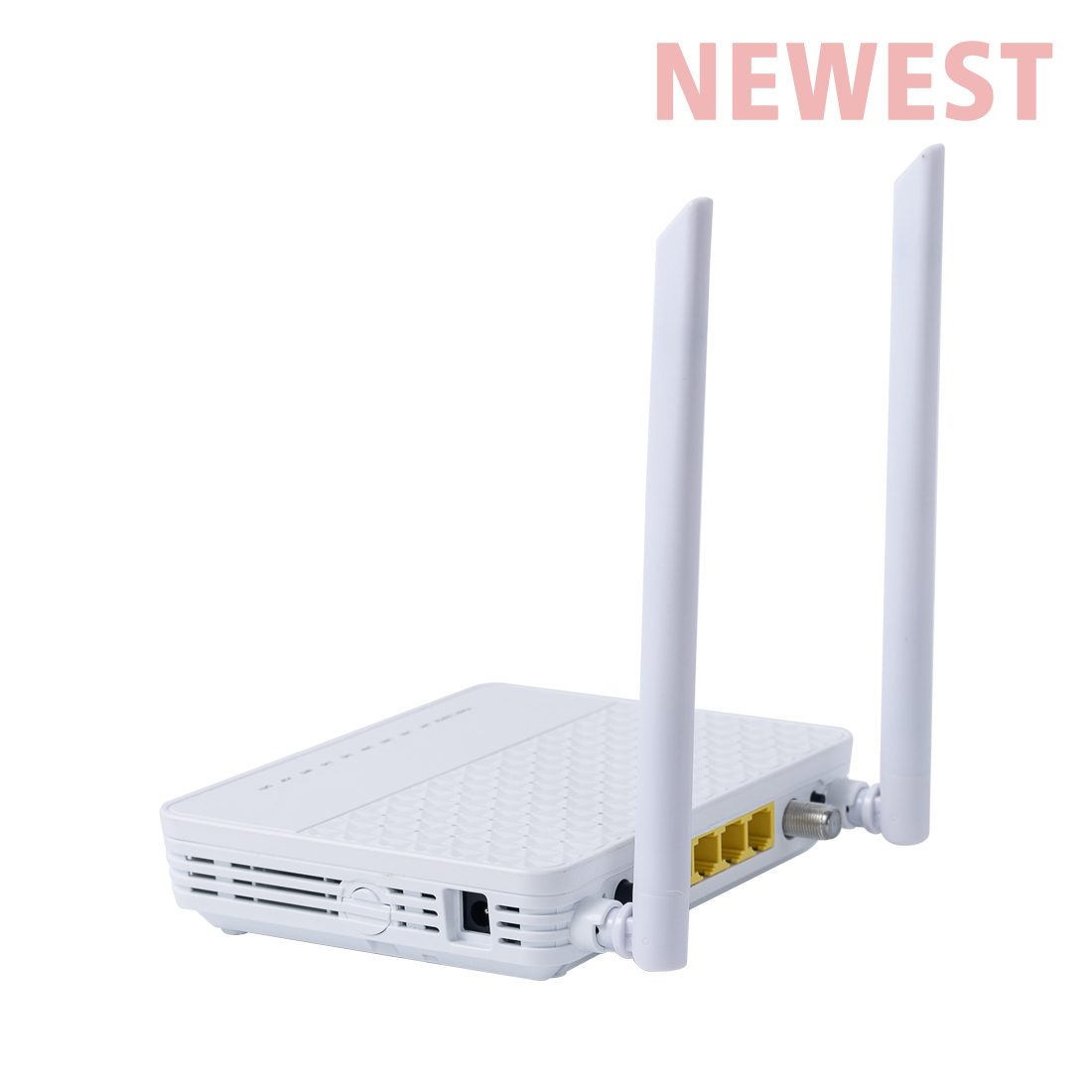

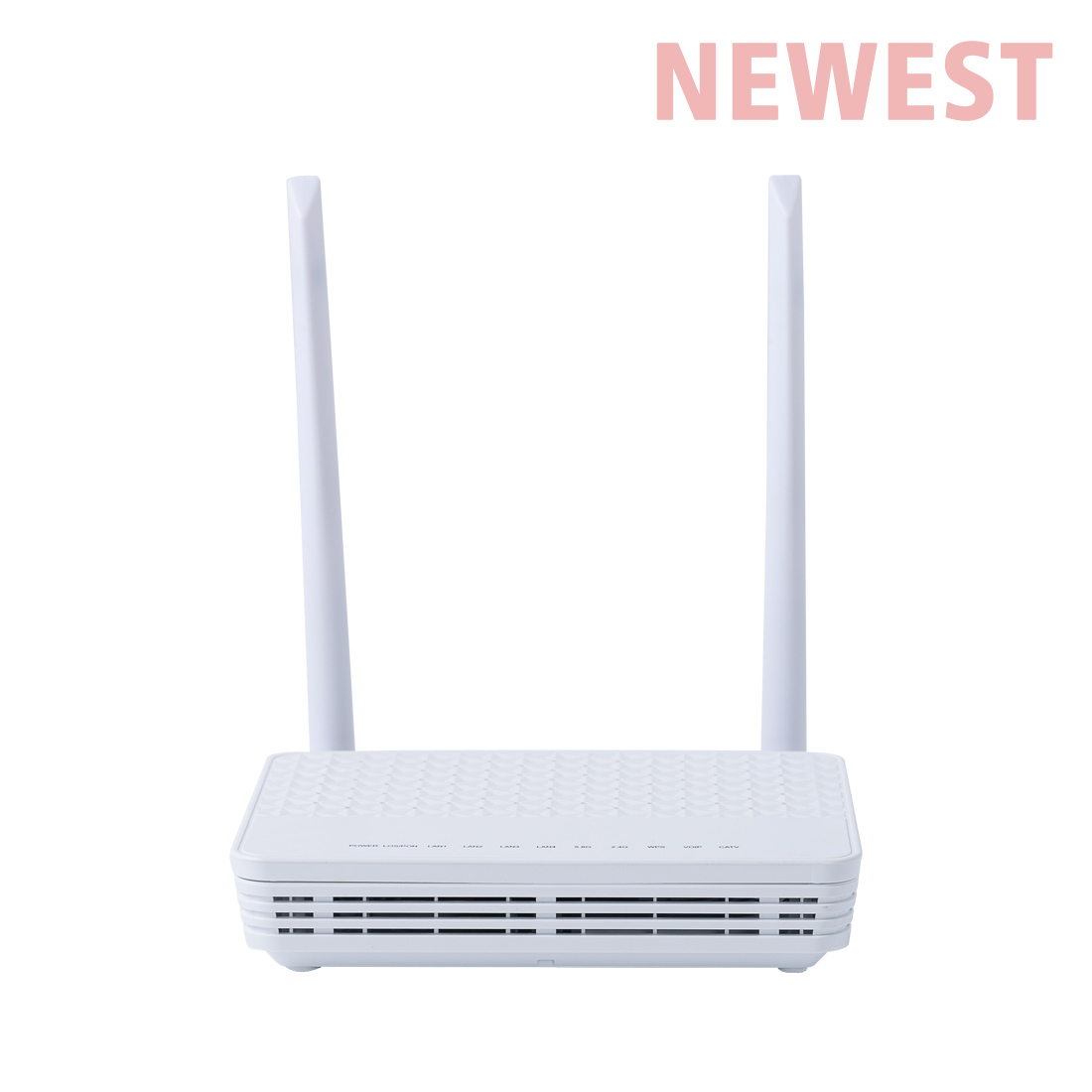

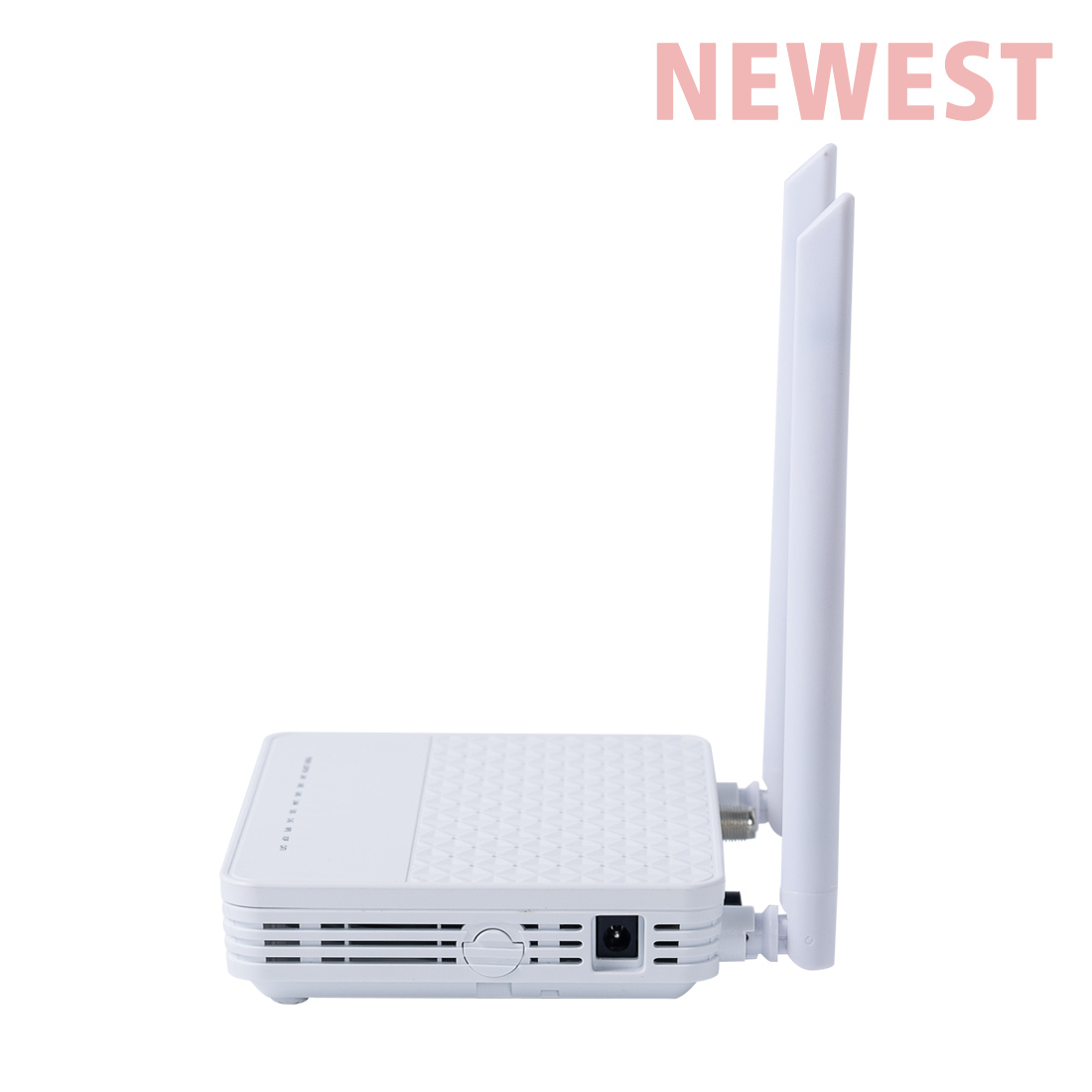

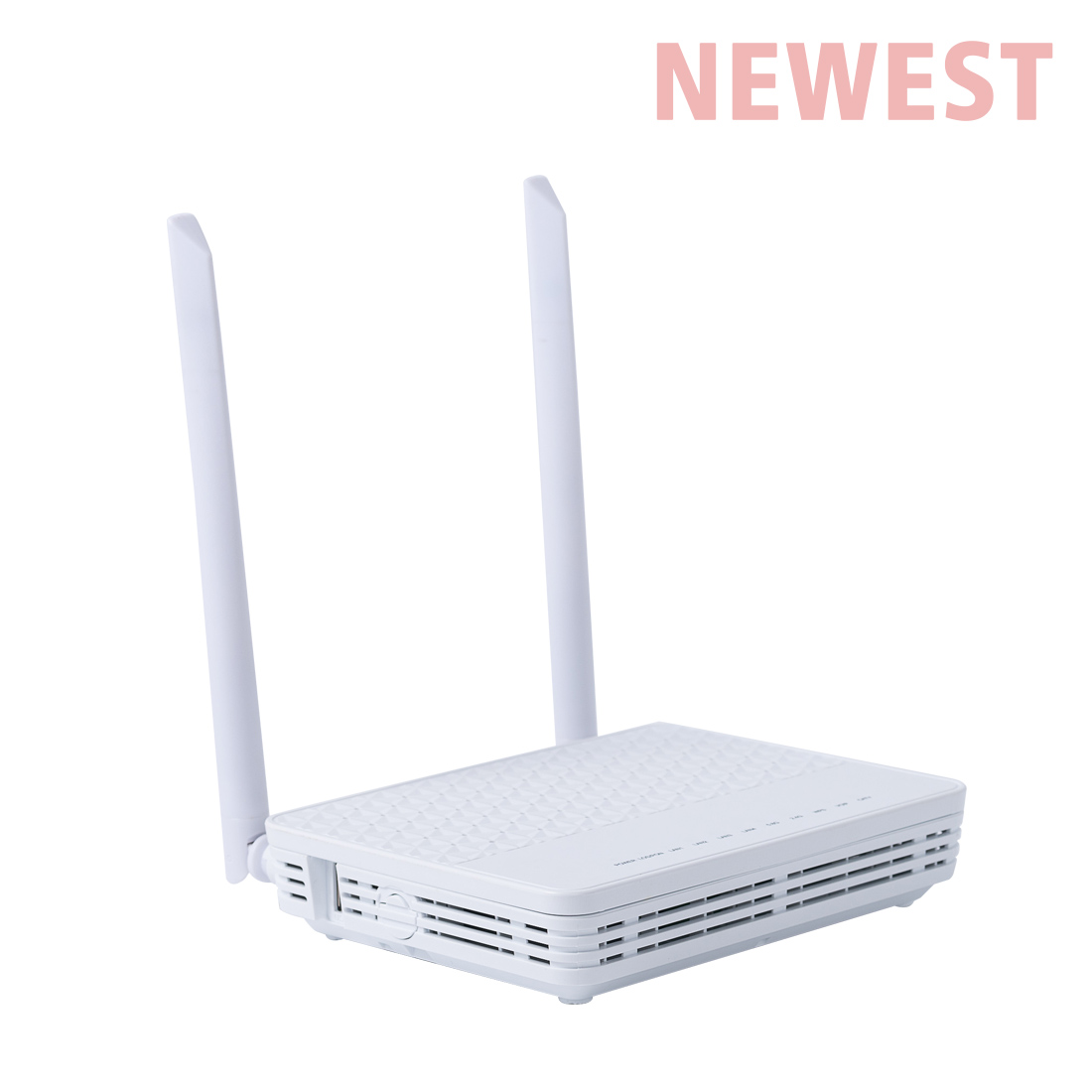

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 1G3F WIFI CATV POTs USB ONU |
CX21141R03C |
1*10/100/1000M and 3*10/100M Ethernet interface,USB interface,1 PON interface,CATV AGS, 1 POTS interface, support Wi-Fi function, Plastic casing, external power supply adapter |
How to create a connection function with VLAN ID 100?
Create a WAN connection with a VLAN ID of 100, a channel mode of PPPOE, and a connection type of Internet
Then enter the PPPOE username and password provided by the ISP.
FAQ
Q1. What is XPON ONU?
A: XPON ONU is an optical network unit that supports both HGU (Home Gateway Unit) and SFU (Single Family Unit) applications. It can be connected with different EPON OLT (Optical Line Terminal) or GPON OLT to provide high-speed Internet access.
Q2. What connection options are available for XPON ONU?
A: XPON ONU provides 1 Gigabit port and 3 100M ports for wired connection. It also has WIFI with 2×2 MIMO technology, and the network speed can reach up to 300Mbps.
Q3. What additional functions does XPON ONU provide?
A: XPON ONU includes CATV function with AGC (Automatic Gain Control) gain function. Support wired interface video service, and allow OLT remote control. It also supports VOIP service through POTS (Plain Old Telephone Service) port and data transfer through USB port.
Q4. Which OLTs are XPON ONUs compatible with?
A: XPON ONU is compatible with various OLTs, including SMATR OLT, UP2000, Huawei, ZTE, Fiberhome, CDATA, VSOL, HSGQ, BDCOM. It is designed to work seamlessly with these OLTs for efficient and reliable network connectivity.
Q5. What protocols does XPON ONU support?
A: XPON ONU is compatible with multiple protocols, ensuring compatibility and interoperability with different network devices. The supported protocols include the EPON and GPON protocols mentioned in the article and other protocols commonly used in the industry.
