WIFI6 AX1800 4GE WIFI 2CATV 2POTs 2USB ONU
Overview
●4G+WIFI+2CATV+2POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
●4G+WIFI+2CATV+2POTs+2USBis based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
● 4G+WIFI+2CATV+2POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 1800Mbps.
●4G+WIFI+2CATV+2POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+2CATV+2POTs+2USB are designed by Realtek chipset 9607C.
Product Feature and model list
|
ONU Model |
CX62242R07C |
CX61242R07C | CX62142R07C |
CX61142R07C |
|
Feature |
4GE
2CATV 2VOIP 2.4/5G WIFI 2USB |
4GE
1CATV 2VOIP 2.4/5G WIFI 2USB |
4GE
2CATV 1VOIP 2.4/5G WIFI 2USB |
4GE
1CATV 1VOIP 2.4/5G WIFI 2USB |
|
ONU Model |
CX62042R07C | CX61042R07C | CX60242R07C | CX60142R07C |
|
Feature |
4GE
2CATV 2.4/5G WIFI 2USB |
4GE
1CATV 2.4/5G WIFI 2USB |
4GE
2VOIP 2.4/5G WIFI 2USB |
4GE
1VOIP 2.4/5G WIFI 2USB |
| ONU Model |
CX60042R07C |
|||
| Feature | 4GE
2.4/5G WIFI 2USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Comply with GPON G.984/G.988 standard and IEEE802.3ah.
> Support CATV interface for Video Service and remote control by Major OLT
> Support SIP Protocol for VoIP Service
> Integrated line testing compliant with GR-909 on POTS
> Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support power-off alarm function ,easy for link problem detection
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration
> Support TR069 Remote Configuration and WEB Management
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
> Support IPv4/IPv6 dual stack
> Support IGMP transparent/snooping/proxy
> Support ACL and SNMP to configure data packet filter flexibly
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode，SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0、Stamdard USB3.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 1800Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
|
CATV Interface |
2xRF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
POTS Port |
2×POTS RJ11 Connector |
|
LED |
17 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS1/FXS2、Normal 1(CATV1)/Normal 2(CATV2) |
|
Push-Button |
3, for Function of Power on/off, Reset, WPS |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1.5A |
|
Power Consumption |
<18W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
|
PWR |
On | The device is powered up. |
| Off | The device is powered down. | |
|
LOS |
Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
|
PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
LAN1~LAN4 |
On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
|
FXS |
On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. | |
|
Normal (CATV) |
On | Input optical power is between -15dBm and 2dBm |
| Off | Input optical power is higher than 2dBm or lower than -15dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP

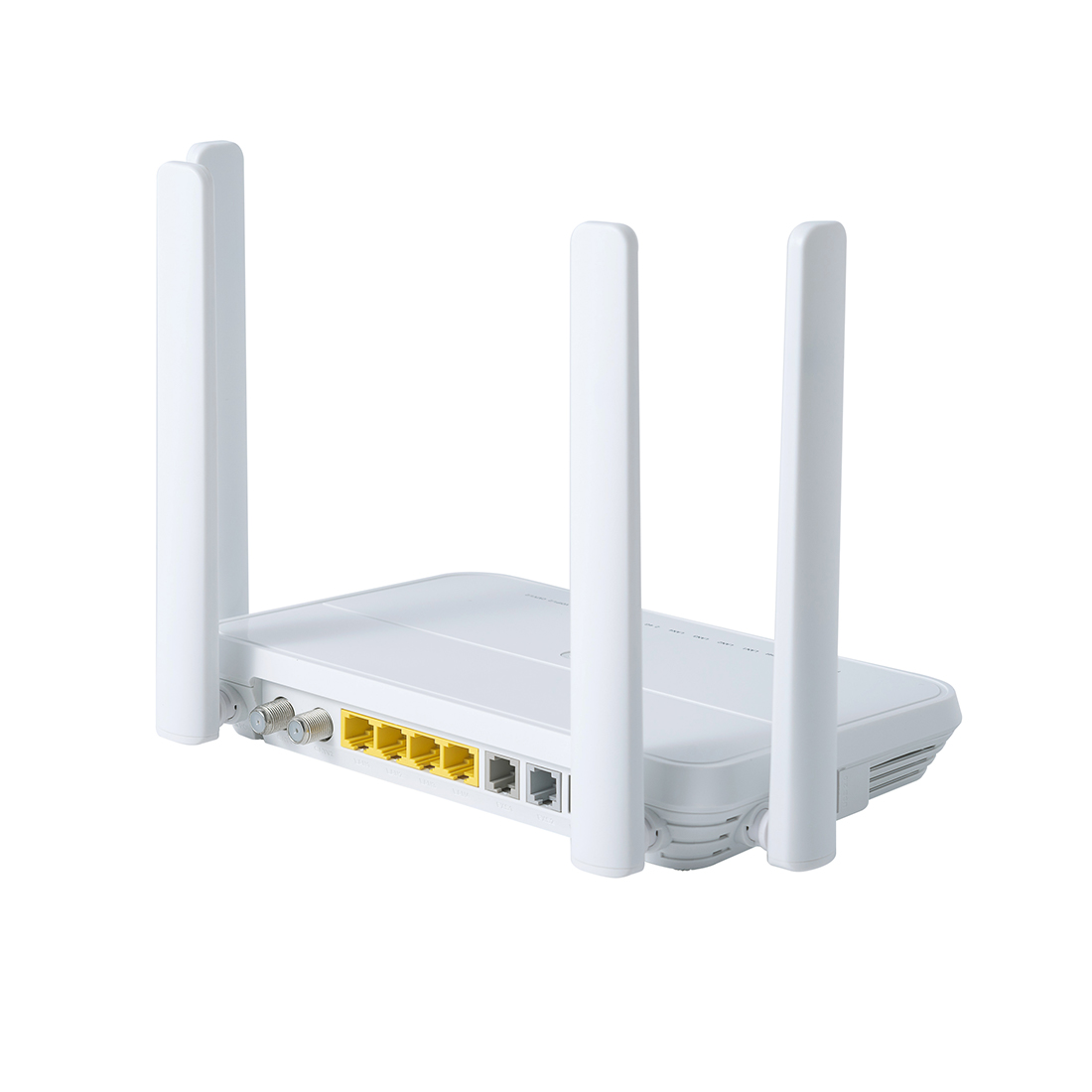

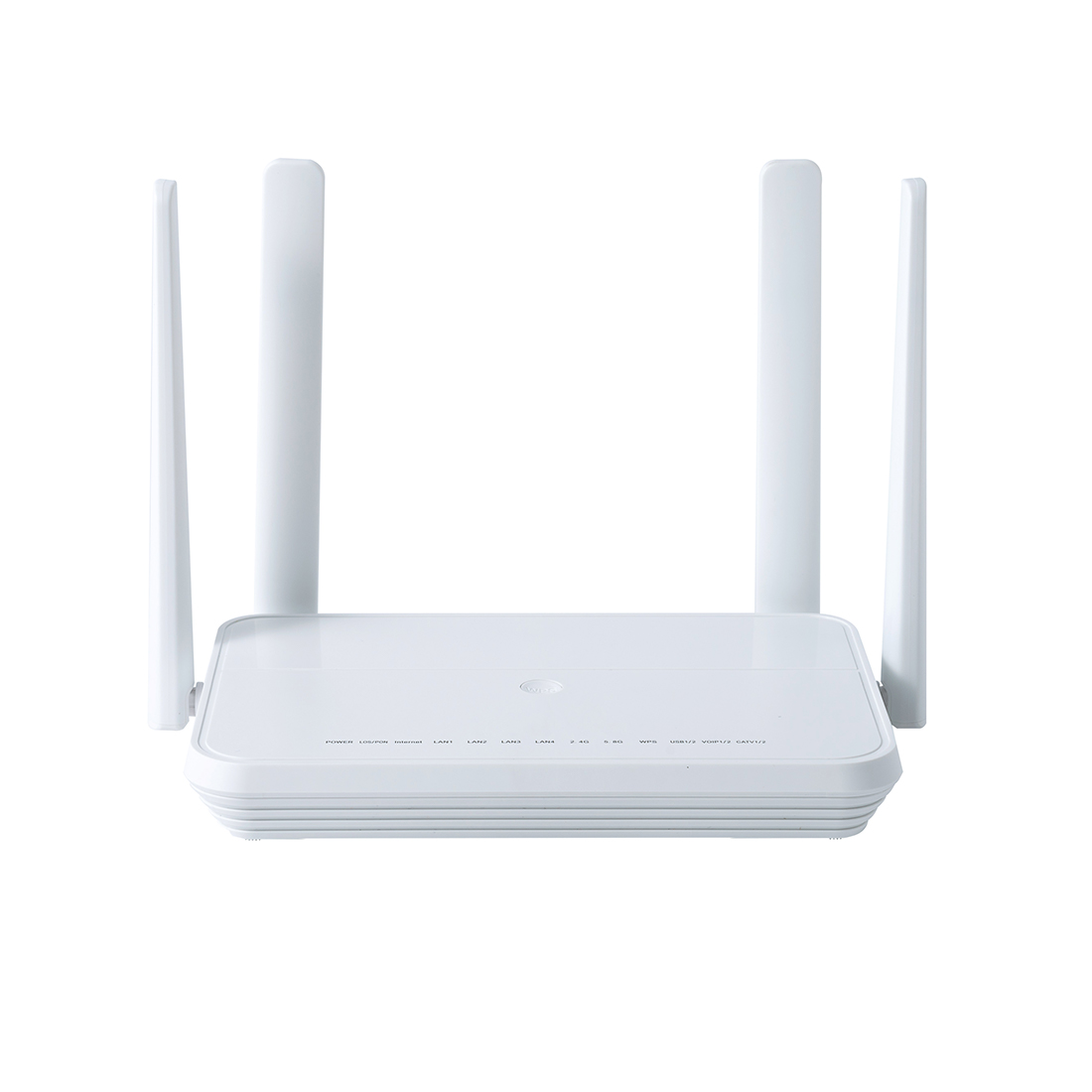

Product Appearance
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU |
CX62242R07C |
4*10/100/1000MNetwork port ;2 CATV ports；2 POTS ports；2 USB ports；external power supply adapter |
Regular Power Adapter
FAQ
Q1. What are the main features of AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU?
- AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU is equipped with 4 Gigabit ports.
- Support dual-band WiFi2.4/5.8GHz.
- Support EPON and GPON access.
- ONU can automatically identify the central office OLT mode (EPON or GPON).
- Adaptive EPON or GPON access capability.
-The maximum transmission rate can reach 1800Mbps.
Q2. Which standards and technical specifications does the AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU comply with?
- The equipment functions and performance indicators comply with the relevant recommendations of ITU-T and IEEE.
- Comply with relevant international standards and industry technical specifications.
- Compatible with mainstream OLT (local terminal) and other functions.
Q3. What is the purpose of the web management function of AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU?
- Web management function allows users to configure and monitor AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU through a web-based interface.
- It provides a user-friendly interface to manage ONU settings and performance.
Q4. Can AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU be used with other types of OLT?
- Yes,AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU is compatible with mainstream OLT and other functions.
- It can be used with various OLTs, as long as it meets the relevant standards and technical specifications.
Q5. Can AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU support multiple devices and users?
- Yes, the 4 Gigabit ports of AX1800 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU allow multiple devices to be connected.
- It can support multiple users at the same time, providing high-speed Internet access and connectivity.
