Overview
● 1G3F+VOIP+USB is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G3F+VOIP+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G3F+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 1G3F+VOIP+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 1G3F+VOIP+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 1G3F+VOIP+USB are designed by Realtek chipset 9603C.
Product Feature and model list
|
ONU Model |
CX01141R03C |
CX01041R03C |
CX00141R03C |
CX00041R03C |
|
Feature |
1G3F CATV VOIP USB |
1G3F CATV USB |
1G3F VOIP USB |
1G3F USB |
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support SIP Protocol for VoIP Service.
> Integrated line testing compliant with GR-909 on POTS.
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support PON and routing compatibility function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
USB Interface |
standard USB2.0 |
|
VOIP Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
8 LED,WPS、PWR、LOS/PON、LAN1~LAN4、VOIP |
|
Push-Button |
3, for Function of Power on/off, Reset, WPS |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<6W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. | |
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. | |
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. | |
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. | |
|
Off |
The device registration is incorrect. | |
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). | |
|
Off |
Port (LANx) connection exception or not connected. | |
|
FXS （VOIP） |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). | |
|
Off |
Telephone registration is incorrect. |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, VoIP etc.

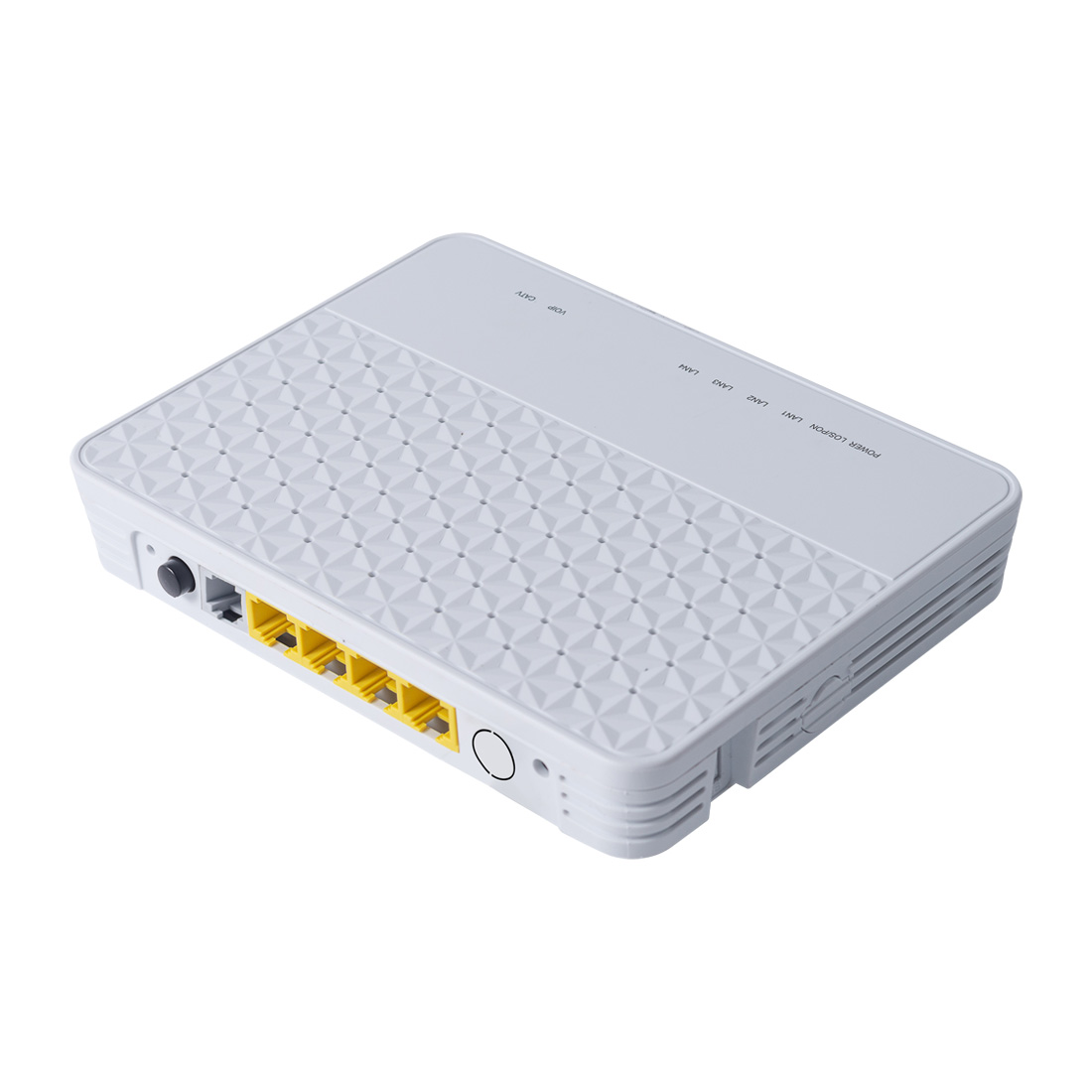

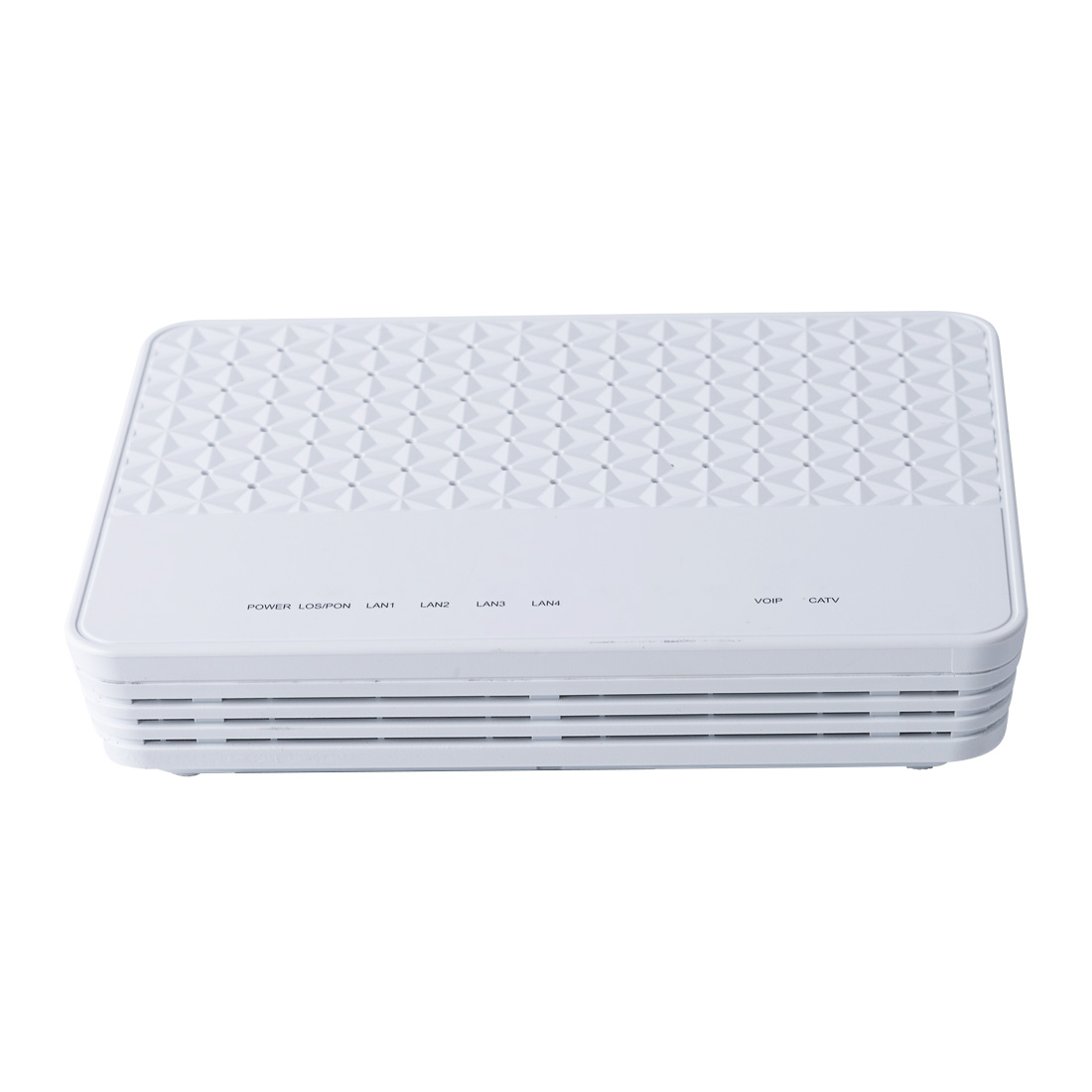

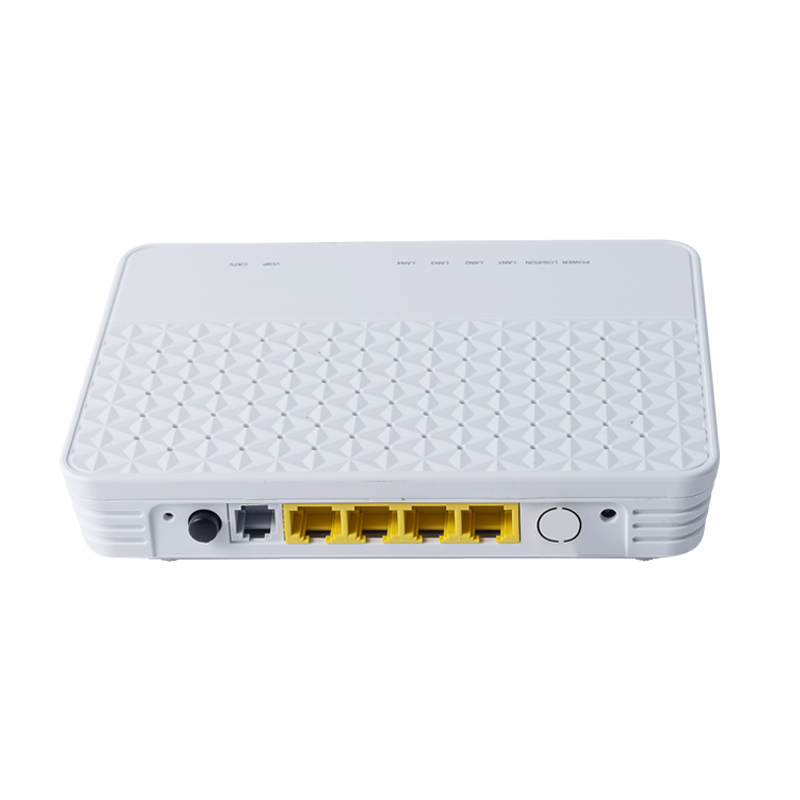

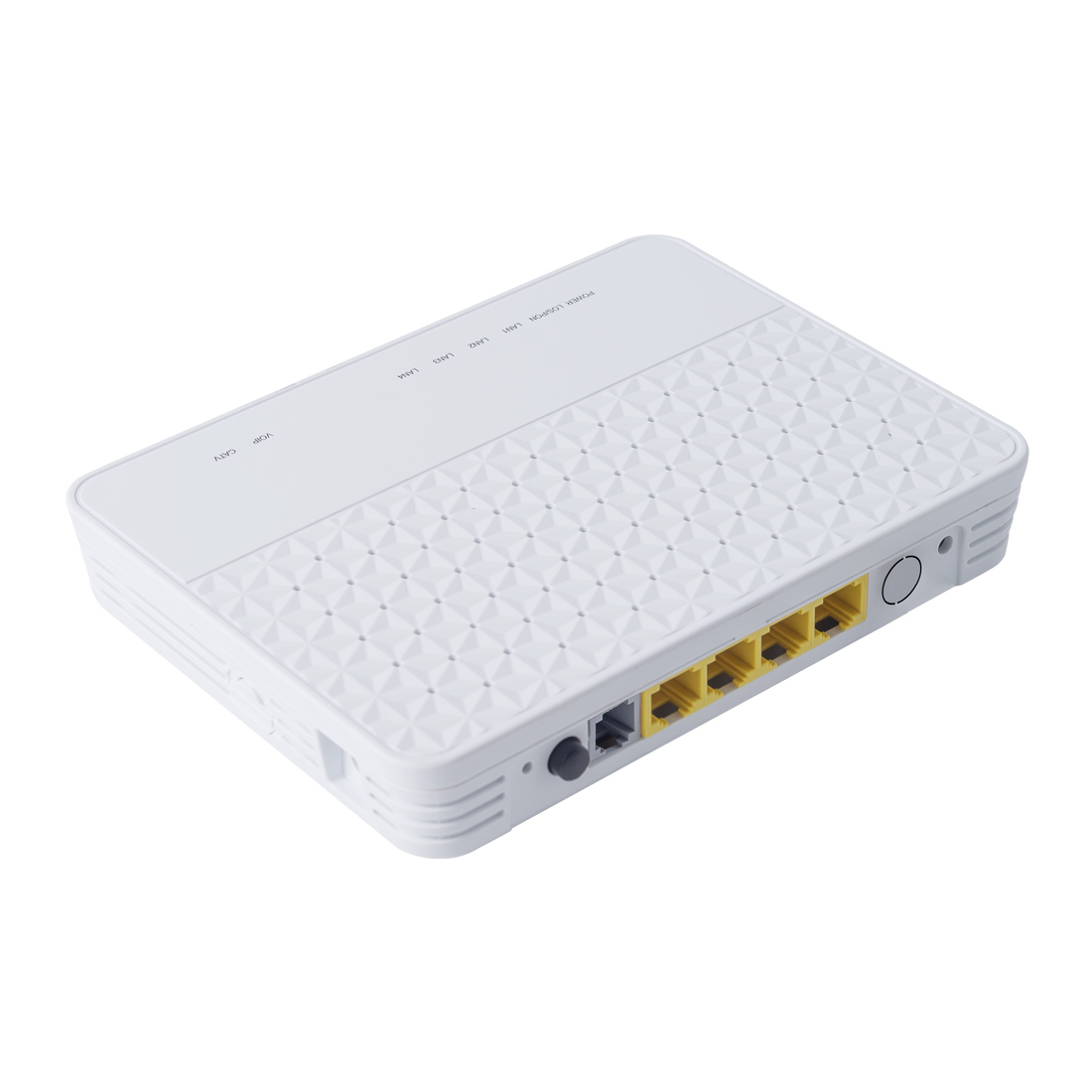

Product Appearance
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
XPON 1G3F VOIP USB ONU |
CX00141R03C |
1*10/100/1000M and 3*10/100M Ethernet interface,USB interface,1 PON interface, 1 VOIP interface, Plastic casing, external power supply adapter |
