China XPON 1G3F CATV VOIP USB ONU Manufacturer
Overview
● 1G3F+CATV+VOIP+USB is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G3F+CATV+VOIP+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G3F+CATV+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
● 1G3F+CATV+VOIP+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 1G3F+CATV+VOIP+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 1G3F+CATV+VOIP+USB are designed by Realtek chipset 9603C.
Product Feature and model list
|
ONU Model |
CX01141R03C |
CX01041R03C |
CX00141R03C |
CX00041R03C |
|
Feature |
1G3F VOIP CATV USB |
1G3F CATV USB
|
1G3F VOIP USB
|
1G3F USB
|
|
ONU Model |
CX01140R03C |
CX01040R03C |
CX00140R03C |
CX00040R03C |
| Feature
|
1G3F VOIP CATV |
1G3F CATV |
1G3F VOIP
|
1G3F
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support CATV (with AGC) interface to provide video services, which can be remotely controlled through mainstream OLT.
> Support SIP Protocol for VoIP Service.
> Integrated line testing compliant with GR-909 on POTS.
> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
1 *10/100/1000Mbps and 3 *10/100 auto-sensing Ethernet RJ45 ports |
|
CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
8 LED, For Status of PWR、LOS、PON、LAN1~LAN4、 NORMAL(CATV),FXS |
|
Push-Button |
2. Used for power on/off and reset. |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -10℃～+70℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<12W |
|
Net Weight |
<0.4kg |
|
Product size |
155mm×115mm×32.5mm(L×W×H) |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
|
Off |
The WIFI interface does not establish a secure connection. |
|
PWR |
On |
The device is powered up. |
|
|
Off |
The device is powered down. |
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
|
Off |
The device has received optical signal. |
|
PON |
On |
The device has registered to the PON system. |
|
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
FXS （VOIP） |
On |
Telephone has registered to the SIP Server. |
|
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

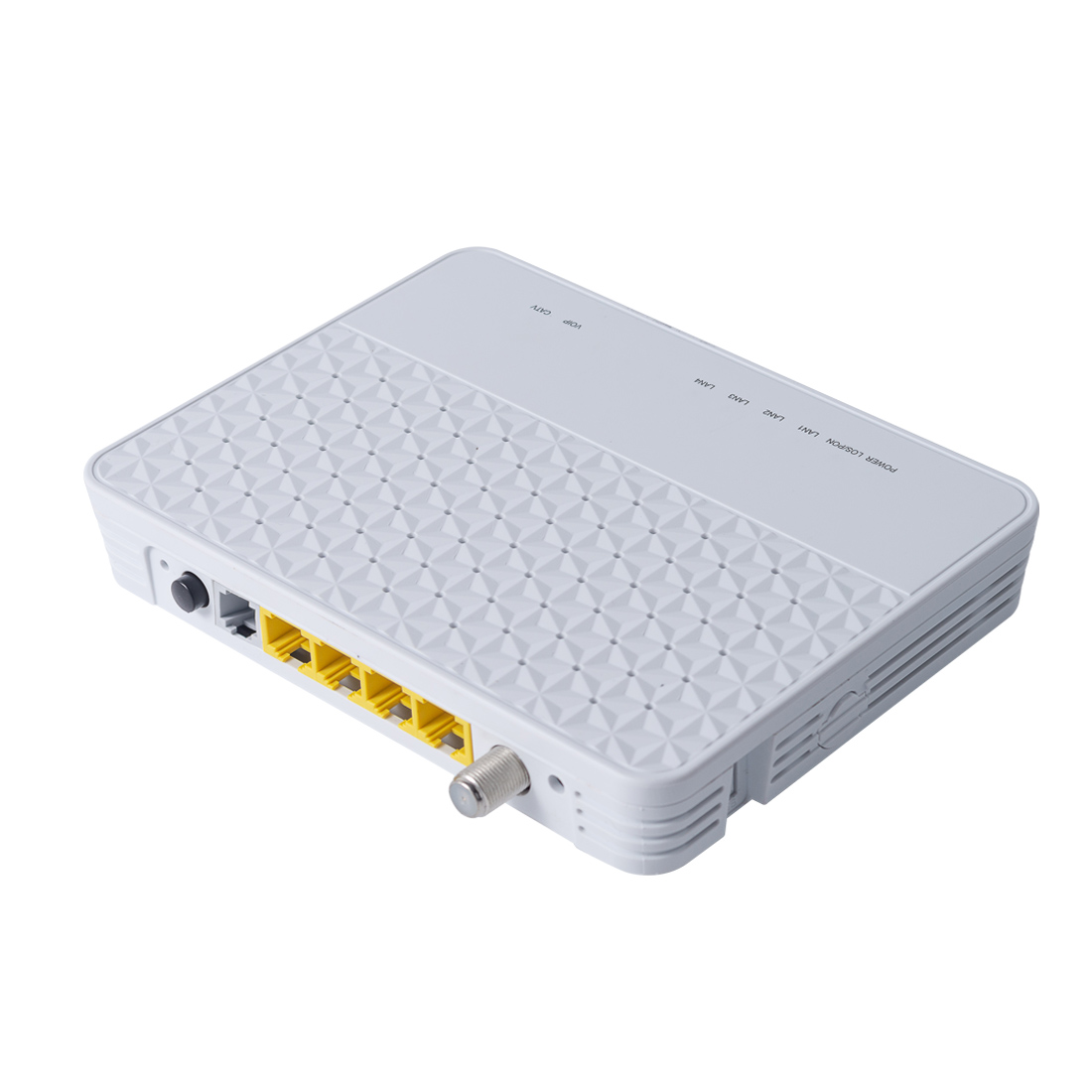

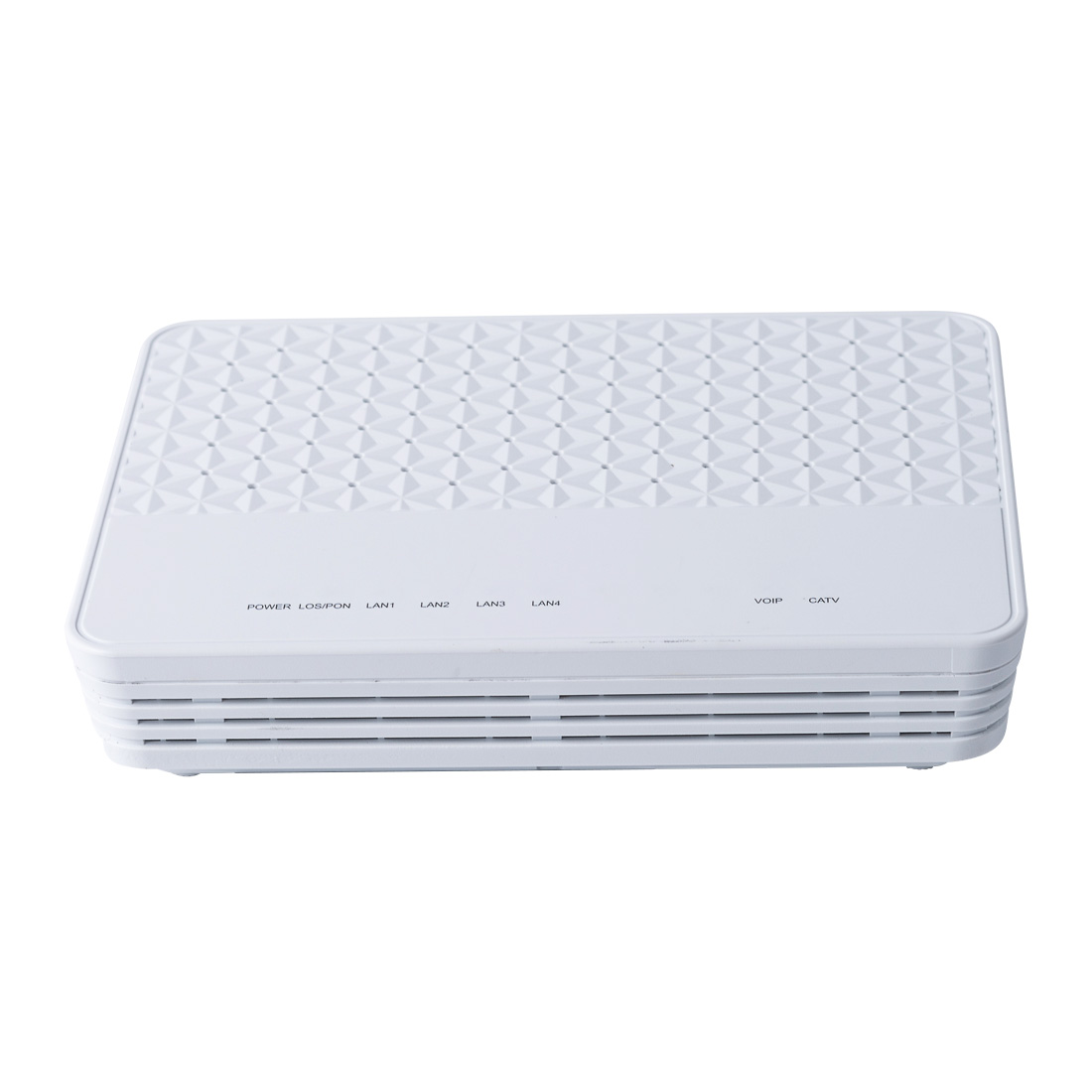

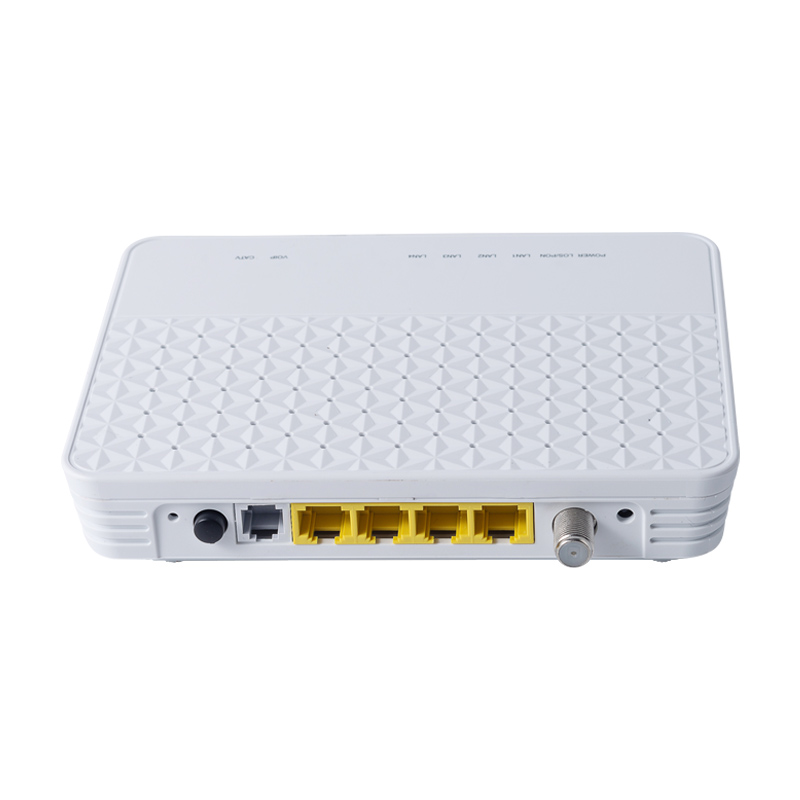

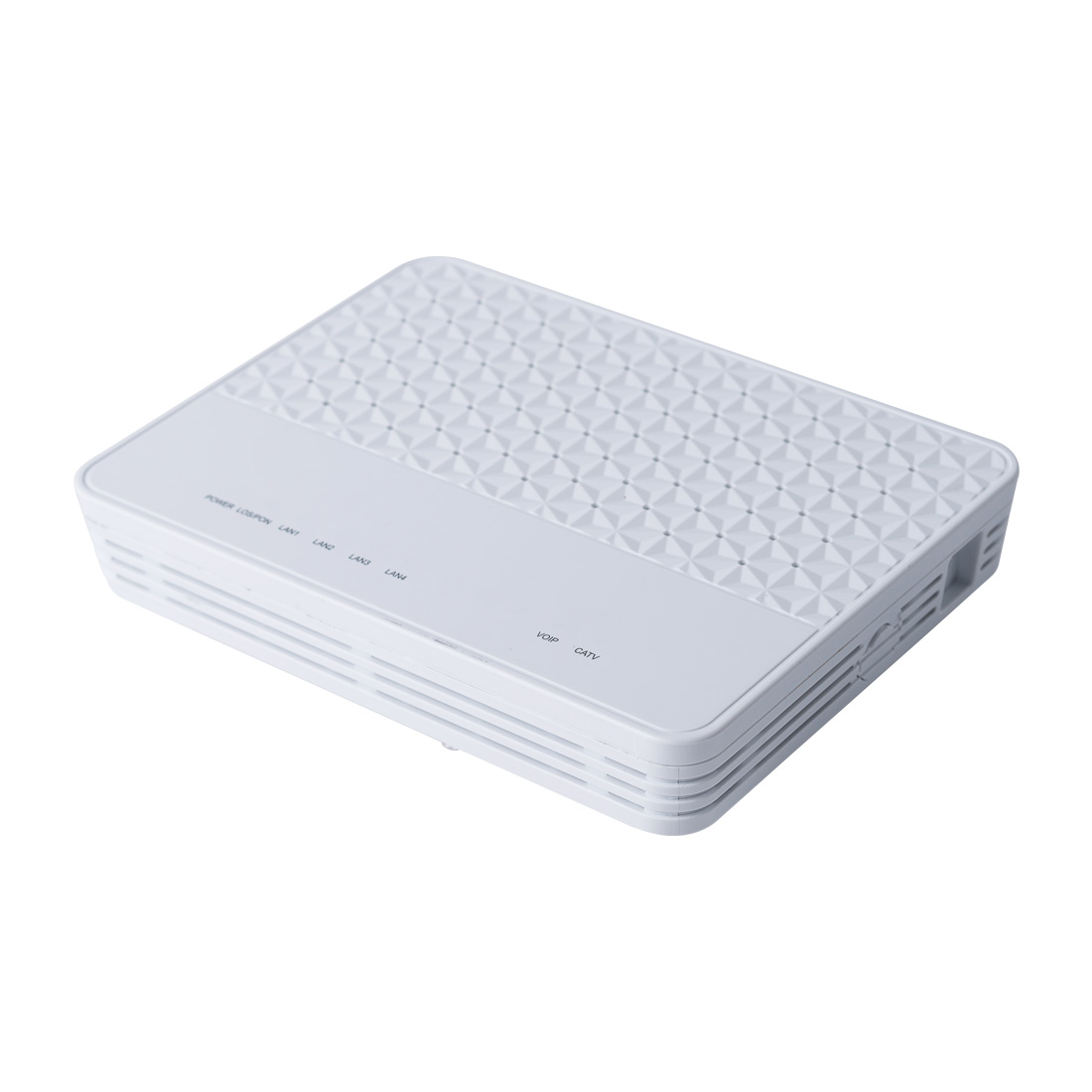

Product Appearance
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
XPON 1G3F CATV VOIP USB ONU |
CX01141R03C |
1*10/100/1000M and 3*10/100M Ethernet interface,USB interface,1 PON interface, CATV AGS, 1 VOIP interface, Plastic casing, external power supply adapter |
Regular Power Adapter
