China Manufacturer XPON 4GE CATV USB ONU

Short Description:

4GE CATV ONU, compatible with GPON/EPON OLT, compliant with G.984/G.988 and IEEE802.3ah standards. Integrated CATV video, high-speed data access, supports NAT firewall, flow control, loop detection. Flexible configuration, supports VLAN, DHCP, TR069 remote and WEB management, IPv4/IPv6 dual stack, IGMP flexible configuration. Chinese factory manufacturer, accepts product customization services, and can also help factories build….

Single Size: 213x175x40mm

Carton Size: mm

Product Model: CX01041R07C

Send email to us

Product Detail

Product Tags

Overview

● 4G+CATV+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.

● 4G+CATV+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

● 4G+CATV+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunications EPON CTC3.0.

● 4G+CATV+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

● 4G+CATV+USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.

● 4G+CATV+USB are designed by Realtek chipset 9607C.

Product Feature and model list

ONU Model	CX01141R07C	CX01041R07C	CX00141R07C	CX00041R07C
Feature	4G VOIP CATV USB	4G CATV USB	4G VOIP USB	4G USB
ONU Model	CX01140R07C	CX01040R07C	CX00140R07C	CX00040R07C
Feature	4G VOIP CATV	4G CATV	4G VOIP	4G

Feature

> Supports Dual Mode (can access GPON/EPON OLT).

> Supports GPON G.984/G.988 standards and IEEE802.3ah.

> Support CATV (with AGC) interface to provide video services, which can be remotely controlled through mainstream OLT.

> Integrated line testing compliant with GR-909 on POTS.

> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.

> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

> Support port mode of VLAN configuration.

> Support LAN IP and DHCP Server configuration.

> Support TR069 Remote Configuration and WEB Management.

> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

> Support IPv4/IPv6 dual stack.

> Support IGMP transparent/snooping/proxy.

> In compliant with IEEE802.3ah standard.

> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)

> Supports OAM/OMCI management.

Specification

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM
LAN interface	4 *10/100/1000Mbps auto-sensing Ethernet RJ45 ports
CATV Interface	RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED	7LED, For Status of PWR、LOS、PON、LAN1~LAN4、 NORMAL(CATV),
Push-Button	2. Used for power on/off and reset.
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -10℃～+70℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<12W
Net Weight	<0.4kg
Product size	155mm×115mm×32.5mm(L×W×H)

Panel lights and Introduction

Pilot Lamp	Status	Description
WPS	Blink	The WIFI interface is securely establishing a connection.
	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
Normal (CATV)	On	Input optical power is between -15dBm and 2dBm
	Off	Input optical power is higher than 2dBm or lower than -15dBm

Application

● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV etc.

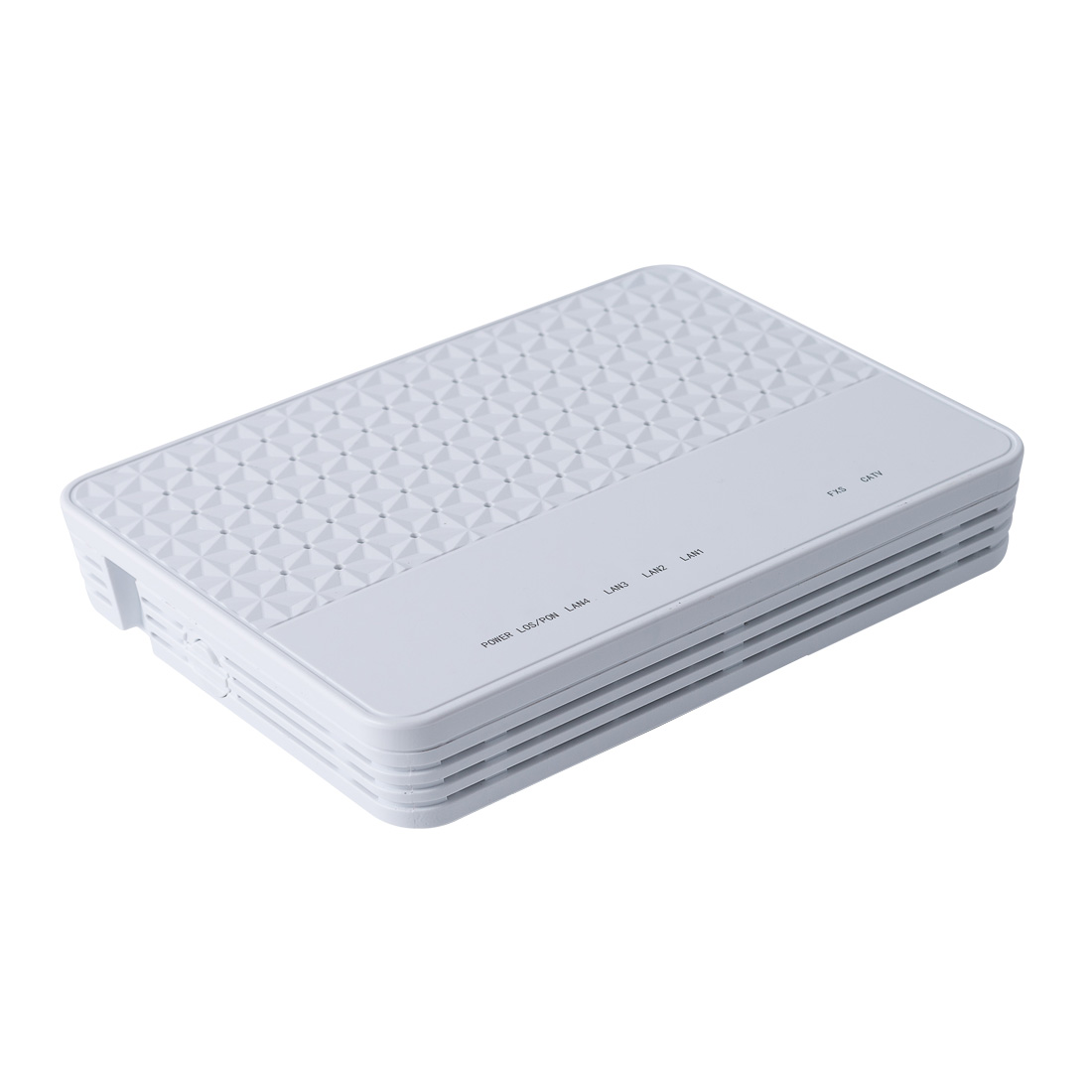

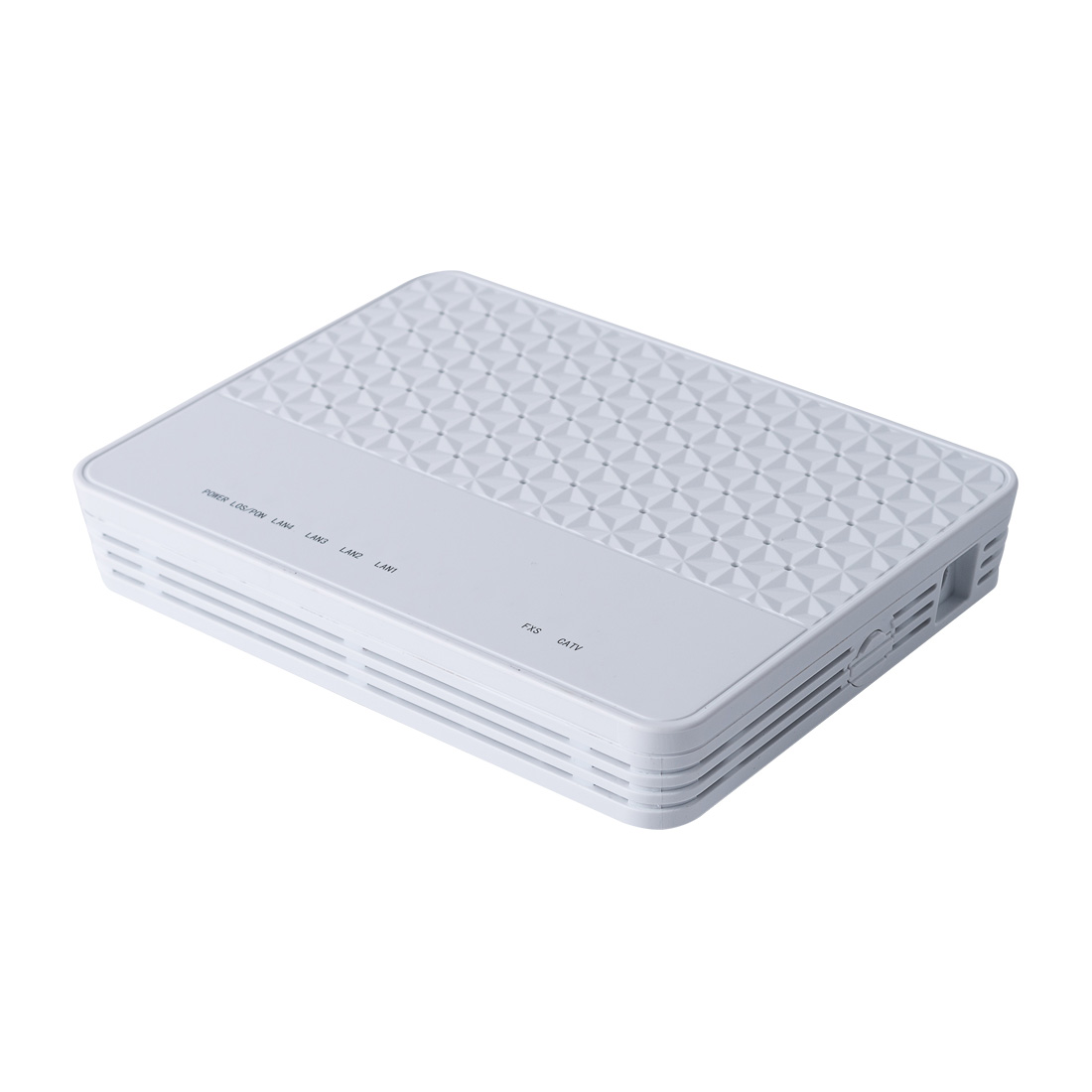

Product Appearance

Ordering Information

Product Name	Product Model	Descriptions
XPON 4GE CATV USB ONU	CX01041R07C	4 * 10 / 100 / 1000M RJ45 interface, support CATV AGC, USB interface ,1 PON interface, plastic case, external power adapter
