4FE POE+2FE uplink port switch supplier

Short Description:

CT-4FEP+2FE 100M PoE switch is the most economical network transmission equipment tailored for mega-HD and high-speed wireless networking. 10/100M adaptive bandwidth, meeting the bandwidth requirements of millions of high-definition and wireless APs, PoE power supply, transmitting data through the network while also providing up to 65W network power supply (can meet the requirements of LED infrared cameras, dot matrix infrared cameras and high-power wireless APs) required for the job).

With the rapid development of cities and WLAN, people have higher and higher requirements for monitoring picture clarity and Internet speed. 100M transmission equipment will surely become the mainstream of transmission equipment. 100M PoE switches and high bandwidth, high performance, high stability, The advantages of high flexibility and low price make it the most ideal choice for front-end access equipment for engineering contractors.

Send email to us

Product Detail

Product Tags

Overview

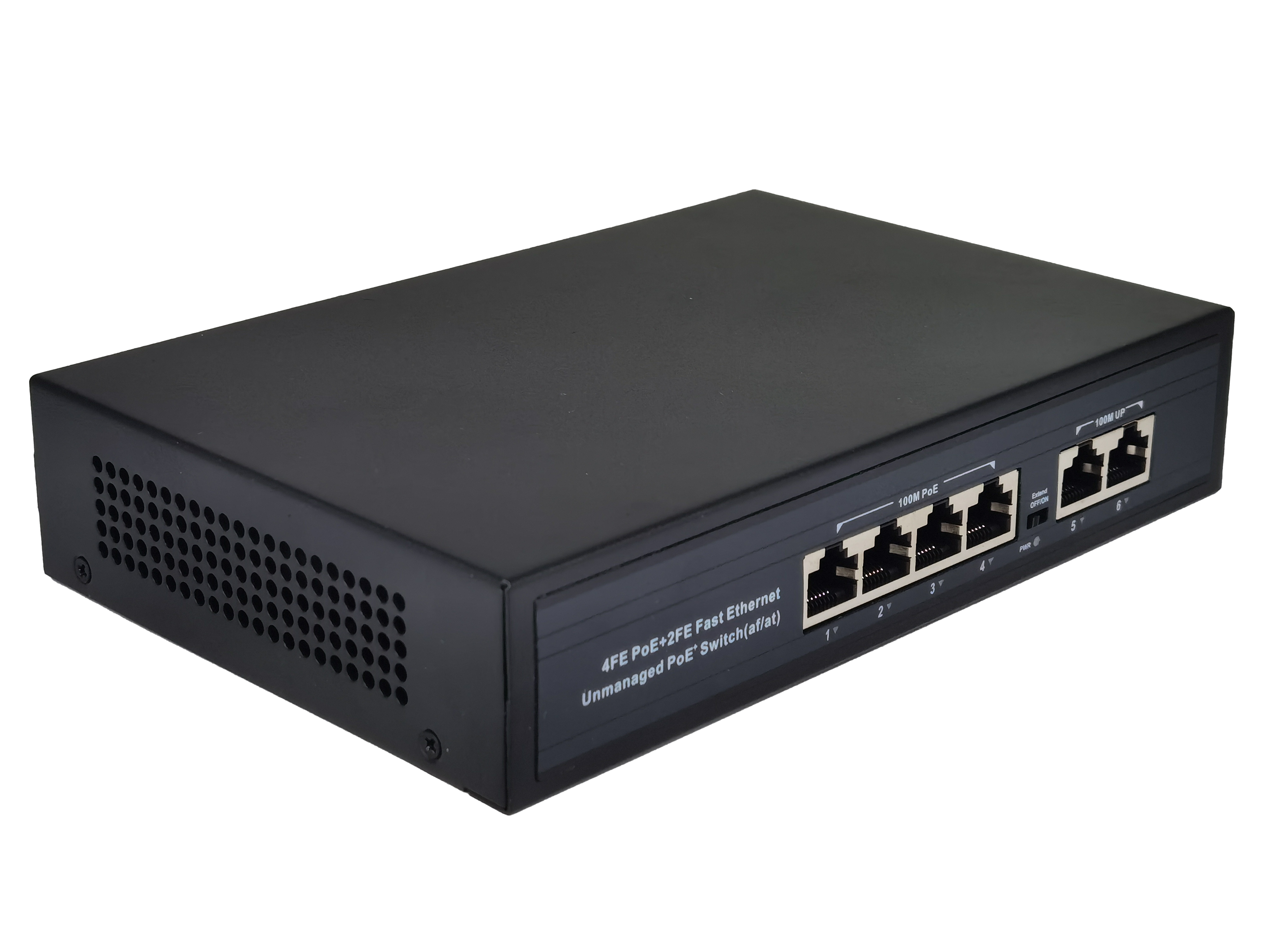

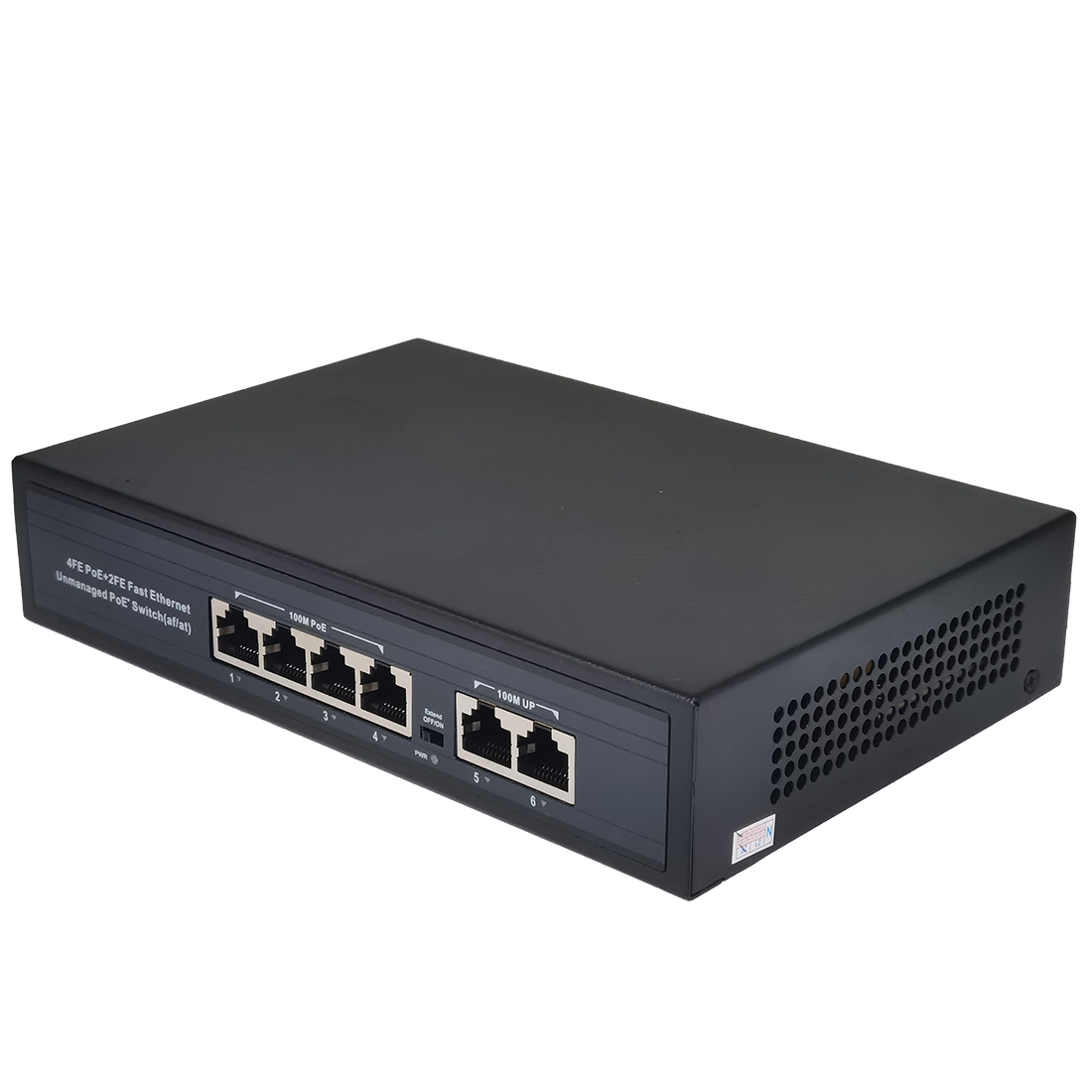

4 + 2Port 100M POE switch This is a high performance, low power 100 MB Ethernet POE switch, is the primary choice of small LAN. It offers four 10 / 100 / Mbps POE, ports with two 10 / 100 / Mbps normal network ports to connect upstream devices with higher bandwidth. Store-forwarding technology is adopted to ensure that the bandwidth is effectively allocated to each port. Fully connected to a working group or server for easy plug and play, this flexible blocking-free architecture can not be limited by bandwidth and media networks. The switch supports full duplex working mode, each switching port supports adaptive function, the port adopts storage and forwarding mode, the product performance is superior, simple to use, convenient and intuitive, providing an ideal networking solution for working group users or small LAN.

Feature

◆ Support for IEEE 802.1Q VLAN

◆ Support for full-duplex IEEE 802.3X flow control

◆ Built-in highly efficient SRAM packet buffer, with 2k entry lookup tables and two 4-way associated hashing algorithms

◆ Support for high-performance QoS functionality on each port

◆ Support for IEEE802.1p traffic re-labeling

◆ Support for energy-saving Ethernet (EEE) function (IEEE802.3az)

◆ Flexible LED indicator lamp

◆ Supports a 25 MHz external crystal or OSC

Specification

Chip scheme		JL5108
Standards / protocols		IEEE 802.1Q , IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af/at
Network media		10B ASE-T: Unshielded Class 3,4,5 twisted pair (max. 250m)100B ASE-TX / 100B ASE-T: Unshielding Class 5, over 5 (maximum 100m)
Joggle		610 / 100 MRJ 45 ports (Auto Negotiation / Auto MDI / MDIX) 4 of the POE ports
The MAC address is null volume		2K
exchange capacity		1.2 Gbps
Package forwarding rate		0.867Mpps
Package cache		768Kbits
Giant frame		4096 b yte s
source		Built-in power supply 65W (full power)
The POE port has the output power		30W (single-port MAX)
quiescent dissipation		0.2W (DC52V)
Power pin		(1/2) +,(3/6)-
Speed limit function		Support for the speed limit of 10M
pilot lamp	Each	Power. System (Power: red light) When the load status of the indicator is: orange for VLAN / 10M, red without VVLAN / 10M
	Each port	Link / Activity (Link / Act: green) access the signal status: orange when the network and POE are connected at the same time; red with POE without network, green for network without POE.
service environment		Operating temperature: -10℃ ~ 70℃ (32 ℉ ~127 ℉)Storage temperature: -40℃ ~85℃ (-97 ℉ ~142 ℉) Working humidity: 10%~90% without condensation Storage humidity: 5%~95% condensation
Case material		Standard Hardware Case
Case size		19039121mm
