24 Gigabit POE+2 gigabit SFP port switch

Short Description:

The CT-24GEP+2SFP switch provides 24*10/100/1000M POE ports and 2 Gigabit SFP ports, which enables the CT-24GEP+2SFP switch to not only provide stable data transmission for your equipment, but also provide Convenient power supply. Supports full-duplex and half-duplex operation, and uses IEEE802.1Q VLAN. Supports 25M clock, RFC MIB counter… We always adhere to the customer-centered service concept and provide you with all-round technical support and high-quality after-sales service. When you buy our products, you choose high-quality services with peace of mind and .

Send email to us

Product Detail

Product Tags

Overview

24 + 2 (SFP) Gigabit POE Switch This is a high performance, low power full Gigabit Ethernet switch, is the primary choice of group and small LAN. It offers 2410 / 100 / 1000Mbp s ports, plus two 10M / 100M / 1000Mbps SFP UP LINK ports to be used to connect upstream devices with higher bandwidth. Store-forwarding technology is adopted to ensure that the bandwidth is effectively allocated to each port. Connecting to workgroups or servers for easy plug and play, this flexible non-blocking architecture can not be limited by bandwidth and media networks. The switch supports half-duplex and full-duplex working mode, each switching port supports adaptive function, the port adopts storage and forwarding mode, the product is superior in performance, simple to use, convenient and intuitive, providing an ideal networking solution for working group users or small LAN.

Feature

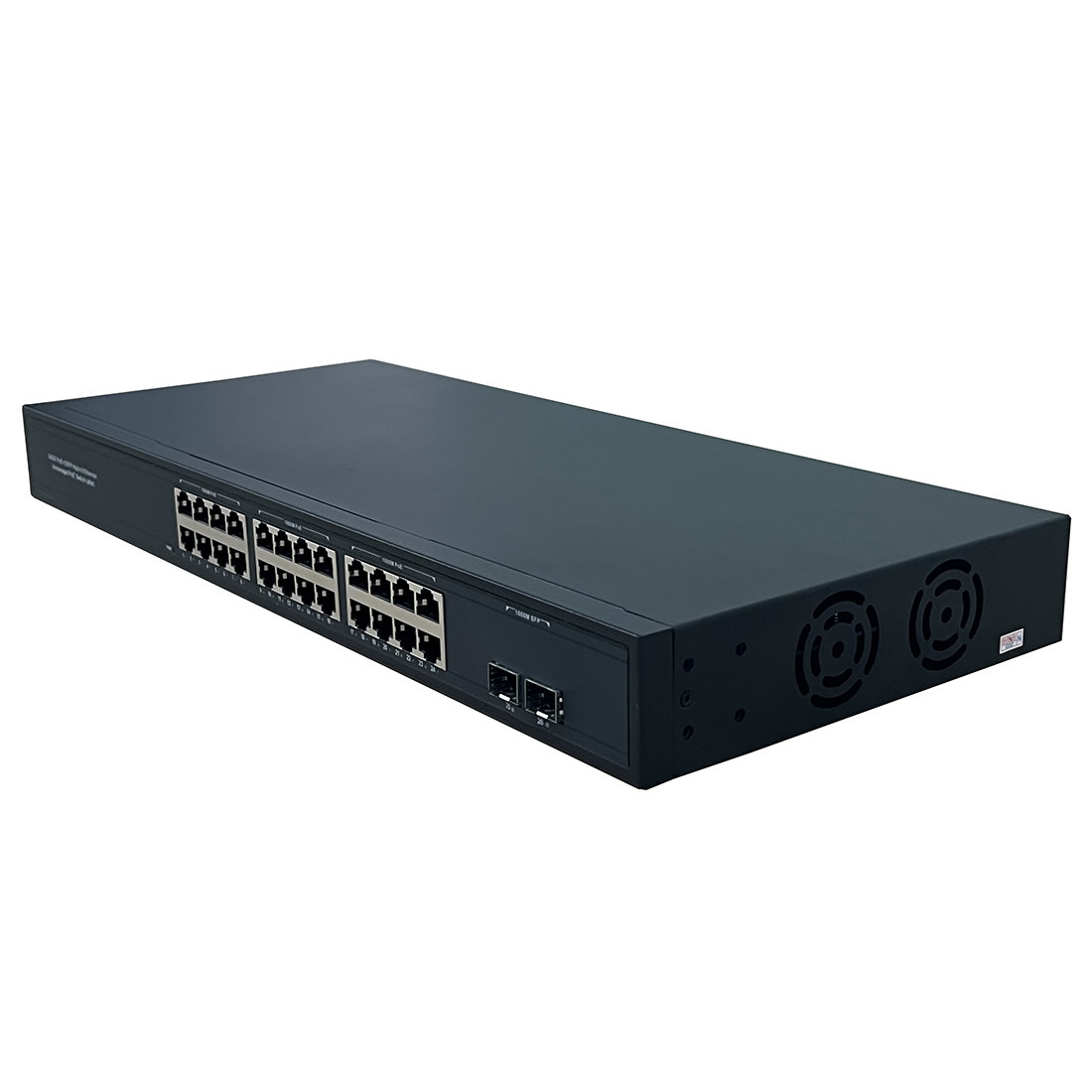

24 Gigabit POE+2 gigabit SFP port switch（1)#

◆ Support for IEEE 802.1Q VLAN

◆ Full and half duplex operation using IEEE 802.3X x flow control and reverse pressure

◆ Support link aggregation (IEEE802.3ad standard) for a maximum of 8 ports per group for 8 groups of

link aggregators

◆ Qos: 4 user queues per port

◆ Supports 8K MAC address

◆ Support for the EEPROM configuration

◆ Support for IEEE802.3 af / at

◆ Support for IVL, SVL, and and IVL / SVL

◆ Supports the IEEE 802.1x access control protocol

◆ Support for IEEE 802.3az EEE (Energy-Efficient Ethernet)

◆ Supports a 25M clock, and the RFC MIB counter

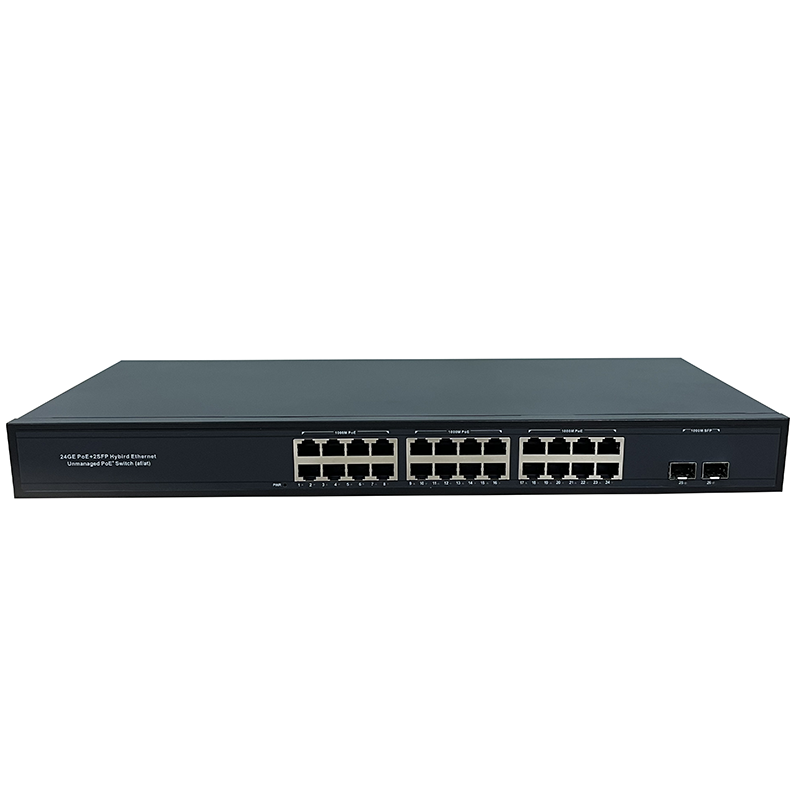

24 Gigabit POE+2 gigabit SFP port switch（主图）#

Specification

Chip scheme		RTL8382L+2RTL8218D+3 RTL8231
Standards / protocols		IEEE 802.1Q , IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af/at
Network media		10B ASE-T: Unshielded 3,4,5 twisted pair (100m) 100B ASE-TX / 100B ASE-T: Unshielding Class 5, over 5 (maximum 100m) 1000B ASE-TX / 1000B ASE-T: twisted pair above class 6 (100m max)
joggle		2410 / 100M / 1000M RJ45 ports (Auto Negotiation / Auto MDI / MDIX) 2 SFP 10M / 100M / 1000Mbps UP LINK ports
cascade		The UP-LINK ports only
Forward mode		store-and-forward
The MAC address is null volume		8K
exchange capacity		52Gbps
Package forwarding rate		38.688Mpps
Package cache		4.1Mbits
Giant frame		9216-byte
pilot lamp	Each	Power. System (Power: red light) The status of the indicator light is: red
	Each port	Link / Activity (Link / Act: green) access the signal status: orange when the network and POE are connected at the same time; red with POE without network, green for network without POE.
source		AC: 100-240V 50 / 60Hz internal DC: 52V, 400W
Power pin		1 / 2 (+), 3 / 6 (-) (POE ports only)
The POE port has the output power		The maximum single-port output is 30W
Speed limit function		Infinite speed
quiescent dissipation		Max.: 6.984W (220V / 50Hz)
service environment		Operating temperature: -10℃ ~ 70℃ (32 ℉ ~127 ℉) Storage temperature: -40℃ ~85℃ (-97 ℉ ~142 ℉) Working humidity: 10%~90% without condensation Storage humidity: 5%~95% condensation
Customized service operating system profile dimensions (LWH) housing material

		Standard Hardware Case


Case size		44219350mm
