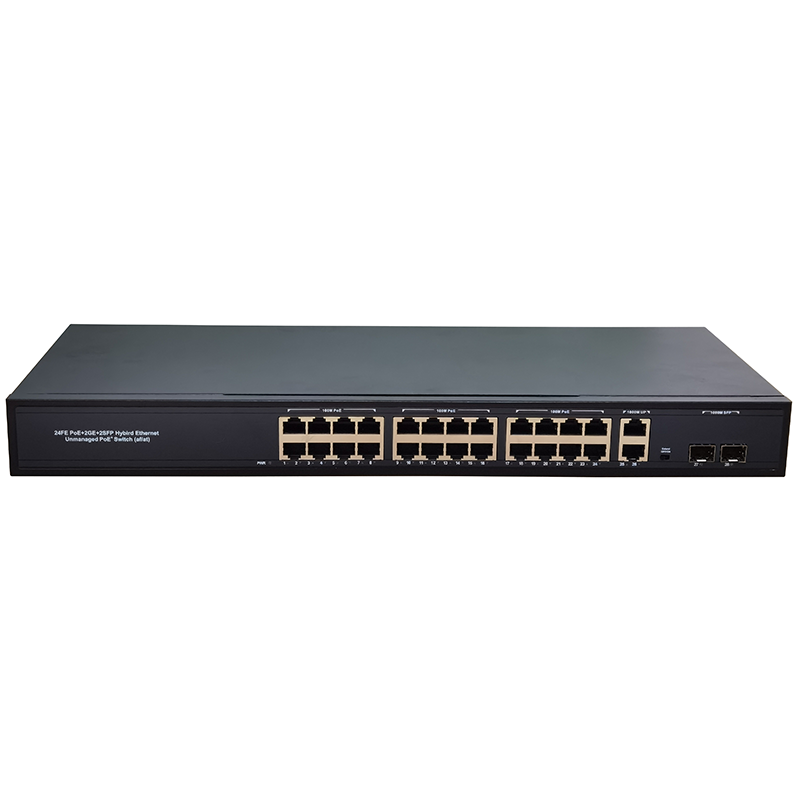

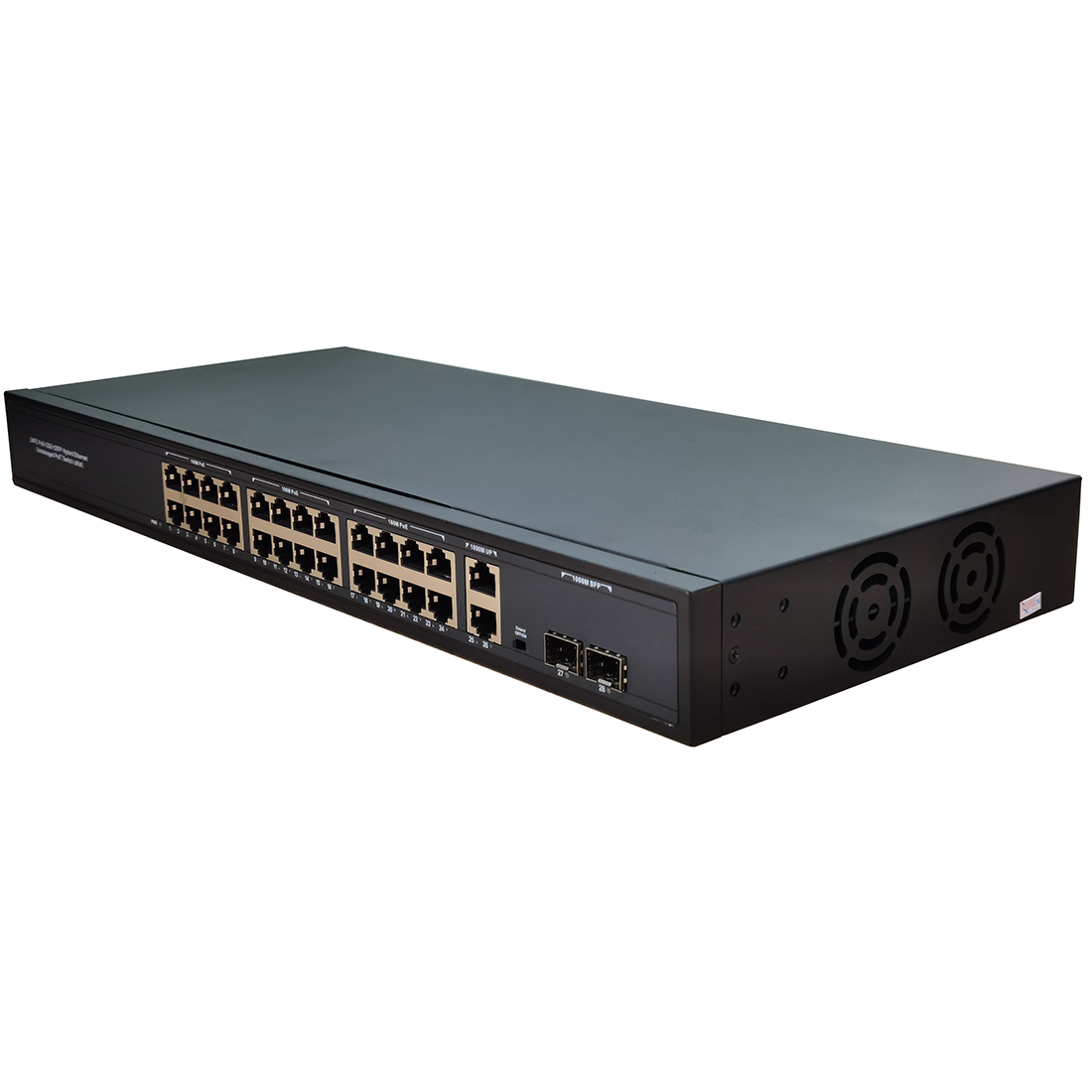

24 100M POE 2GE UP-LINK 2 gigabit SFP Port Switch
Overview
24 + 2 + 2Port Gigabit POE switch This is a high performance, low power consumption of 100 megabytes of Ethernet POE switch, is the primary choice of small LAN group. It offers 24*10 / 100Mbp s RJ45 port ports with 2*10 / 100M / 1000M RJ45 ports and 2*10 / 100M / 1000M SFP that can be used to connect upstream devices with higher bandwidth. Store-forwarding technology is adopted to ensure that the bandwidth is effectively allocated to each port. Fully connected to a working group or server for easy plug and play, this flexible blocking-free architecture can not be limited by bandwidth and media networks. The switch supports full duplex working mode, each switching port supports adaptive function, the port adopts storage and forwarding mode, the product performance is superior, simple to use, convenient and intuitive, providing an ideal networking solution for working group users or small LAN.
Feature
◆ Support for the IEEE 802.1Q VLAN
◆ Full and half duplex operation using IEEE 802.3X x flow control and reverse pressure
◆ Support 9216 bytes giant packet length forwarding on wire speed
◆ Supports the 96-entry ACL rules
◆ Support for IEEE802.3 af / at
◆ Support for IVL, SVL, and and IVL / SVL
◆ Supports the IEEE 802.1x access control protocol
◆ Support for IEEE 802.3az EEE (Energy-Efficient Ethernet)
◆ Supports a 25M clock, and the RFC MIB counter
Specification
|
Chip scheme |
RTL8367S+3*JL5108 | |
|
Standards / Protocols |
IEEE 802.1Q , IEEE 802.1x,IEEE 802.3ad，IEEE802.3 af/at | |
|
Network Media |
10B ASE-T: Unshielded Class 3,4,5 twisted pair (max. 100m)
100B ASE-TX / 100B ASE-T: Unshielding Class 5, over 5 (maximum 100m) 1000B ASE-TX / 1000B ASE-T: twisted pair above class 6 (100m maximum) |
|
|
Joggle |
24*10 / 100M RJ45 ports (Auto Negotiation / Auto MDI / MDIX)
2*10 / 100M / 1000M RJ45 ports (Auto Negotiation / Auto MDI / MDIX) 1*10 / 100M / 1000 M SFP |
|
|
Cascade |
The UP-LINK port is any port | |
|
Forward mode |
store-and-forward | |
|
The MAC Address is null Volume |
2K | |
|
Exchange Capacity |
10.8Gbps | |
|
Package Forwarding Rate |
6.845Mpps | |
|
Package Cache |
1.5Mbits | |
|
Giant Frame |
9216-byte | |
|
Pilot Lamp |
Each |
Power. System (Power: red light) The status of the indicator light is: red |
|
|
Each Port |
Link / Activity (Link / Act: green) access the signal status: orange when the network and POE are connected at the same time; red with POE without network, green for network without POE. |
|
Source |
AC: 100-240V 50 / 60Hz Built-in DC52V, 330W | |
|
Power Pin |
(1/2) +,(3/6)- | |
|
The POE Port Has The output power |
30W (single-port MAX) | |
|
Speed limit function |
Speed limit 10M (Downlink port) | |
|
quiescent dissipation |
Maximum: W (220V / 50Hz) | |
|
service environment |
Operating temperature: -10℃ ~ 70℃ (32 ℉ ~127 ℉)
Storage temperature: -40℃ ~85℃ (-97 ℉ ~142 ℉) Working humidity: 10%~90% without condensation Storage humidity: 5%~95% condensation |
|
|
Customized service operating system profile dimensions
|
||
|
(LWH) housing material |
Standard Hardware Case | |
|
Case size |
442*193*50mm | |
Application
This POE switch is widely used in small LANs:Network surveillance, wireless networks, retail and catering venues
Ordering Information
|
Product Name |
Product Model |
Descriptions |
|
24 100M POE+2GE UP-LINK+2 gigabit SFP port switch
|
CT-24FEP+2GE+2SFP |
24*10/100M POE port; 2*10/100/1000M UP LINK ；2*10/100/1000M SFP port; external power adapter
|
