Overview
● 2.5GE+1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
● 2.5GE+1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 2.5GE+1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
● 2.5GE+1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 2.5GE+1GE ONU is designed by Realtek chipset 9601D.
Product Feature And Model List
|
ONU Model |
CX01020R01D |
CX00020R01D |
|
|
|
Feature |
2.5GE+1GE CATV |
2.5GE+1GE
|
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports SFU and HGU of EPON CTC 3.0 standard.
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of vlan configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and maintenance.
> Support Route PPPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy.
> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| Pon interface |
1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
| LAN interface |
1x10/100/1000M/2500Mbps auto adaptive Ethernet interfaces Full/Half, 1x10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
| LED |
6 LED, For Status of POWER, LOS, PON, LAN1, LAN2 |
| Push-Button |
2, for Function of Power on/off, Reset |
| Operating condition |
Temperature : 0℃～50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<3W |
| Net Weight |
<0.2kg |
Panel Lights And Lntroduction
|
Pilot |
Status |
Description |
|
POWER |
On | The device is powered up. |
| Off | The device is powered down. | |
|
LOS |
Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
|
PON |
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
LAN |
On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
●Typical Service：Broadband Internet access, IPTV, VOD and Video Surveillance

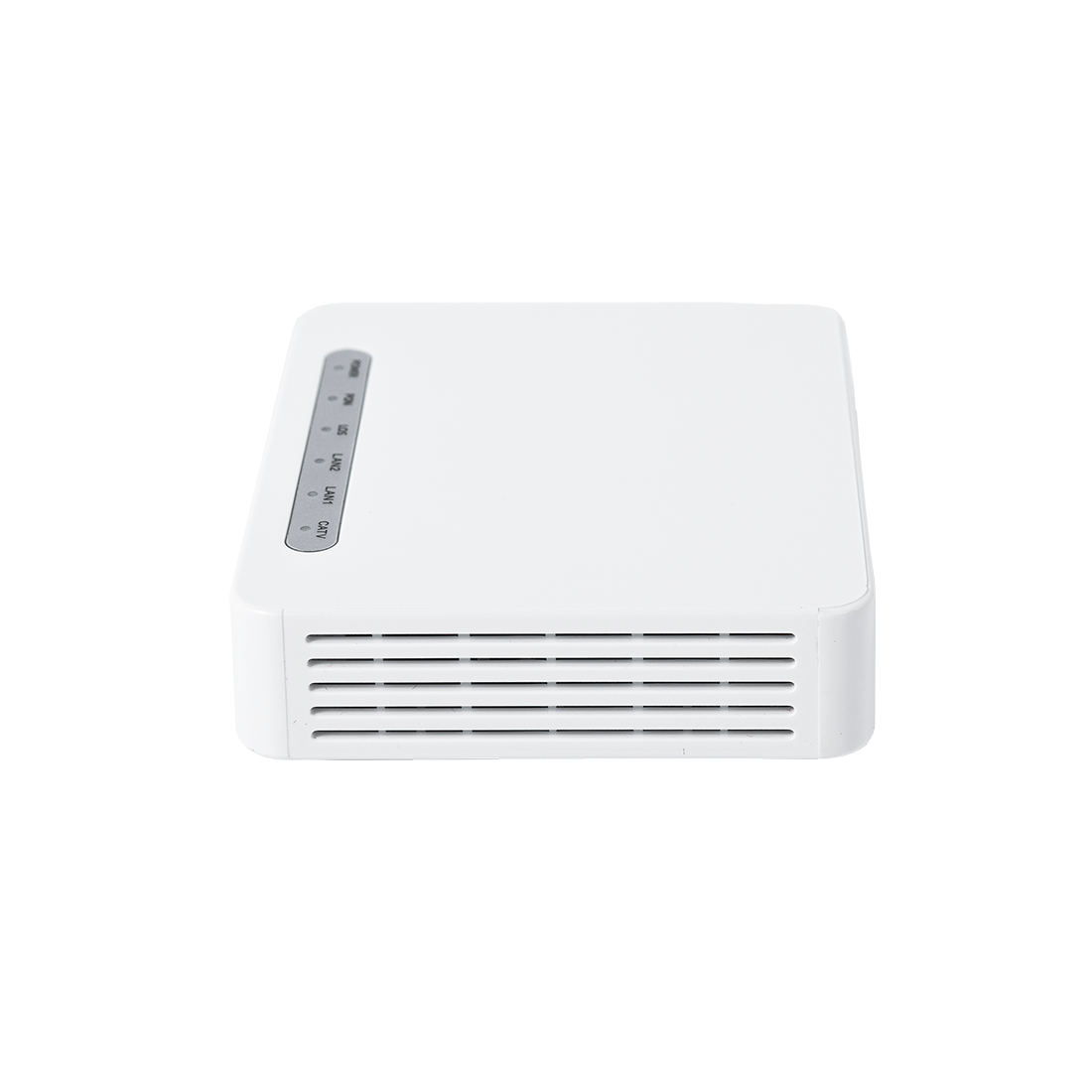

Product Picture
FAQ
Q1. Can XPON ONU automatically switch between EPON and GPON modes when it is connected to different types of OLTs?
A: Yes, XPON ONU supports dual mode, which can seamlessly switch between EPON or GPON mode according to the type of OLT connected.
Q2. Do the SFU and HGU of XPON ONU comply with China Telecom EPON CTC 3.0 standard?
A: Yes, XPON ONU meets the requirements of China Telecom EPON CTC 3.0 standard for SFU (Single Family Unit) and HGU (Home Gateway Unit) applications.
Q3. Is XPON ONU compatible with XGSPON environment?
A: Yes, XPON ONU is compatible with XGSPON environment for high speed data transmission and enhanced network function.
Q4. What additional functions does XPON ONU provide?
A: XPON ONU provides various additional functions, such as OMCI control, OAM (operation, administration and maintenance), multi-brand OLT management, TR069, TR369, TR098 protocol, NAT (Network Address Translation), firewall function, high reliability, convenient Management, flexible configuration, and high-quality service ensure an excellent user experience.
